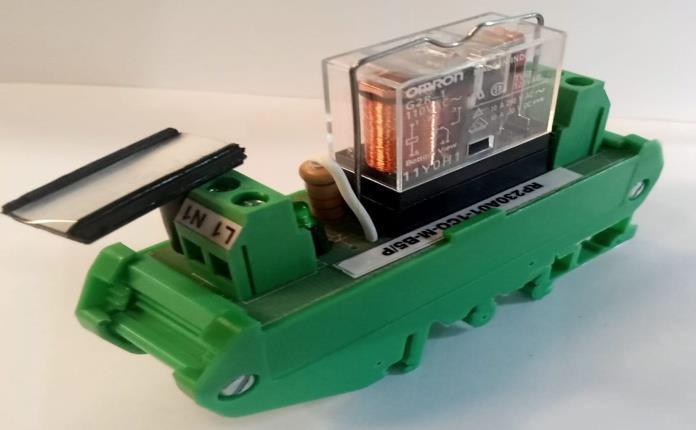

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 1,00,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 20.2 K Ohms +/- 10%. Coil Voltage : 230 V AC Input Current/ Channel : 12 mA per channel PCB Dimension : 26 mm X 72 mm. Mechanical Dimensions : 30 mm X 90 mm X 70 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-2, Electro-mechanical Packaging Details - In corrugated box with bubble sheet.

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 5A at 30V DC and 250V AC for resistive load. Coil Resistance : 20.20 K Ohms + 10%. Coil Voltage : 230 V AC Input Current/ Channel : 12 mA per channel Mechanical Dimensions : 33 mm X 78 mm X 66 mm

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 10A at 30V DC and 250V AC for resistive load. Coil Resistance : 26,850 Ohms + 10%. Coil Voltage : 230 V AC Input Current/ Channel : 9 mA per channel Mechanical Dimensions : 24 mm X 78 mm X 53 mm

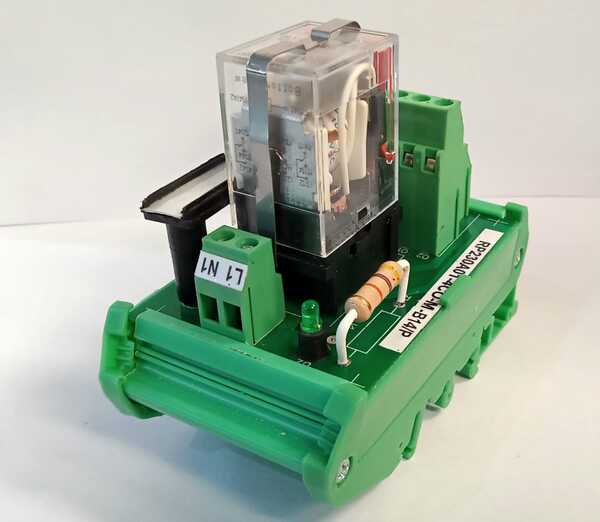

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature: 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity: 5 to 95% RH Relay ON Indication: Green Color LED Relay Protection Method: NA Designation: Designation plate screwed to the PCB for labeling purpose

No of Relay Channel: 1 Channel. Rating of Contacts: 3 Amp at 24 V DC & 220 V AC for Resistive load. Coil Resistance: 18,790 Ohms +/-10%. Coil Voltage: 230 V AC. Relay Socket: Rating- 5 A, 250 V AC. Operating Voltage: 230 V AC ±10%. Input Current/ Channel: 13 mA at 230 Volt AC Terminals: Screw type. Conductor size: 0.25 -2.5 sq.mm flexible. Relay Make / Manufacturer: OMRON. Relay Type: Electro-mechanical, MY4 Contact Type: 4 Change Over.

Product Name: Relay Module Operating Temperature : 0 to 50 degree Celsius. Storage Temperature : 10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH. Relay ON Indication : Green color LED. Relay Protection Method : Freewheeling Diode Designation :Designation plate screwed to the PCB for labeling purpose. Rating of Contacts : 5 Amp at 24 V DC & 230 V AC for Resistive load. Coil Resistance : 662 Ohms. Conductor size : 0.25 to 2.5 sq.mm flexible. Relay Make / Manufacturer : OMRON

Product Name: Relay Module Product Code: RP24D04-2CO- M-B8/P No of Relay Channel : 04 Channel Rating of Contacts : 8 Amp at 30 V DC & 250 V AC for Resistive load Coil Resistance : 2,304 Ohms +/-10% Coil Voltage : 24 V DC Relay socket : 5 A, 250 V AC Relay Make / Manufacturer : OMRON. Relay Type : Electro-mechanical, G2RL-2 Contact Type : 2 Change Over. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : 10 to 60 degree Celsius Relative Humidity : 5 to 95% RH Relay ON Indication : Green Color Led Relay Protection Method : Freewheeling Diode

Product Name: Relay Module Product No: RP230A08-1CO-M-B5-P No of Relay Channel : 08 Channel. Rating of Contacts : 5 Amp at 30 V DC & 250 V AC for Resistive load. Coil Resistance : 20.20 K Ohms +/-10%.Coil Voltage : 230 V AC. Relay Socket : 5 A, 250 V AC. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : 10 to 60 degree Celsius Relative Humidity : 5 to 95% RH Relay ON Indication : Green Color LedRelay Protection Method : Freewheeling DiodeDesignation : Designation plate screwed to the PCB for labelingpurpose

Product Name:- Relay Module Type No:- RP24DO1-2CO-M-B8-P No. of Relay:- 01 Coil Voltage:- 24 Volt DC Contact Configuration:- 02 C/O Relay module with socket.
