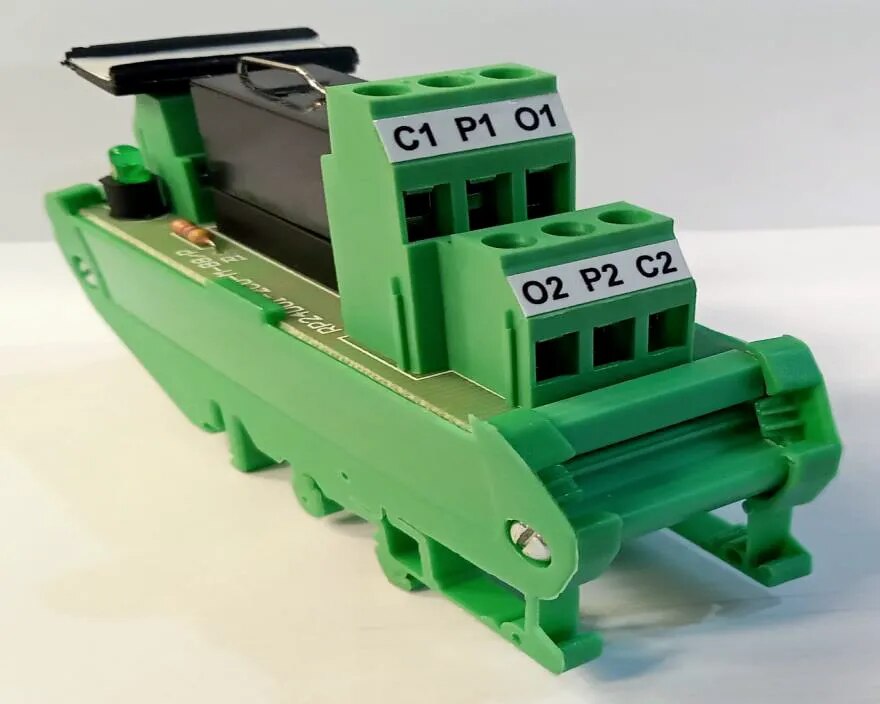

Relay Interfacing Module RP24DO1-2CO-M-B8-P

Description

Specifications

Application	Industrial
No of Relay Channel	01
Coil Resistance	1,440 Ohms + 10%.
Coil Voltage	24 V DC
Input Current/ Channel	17 mA per channel
Mechanical Dimensions	30 mm X 90 mm X 68 mm
Terminals	Screw type
Conductor size	0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer	OMRON
Relay Type	G2RL-2, Electro-mechanical
Contact Type	2 Change Over
