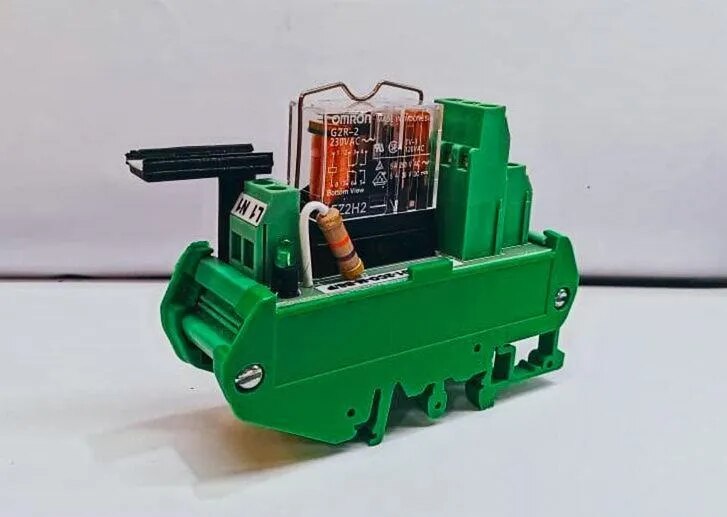

Relay Interfacing Module RP230A01-2CO-M-B8/P

Din Rail Mounting

Solderable Relay

10,000,000 Mechanical operations minimum.

1,00,000 Electrical operations minimum.

Operating Temperature : 0 to 50 degree Celsius

Storage Temperature : -10 to 60 degree Celsius

Relative Humidity : 5 to 85% RH

Relay ON Indication : Green Color LED

Relay Protection Method : Freewheeling Diode

Designation : Designation plate screwed to the PCB for labeling purpose

No of Relay Channel : 1 Channel

Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load.

Coil Resistance : 20.2 K Ohms +/- 10%.

Coil Voltage : 230 V AC

Input Current/ Channel : 12 mA per channel

PCB Dimension : 26 mm X 72 mm.

Mechanical Dimensions : 30 mm X 90 mm X 70 mm

Terminals : Screw type

Conductor size : 0.25 -2.5 sq.mm flexible

Relay Make / Manufacturer: OMRON

Relay Type: G2R-2, Electro-mechanical

Packaging Details - In corrugated box with bubble sheet.
