Products

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum.

Din Rail Mounting Pluggable Relay 1,00,00,000 Mechanical operations minimum. 1,00,000 Electrical operations minimum. Operating Temperature :- 0 to 50 degree Celsius. Storage Temperature : -10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH Relay ON Indication : Green color LED. Relay Protection Method: Freewheeling Diode. Designation : Designation plate screwed to the PCB for labeling purpose.

Length1.52 MTR Packaging TypeBox CableSheilded Cross section0.25 sq. mm ColorGrey JacketPVC Type of Connector D type Dust Cover MaterialPVC with Chrome Plating Country of Origin Made in India

Ordering Type : RP24D08-1CO-M-B5/P-SLM Din Rail Mounting Pluggable Relay

Size- 2.5 Meter Color- Gray At First End- 15 D type female connector At Other End-9 D type male connector Type of cable- Sheilded No of core- 4 Cable Jacket- PVC Made- In India

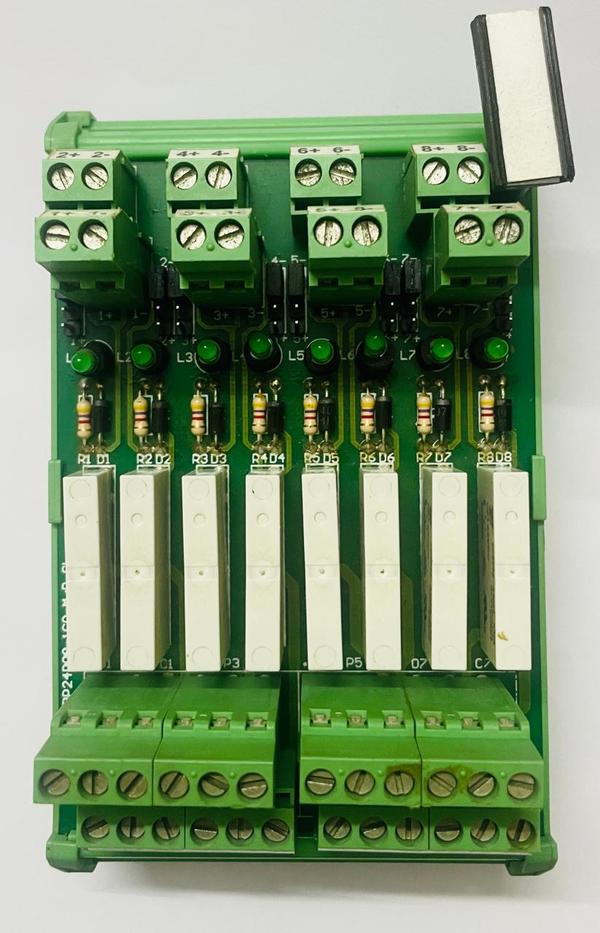

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method: Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 1440 Ohms +/- 10%. Coil Voltage : 24V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 17 mA per channel PCB Dimension : 375 mm X 72 mm. Mechanical Dimensions : 378 mm X 90 mm X 70 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2RL-2, Electro-mechanical

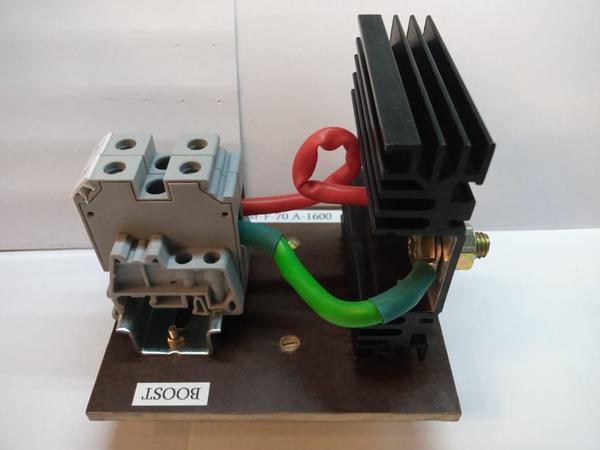

One Input One Output Diode Module Din Rail Mounting

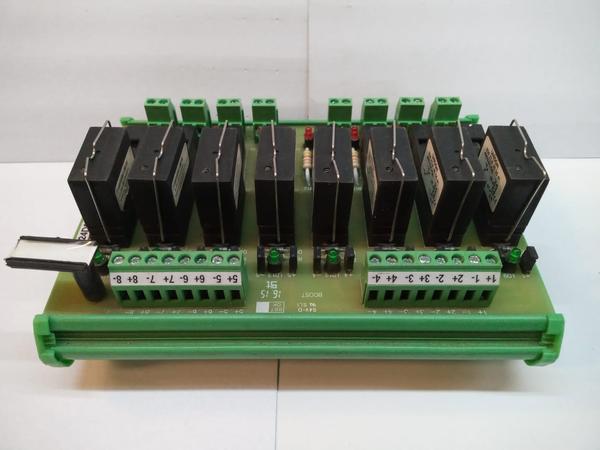

Din Rail Mounting Pluggable Relay Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 85% RH Relay ON Indication: Green Color LED Relay Protection Method: Inbuilt Designation: Designation plate screwed to the PCB for labeling purpose Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Each Fuse in path of pole is provided with red LED indicates Fuse Blown Indication.

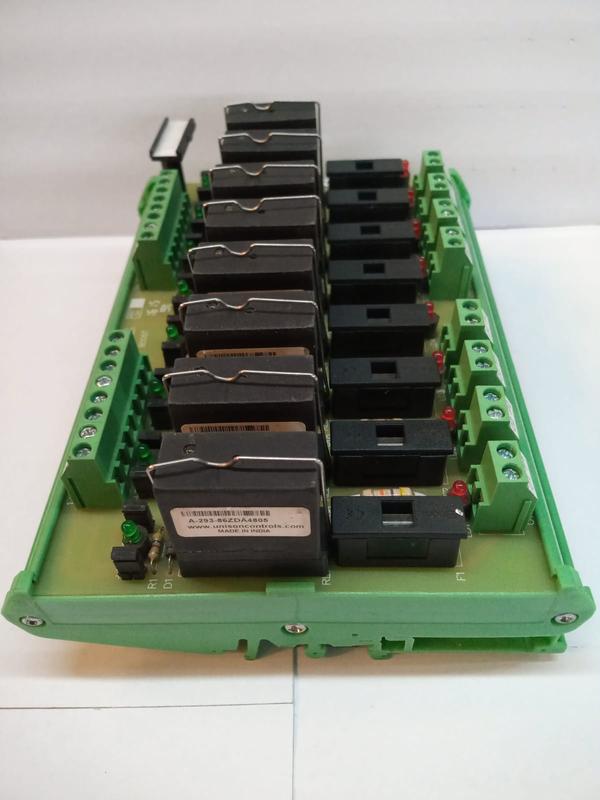

Din Rail Mounting Pluggable Relay Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 85% RH Relay ON Indication: Green Color LED Relay Protection Method: Inbuilt Designation: Designation plate screwed to the PCB for labeling purpose Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Each Fuse in path of pole is provided with red LED indicates Fuse Blown Indication.

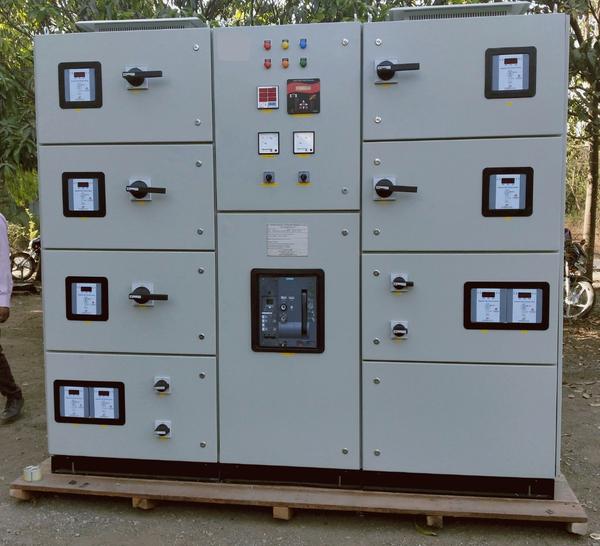

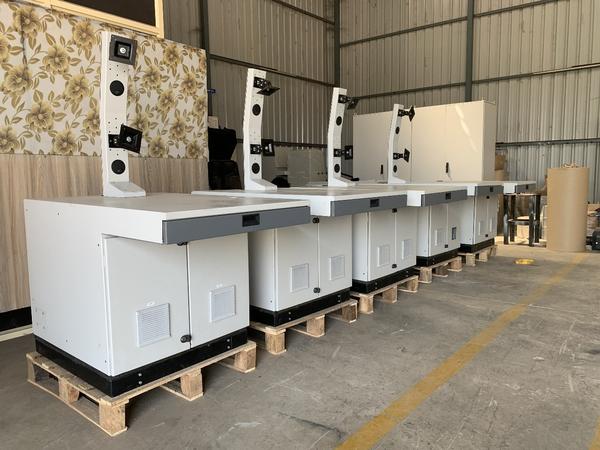

We manufacture all types of control panels like MCC, PCC, PDB, FRP, PLC, RIO, Drive, VFD, Control desk, Control Post, CRP etc. as per customer requirements.

Benefits of Our APFC Panel : • Reduced Energy Costs: Lower electricity bills and reduced energy penalties. • Improved Power Quality: Better voltage stability and reduced harmonics. • Increased Equipment Lifespan: Protection from voltage fluctuations and harmonics. • Compliance with Regulations: Meeting power factor requirements set by electricity providers. • Optimized Power Usage: Efficient use of electrical power.

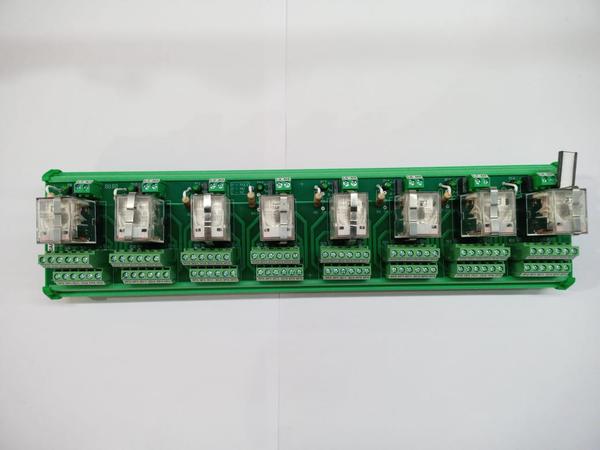

Din Rail Mounting Pluggable Relay 50,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 3 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4430 Ohms +/- 10%. Coil Voltage : 110V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 25 mA per channel PCB Dimension : 354 mm X 72 mm. Mechanical Dimensions : 358 mm X 90 mm X 81 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: MY4, Electro-mechanical
