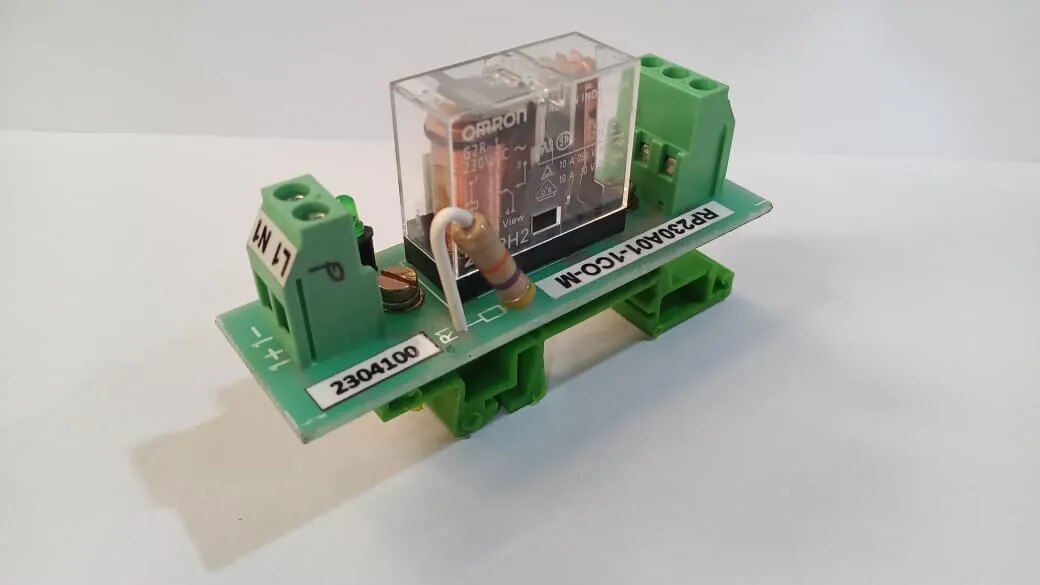

Relay Interfacing Module RP230A01-1CO-M
In stock
Description
Din Rail Mounting
Solderable Relay
10,000,000 Mechanical operations minimum.
100,000 Electrical operations minimum.
Operating Temperature : 0 to 50 degree Celsius
Storage Temperature : -10 to 60 degree Celsius
Relative Humidity : 5 to 85% RH
Relay ON Indication : Green Color LED
Relay Protection Method : NA
Designation : Designation plate screwed to the PCB for labeling purpose
No of Relay Channel : 1 Channel
Rating of Contacts : 10A at 30V DC and 250V AC for resistive load.
Coil Resistance : 26,850 Ohms + 10%.
Coil Voltage : 230 V AC
Input Current/ Channel : 9 mA per channel
Mechanical Dimensions : 24 mm X 78 mm X 53 mm
