Name: Relay Interfacing Module RP24D02-2CO-M-B8/P.(MY2)
Brand: Boost Electronics
Availability: InStock

Chat with us

Relay Interfacing Module by Boost Electronics

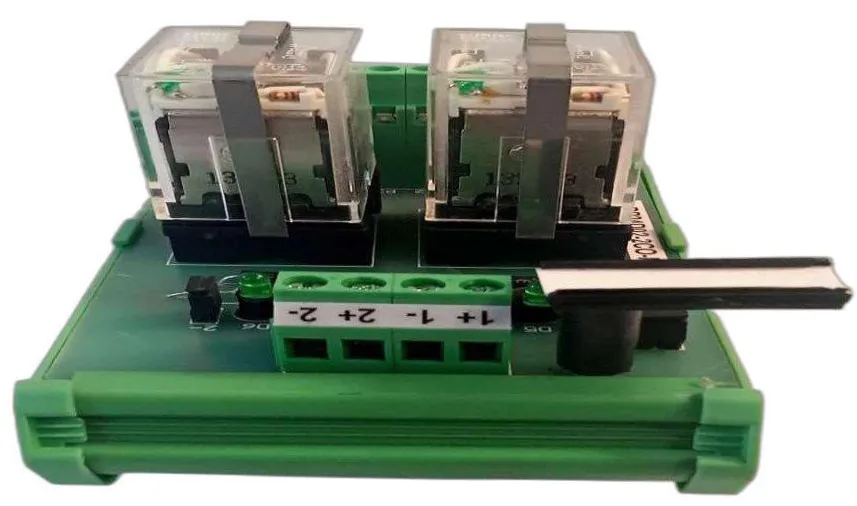

Relay Interfacing Module RP24D02-2CO-M-B8/P.(MY2)

Phone Number

08048036394

Please keep 0 before dialling the number.

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

Product Name: Relay Module Operating Temperature : 0 to 50 degree Celsius. Storage Temperature : 10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH. Relay ON Indication : Green color LED. Relay Protection Method : Freewheeling Diode Designation :Designation plate screwed to the PCB for labeling purpose. Rating of Contacts : 5 Amp at 24 V DC & 230 V AC for Resistive load. Coil Resistance : 662 Ohms. Conductor size : 0.25 to 2.5 sq.mm flexible. Relay Make / Manufacturer : OMRON

Specifications

Model Name/Number	RP24D02-2CO-M-B8/P.(MY2)
Material	PCB- FR4, Glass Epoxy
Relay Type	MY2, Electro-mechanical.
Coil Voltage	24 Volt
Material	PCB- FR4, Glass Epoxy
