field interfacing module

Type Of Interface: D type Female connector at one and terminal block at other side Usage/Application: In motor control machinery, electronics assembly , material handling, in automation industries Weight: Light in weight Brand: Boost Color: Green Condition: New Construction: PCB assembly suitable for DIN Rail mounting comprising of: 1. Interface To Field Side Mechanical Dimension: 75 mm X 32 mm X 30 mm Operating Voltage: 125 VAC Switching Continuous Current: 3.5 Ampere Wire Striping Length: 6 mm Recommended Wire Size: 30-14 AWG Screw Tightening Torque: Maximum 0.4 Nm Country of Origin: Made in India Minimum Order Quantity: 50 Piece

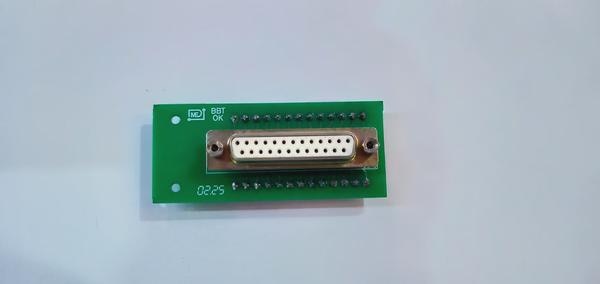

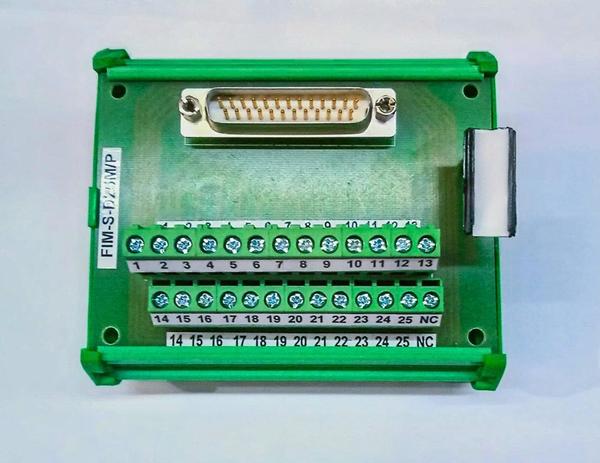

Construction: PCB assembly suitable for DIN Rail mounting comprising of: 1. Interface To Field Side Through: 25 no’s of screw terminals with terminal markers 1 to 25. 2. Interface To Cable Side Through: 1 no. of 25 pin male D connector, Type – 25 Pin Straight Connector: OEN 3. Designation plate screwed to the PCB for labeling purpose.

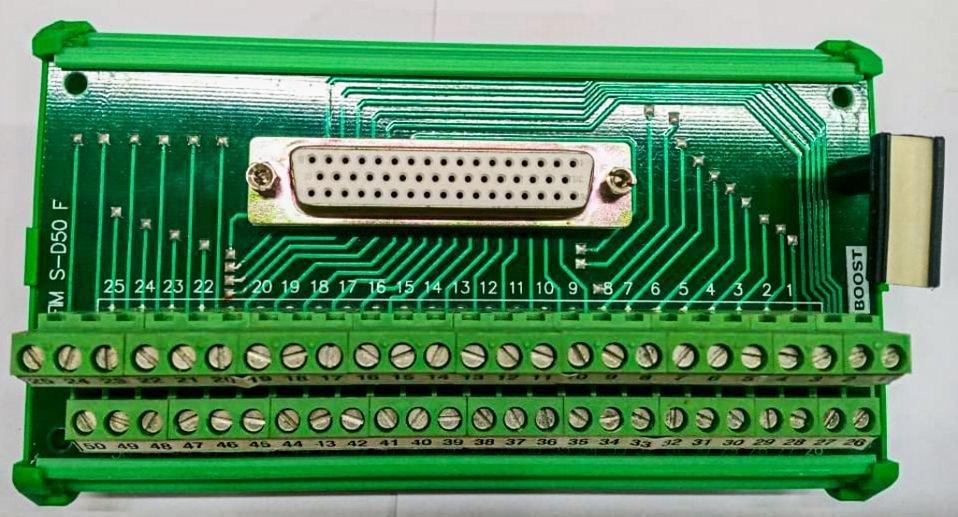

Construction: PCB assembly suitable for DIN Rail mounting comprising of: 1. Interface To Field Side Through: 50 no’s of screw terminals with terminal markers 1 to 50. 2. Interface To Cable Side Through: 1 no. of 50 pin male D connector Type – 50 Pin Straight Connector: OEN 3. Designation plate screwed to the PCB for labeling purpose.

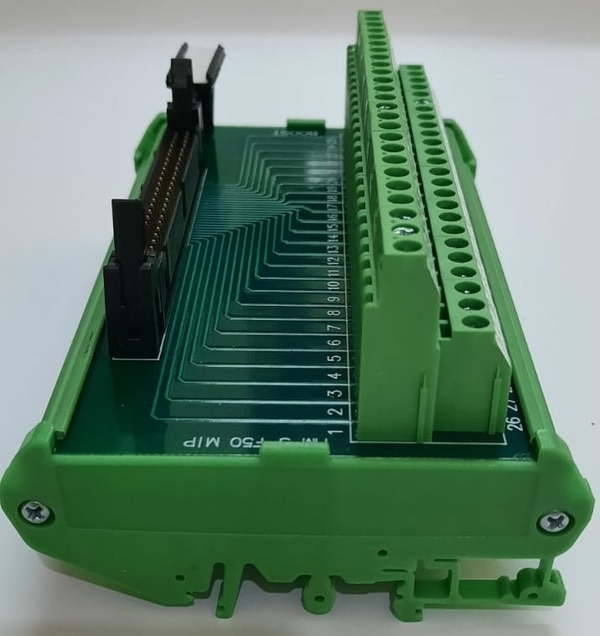

Field Interfacing Module Terminal Connection Field side terminal connection: Screw terminal, 0.25²mm to 2.5²mm conductor System side terminal connection:50 pin male FRC connector Terminal Markings:The terminals shall be marked from 1 to 50 as per the Electrical Layout Drawing Designation: Designation plate screwed to the PCB for labeling Terminals Approvals & Standard:UL US Approval. :UL Canadian Approval. :ROHS COC :CE Approval by UL1. :NO CE Third Party Witness Testing. Ambient Operating Temperature: 0°c to +60°c. Relative Humidity : Max 90%.

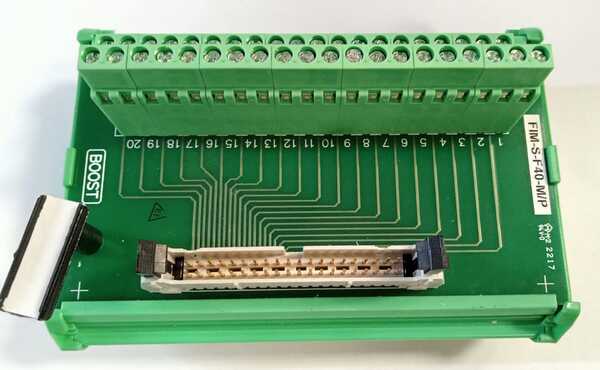

Product Type:- Field interface Module PCB assembly suitable for DIN Rail mounting comprising of: 1. INTERFACE TO FIELD SIDE THROUGH: 40 no’s. of screw terminals with terminal markers 1 to 40. 2. INTERFACE TO CABLE SIDE THROUGH: 1 no. of 40 pin male FRC connector, Type – 40 PIN STRAIGHT CONN. : OEN 3. Designation plate screwed to the PCB for labeling purpose.
