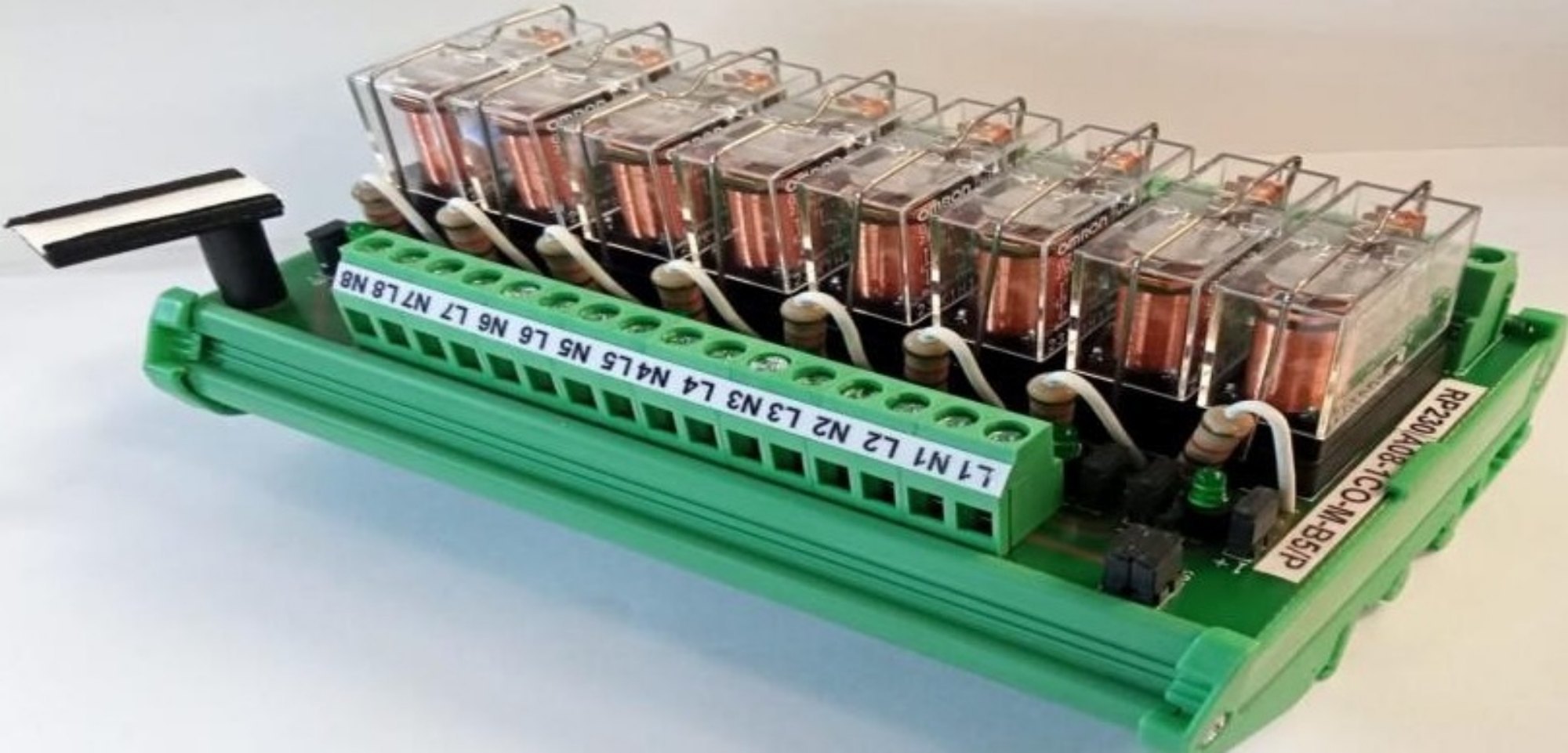

Relay Interfacing Module RP230A08-1CO-M-B5-P

Product Name: Relay Module

Product No: RP230A08-1CO-M-B5-P

No of Relay Channel : 08 Channel.

Rating of Contacts : 5 Amp at 30 V DC & 250 V AC for Resistive load.

Coil Resistance : 20.20 K Ohms +/-10%.Coil Voltage : 230 V AC.

Relay Socket : 5 A, 250 V AC.

Operating Temperature : 0 to 50 degree Celsius

Storage Temperature : 10 to 60 degree Celsius

Relative Humidity : 5 to 95% RH

Relay ON Indication : Green Color LedRelay

Protection Method : Freewheeling

DiodeDesignation : Designation plate screwed to the PCB for labelingpurpose
