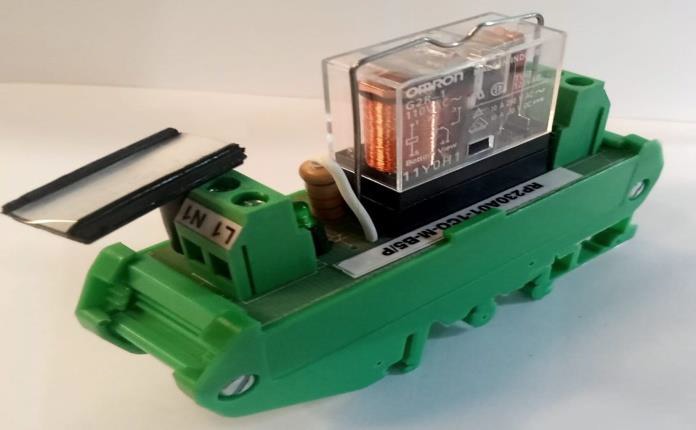

Relay Interfacing Module RP230A01-1CO-M-B5/P
In stock
Description
Din Rail Mounting
Pluggable Relay
10,000,000 Mechanical operations minimum.
100,000 Electrical operations minimum.
Operating Temperature: 0 to 50 degree Celsius
Storage Temperature : -10 to 60 degree Celsius
Relative Humidity: 5 to 95% RH
Relay ON Indication: Green Color LED
Relay Protection Method: NA
Designation: Designation plate screwed to the PCB for labeling purpose
Specifications
| No of Relay Channel | 01 |
|---|---|
| Input Current/ Channel | 9 mA @ 230 V AC |
| Coil Resistance | 26,850 Ohms + 10%. |
| Relay Socket | 12 A at 250 V AC |
| Coil Voltage | 230 V AC |
| Rating of Contacts | 10A at 30V DC and 250V AC for resistive load. |
