16 Channel relay Module, Coil : 230V AC, 1 NO Din Rail Mounting Pluggable Relay 18,000 Mechanical operations minimum. 1,800 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 26,850 Ohms +/- 10%. Coil Voltage : 230 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 9 mA per channel PCB Dimension : 330 mm X 108 mm. Mechanical Dimensions : 334 mm X 128 mm X 60 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 NO Packaging Details - In corrugated box with bubble sheet.

8 Channel relay Module, Coil : 250 V AC, 1 C/O Contact Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 50,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 26850 Ohms +/- 10%. Coil Voltage : 250 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 9 mA per channel PCB Dimension : 131 mm X 72 mm. Mechanical Dimensions : 133 mm X 90 mm X 86 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 Change Over Packaging Details - In corrugated box with bubble sheet.

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 01 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 260 Ohms +/- 10%. Coil Voltage : 24 V AC +/- 10%. Input Current/ Channel : 92 mA per channel PCB Dimension : 24 mm X 78 mm. Mechanical Dimensions : 24 mm X 78 mm X 57 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 Change Over Packaging Details - In corrugated box with bubble sheet.

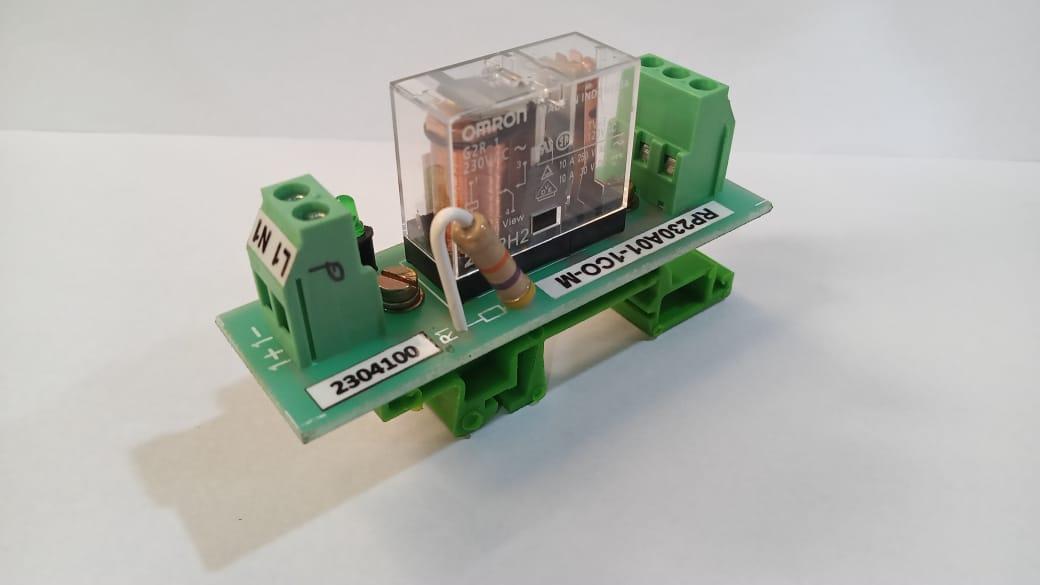

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 1,00,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 20.2 K Ohms +/- 10%. Coil Voltage : 230 V AC Input Current/ Channel : 12 mA per channel PCB Dimension : 26 mm X 72 mm. Mechanical Dimensions : 30 mm X 90 mm X 70 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-2, Electro-mechanical Packaging Details - In corrugated box with bubble sheet.

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 4 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 26,850 Ohms +/- 10%. Coil Voltage : 230 V DC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 9 mA per channel PCB Dimension : 80 mm X 72 mm. Mechanical Dimensions : 83 mm X 90 mm X 69 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 Change Over Packaging Details - In corrugated box with bubble sheet.

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 10A at 30V DC and 250V AC for resistive load. Coil Resistance : 26,850 Ohms + 10%. Coil Voltage : 230 V AC Input Current/ Channel : 9 mA per channel Mechanical Dimensions : 24 mm X 78 mm X 53 mm

Length1.52 MTR Packaging TypeBox CableSheilded Cross section0.25 sq. mm ColorGrey JacketPVC Type of Connector D type Dust Cover MaterialPVC with Chrome Plating Country of Origin Made in India

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method: Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 1440 Ohms +/- 10%. Coil Voltage : 24V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 17 mA per channel PCB Dimension : 375 mm X 72 mm. Mechanical Dimensions : 378 mm X 90 mm X 70 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2RL-2, Electro-mechanical

Din Rail Mounting Pluggable Relay 50,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 3 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4430 Ohms +/- 10%. Coil Voltage : 110V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 25 mA per channel PCB Dimension : 354 mm X 72 mm. Mechanical Dimensions : 358 mm X 90 mm X 81 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: MY4, Electro-mechanical
