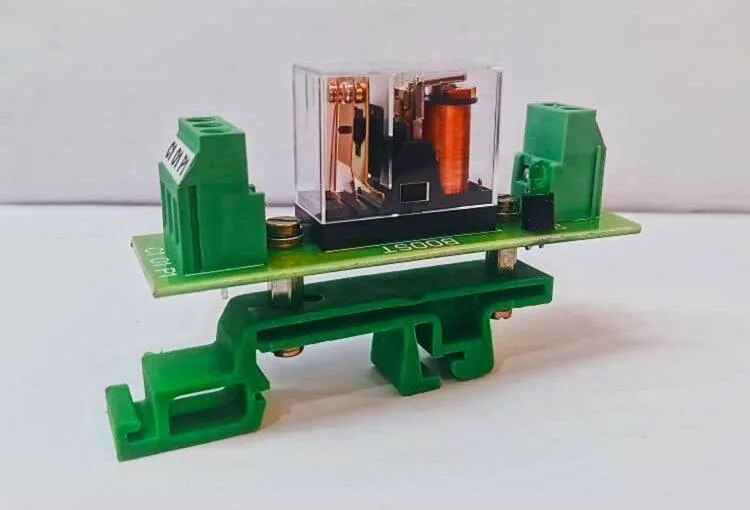

Relay Interfacing Module RP24A01-1CO-M

Din Rail Mounting

Solderable Relay

10,000,000 Mechanical operations minimum.

100,000 Electrical operations minimum.

Operating Temperature : 0 to 50 degree Celsius

Storage Temperature : -10 to 60 degree Celsius

Relative Humidity : 5 to 85% RH

Relay ON Indication : Green Color LED

Designation : Designation plate screwed to the PCB for labeling purpose

No of Relay Channel : 01 Channel

Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load.

Coil Resistance : 260 Ohms +/- 10%.

Coil Voltage : 24 V AC +/- 10%.

Input Current/ Channel : 92 mA per channel

PCB Dimension : 24 mm X 78 mm.

Mechanical Dimensions : 24 mm X 78 mm X 57 mm

Terminals : Screw type

Conductor size : 0.25 -2.5 sq.mm flexible

Relay Make / Manufacturer: OMRON

Relay Type: G2R-1, Electro-mechanical

Contact Type: 1 Change Over

Packaging Details - In corrugated box with bubble sheet.
