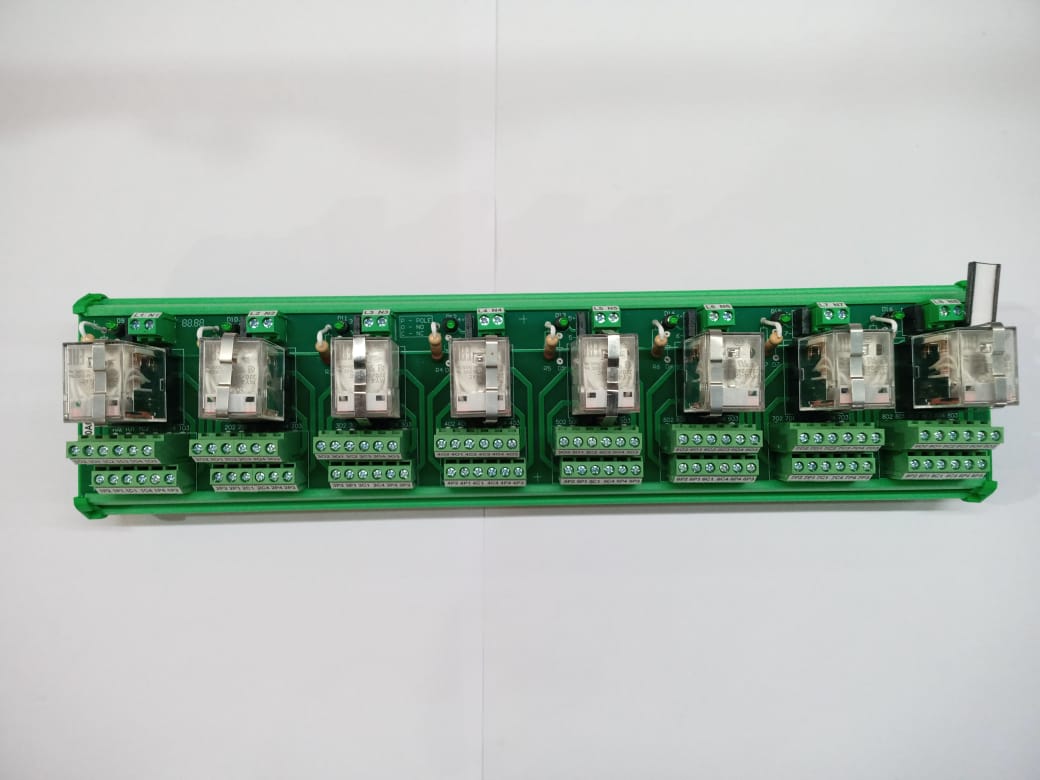

Din Rail Mounting
Pluggable Relay
50,000,000 Mechanical operations minimum.
200,000 Electrical operations minimum.
Operating Temperature : 0 to 50 degree Celsius
Storage Temperature : -10 to 60 degree Celsius
Relative Humidity : 5 to 85% RH
Relay ON Indication : Green Color LED
Designation : Designation plate screwed to the PCB for labeling purpose
No of Relay Channel : 8 Channel
Rating of Contacts : 3 A at 30V DC and 250V AC for resistive load.
Coil Resistance : 4430 Ohms +/- 10%.
Coil Voltage : 110V AC
Relay Socket : 5 A, 250 V AC
Input Current/ Channel : 25 mA per channel
PCB Dimension : 354 mm X 72 mm.
Mechanical Dimensions : 358 mm X 90 mm X 81 mm
Terminals : Screw type
Conductor size : 0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer: OMRON
Relay Type: MY4, Electro-mechanical
