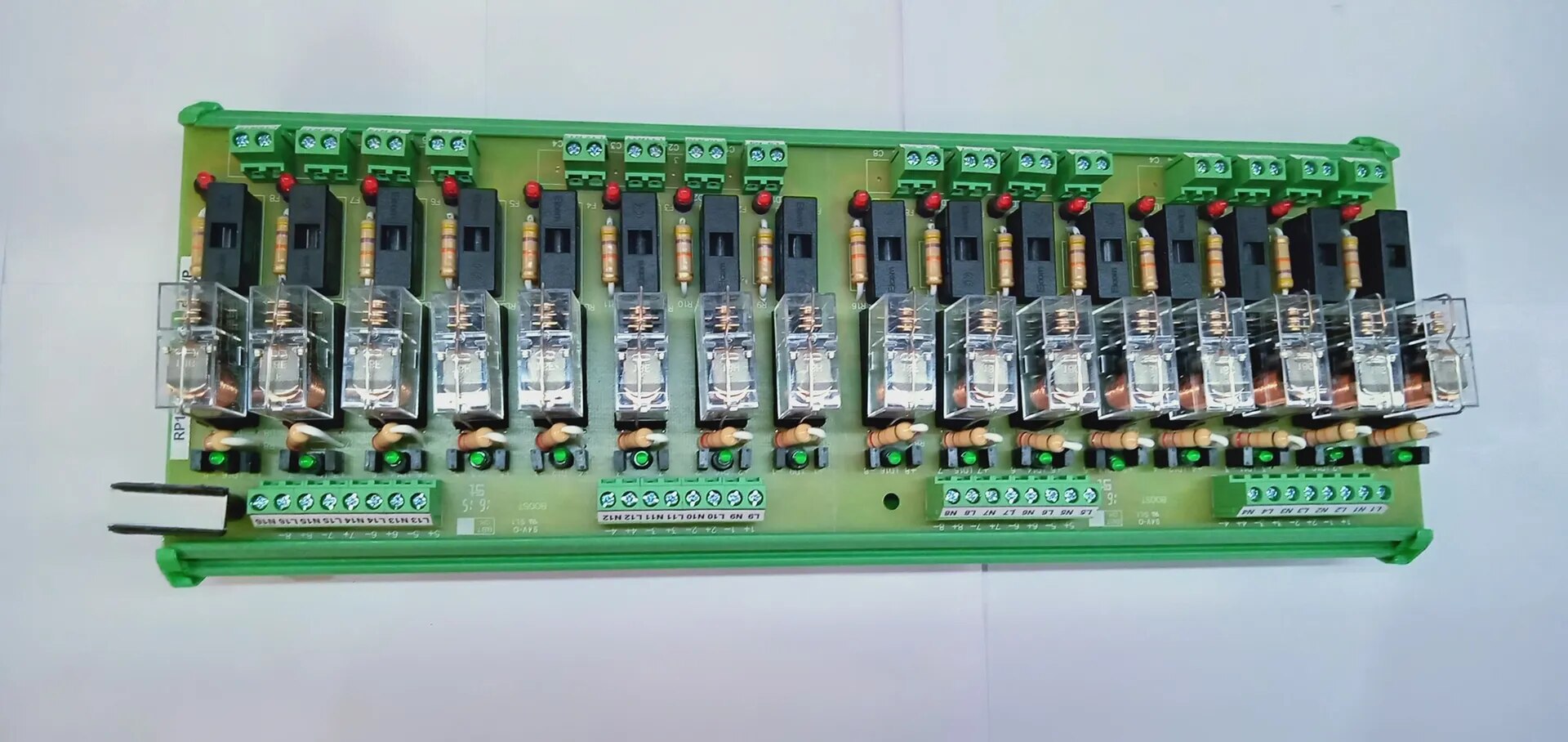

16 Channel relay Module, Coil : 230V AC, 1 NO
Din Rail Mounting
Pluggable Relay
18,000 Mechanical operations minimum.
1,800 Electrical operations minimum.
Operating Temperature : 0 to 50 degree Celsius
Storage Temperature : -10 to 60 degree Celsius
Relative Humidity : 5 to 85% RH
Relay ON Indication : Green Color LED
Relay Protection Method : NA
Designation : Designation plate screwed to the PCB for labeling purpose
No of Relay Channel : 16 Channel
Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load.
Coil Resistance : 26,850 Ohms +/- 10%.
Coil Voltage : 230 V AC
Relay Socket : 5 A, 250 V AC
Input Current/ Channel : 9 mA per channel
PCB Dimension : 330 mm X 108 mm.
Mechanical Dimensions : 334 mm X 128 mm X 60 mm
Terminals : Screw type
Conductor size : 0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer: OMRON
Relay Type: G2R-1, Electro-mechanical
Contact Type: 1 NO
Packaging Details - In corrugated box with bubble sheet.
