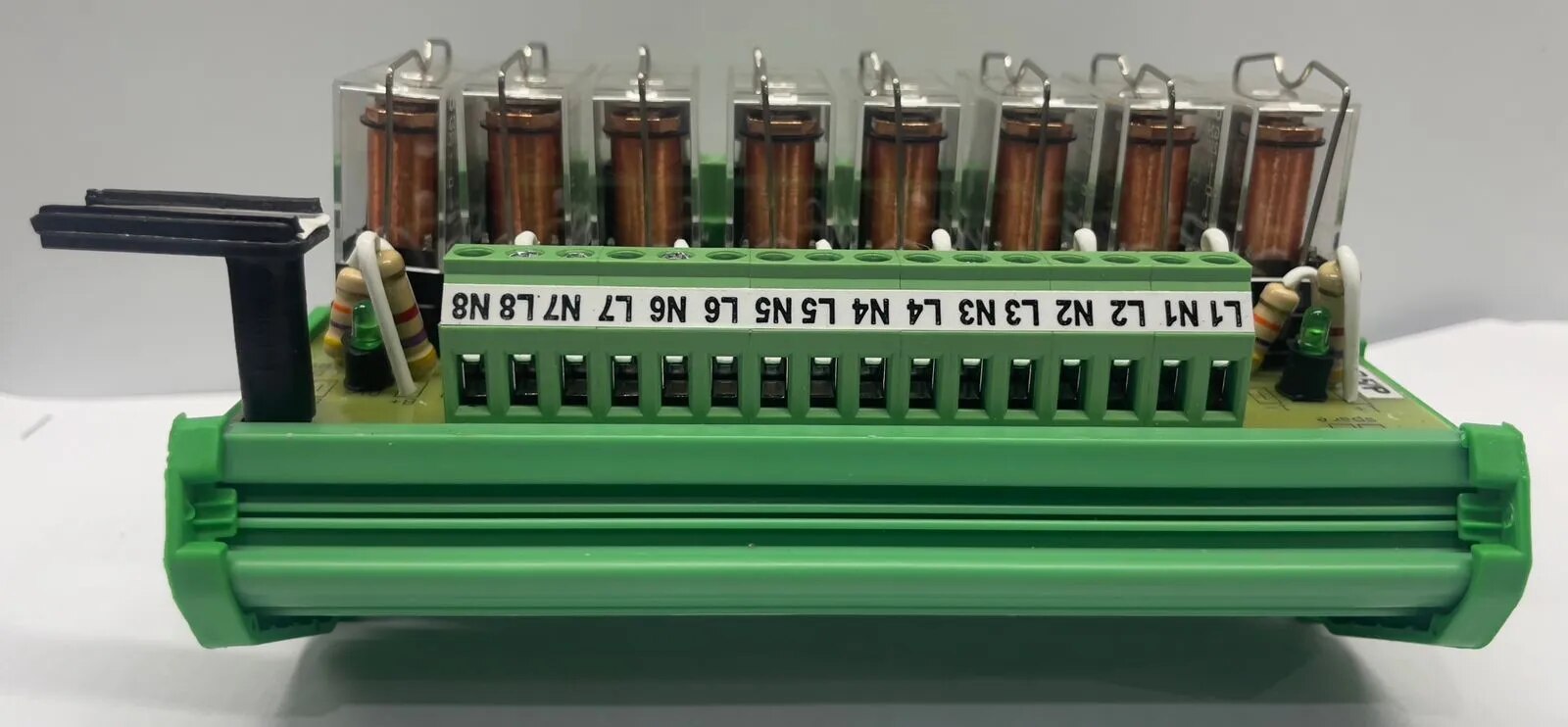

8 Channel relay Module, Coil : 250 V AC, 1 C/O Contact
Din Rail Mounting
Solderable Relay
10,000,000 Mechanical operations minimum.
50,000 Electrical operations minimum.
Operating Temperature : 0 to 50 degree Celsius
Storage Temperature : -10 to 60 degree Celsius
Relative Humidity : 5 to 85% RH
Relay ON Indication : Green Color LED
Designation : Designation plate screwed to the PCB for labeling purpose
No of Relay Channel : 8 Channel
Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load.
Coil Resistance : 26850 Ohms +/- 10%.
Coil Voltage : 250 V AC
Relay Socket : 5 A, 250 V AC
Input Current/ Channel : 9 mA per channel
PCB Dimension : 131 mm X 72 mm.
Mechanical Dimensions : 133 mm X 90 mm X 86 mm
Terminals : Screw type
Conductor size : 0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer: OMRON
Relay Type: G2R-1, Electro-mechanical
Contact Type: 1 Change Over
Packaging Details - In corrugated box with bubble sheet.
