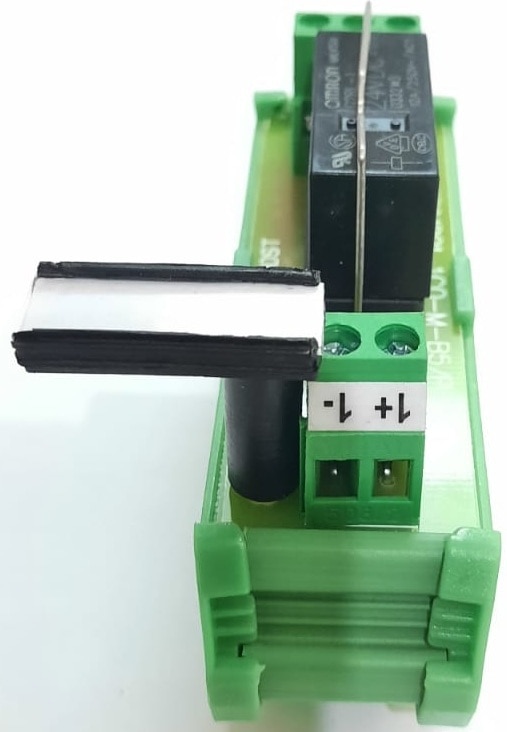

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 01 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 260 Ohms +/- 10%. Coil Voltage : 24 V AC +/- 10%. Input Current/ Channel : 92 mA per channel PCB Dimension : 24 mm X 78 mm. Mechanical Dimensions : 24 mm X 78 mm X 57 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 Change Over Packaging Details - In corrugated box with bubble sheet.

Product Name: Relay Module Operating Temperature : 0 to 50 degree Celsius. Storage Temperature : 10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH. Relay ON Indication : Green color LED. Relay Protection Method : Freewheeling Diode Designation :Designation plate screwed to the PCB for labeling purpose. Rating of Contacts : 5 Amp at 24 V DC & 230 V AC for Resistive load. Coil Resistance : 662 Ohms. Conductor size : 0.25 to 2.5 sq.mm flexible. Relay Make / Manufacturer : OMRON

Product Name: Relay Module Product Code: RP24D04-2CO- M-B8/P No of Relay Channel : 04 Channel Rating of Contacts : 8 Amp at 30 V DC & 250 V AC for Resistive load Coil Resistance : 2,304 Ohms +/-10% Coil Voltage : 24 V DC Relay socket : 5 A, 250 V AC Relay Make / Manufacturer : OMRON. Relay Type : Electro-mechanical, G2RL-2 Contact Type : 2 Change Over. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : 10 to 60 degree Celsius Relative Humidity : 5 to 95% RH Relay ON Indication : Green Color Led Relay Protection Method : Freewheeling Diode

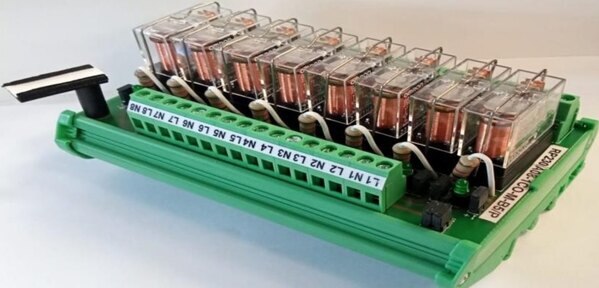

Product Name: Relay Module Product No: RP230A08-1CO-M-B5-P No of Relay Channel : 08 Channel. Rating of Contacts : 5 Amp at 30 V DC & 250 V AC for Resistive load. Coil Resistance : 20.20 K Ohms +/-10%.Coil Voltage : 230 V AC. Relay Socket : 5 A, 250 V AC. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : 10 to 60 degree Celsius Relative Humidity : 5 to 95% RH Relay ON Indication : Green Color LedRelay Protection Method : Freewheeling DiodeDesignation : Designation plate screwed to the PCB for labelingpurpose

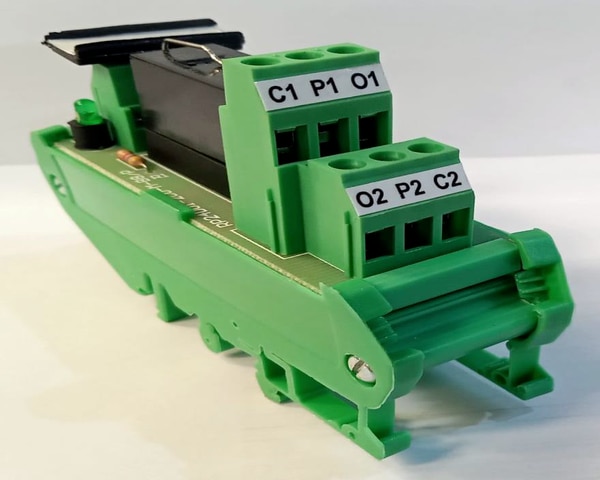

Product Name:- Relay Module Type No:- RP24DO1-2CO-M-B8-P No. of Relay:- 01 Coil Voltage:- 24 Volt DC Contact Configuration:- 02 C/O Relay module with socket.

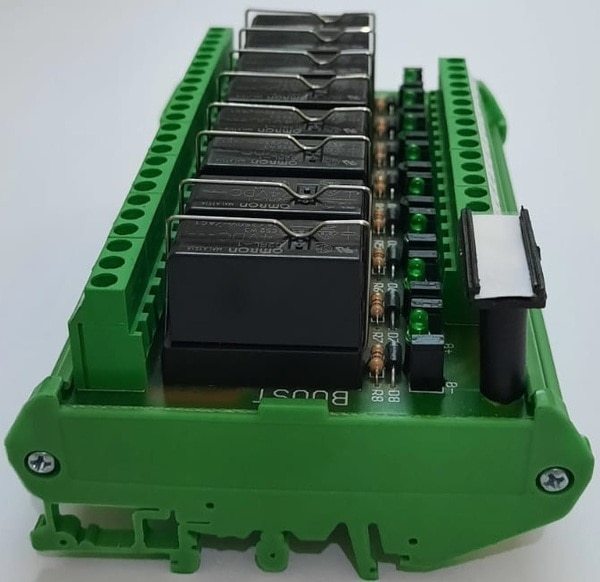

Product Name:- Relay Module Type No:- RP24D08-1CO-M-B5-P No. of Relay:- 08 Coil Voltage:- 24 Volt DC Contact Configuration:- 01 C/O Relay module with socket.

Product Name:- Relay Module Type No:- RP24DO1-2CO-M-B8-P No. of Relay:- 01 Coil Voltage:- 24 Volt DC Contact Configuration:- 02 C/O Relay module with socket.

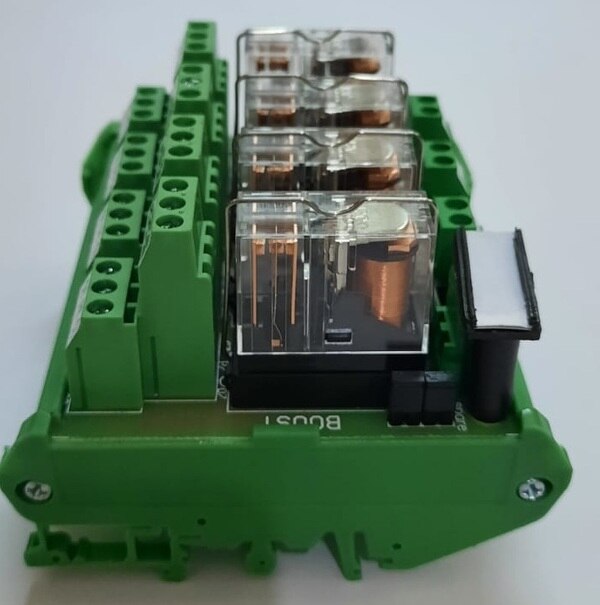

Product Name:- Relay Module Type No:- RP230A04-2CO-M-B8-P No. of Relay:- 04 Coil Voltage:- 230 Volt AC Contact Configuration:- 02 C/O Relay module with socket.

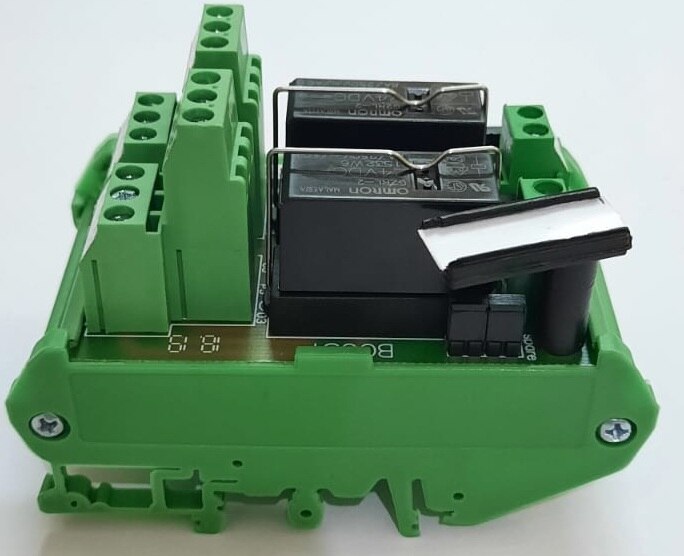

Product Name:- Relay Module Type No:- RP24D02-2CO-M-B8-P No. of Relay:- 02 Coil Voltage:- 24 Volt DC Contact Configuration:- 02 C/O Relay module with socket.
