Channels - 08 Brand - BOOST Material PCB - FR4, Glass Epoxy Usage/Application - Industrial Relay Type - MY4, Electro-mechanical. Size - 360 mm X 90 mm X 83 mm Model Name/Number - RP230A08-4CO-M-B14/P Shape - Rectangular Terminals - Screw Type Conductor size - 0.25 to 2.5 sq. mm flexible PCB Dimension - 358 mm X 72 mm Contact Type - 4 Change Over Relay ON Indication - Green color LED Input Current/ Channel - 347 mA @ 230 V AC Relay Make / Manufacturer - OMRON Operating Temperature - 0 to 50 degree Celsius Designation - Designation plate screwed to the PCB for labeling purpose Rating of Contacts - 3 Amp at 24 V DC & 220 V AC for Resistive loads Coil Resistance - 662 Ohms +-10% Storage Temperature - -10 to 60 degree Celsius Relative Humidity - 5 to 85% RH. Country of Origin - Made in India Minimum Order Quantity - 01 Number

Product Name: Relay Module Operating Temperature : 0 to 50 degree Celsius. Storage Temperature : 10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH. Relay ON Indication : Green color LED. Relay Protection Method : Freewheeling Diode Designation :Designation plate screwed to the PCB for labeling purpose. Rating of Contacts : 5 Amp at 24 V DC & 230 V AC for Resistive load. Coil Resistance : 662 Ohms. Conductor size : 0.25 to 2.5 sq.mm flexible. Relay Make / Manufacturer : OMRON

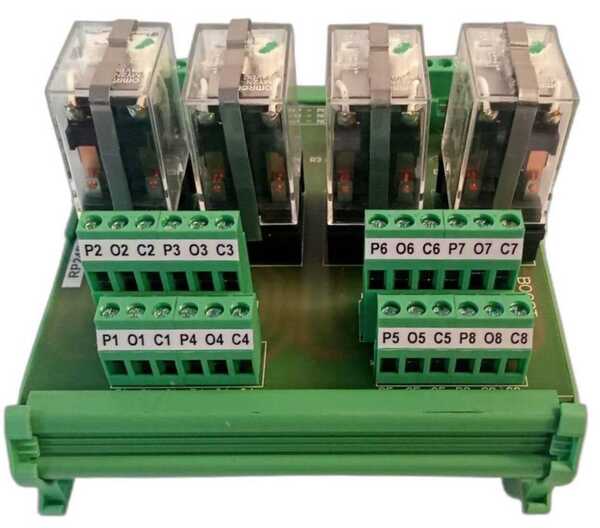

Terminals : Screw type. Conductor size : 0.25 to 2.5 sq.mm flexible. Relay Make / Manufacturer : OMRON. Relay Type : MY2, Electro-mechanical. Contact Type : 2 Change Over No of Relay Channel : 04 Channel. Rating of Contacts : 5 Amp at 24 V DC & 230 V AC for Resistive load. Coil Resistance : 662 Ohms. Coil Voltage : 24 V DC Operating Temperature : 0 to 50 degree Celsius. Storage Temperature : 10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH. Relay ON Indication : Green color LED. Relay Protection Method : Freewheeling Diode Designation :Designation plate screwed to the PCB for labeling purpose

Coil Resistance : 662 Ohms. Coil Voltage : 24 V DC. Rating of Contacts : 5 Amp at 24 V DC & 230 V AC for Resistive load. Relative Humidity : 5 to 85% RH. Relay ON Indication : Green color LED. Relay Protection Method : Freewheeling Diode Designation :Designation plate screwed to the PCB for labeling purpose.

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method: Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 1440 Ohms +/- 10%. Coil Voltage : 24V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 17 mA per channel PCB Dimension : 375 mm X 72 mm. Mechanical Dimensions : 378 mm X 90 mm X 70 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2RL-2, Electro-mechanical

Din Rail Mounting Pluggable Relay 50,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 3 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4430 Ohms +/- 10%. Coil Voltage : 110V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 25 mA per channel PCB Dimension : 354 mm X 72 mm. Mechanical Dimensions : 358 mm X 90 mm X 81 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: MY4, Electro-mechanical

Din Rail Mounting Pluggable Relay 50,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 4 Channel Rating of Contacts : 3 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4430 Ohms +/- 10%. Coil Voltage : 110V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 25 mA per channel PCB Dimension : 180 mm X 72 mm. Mechanical Dimensions : 184 mm X 90 mm X 81 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: MY4, Electro-mechanical

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4600 Ohms +/- 10%. Coil Voltage : 110V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 24 mA per channel PCB Dimension : 120mm X 72 mm. Mechanical Dimensions : 125 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 20.2KOhms +/- 10%. Coil Voltage : 230V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 11mA per channel PCB Dimension : 120mm X 72 mm. Mechanical Dimensions : 125 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 NO
