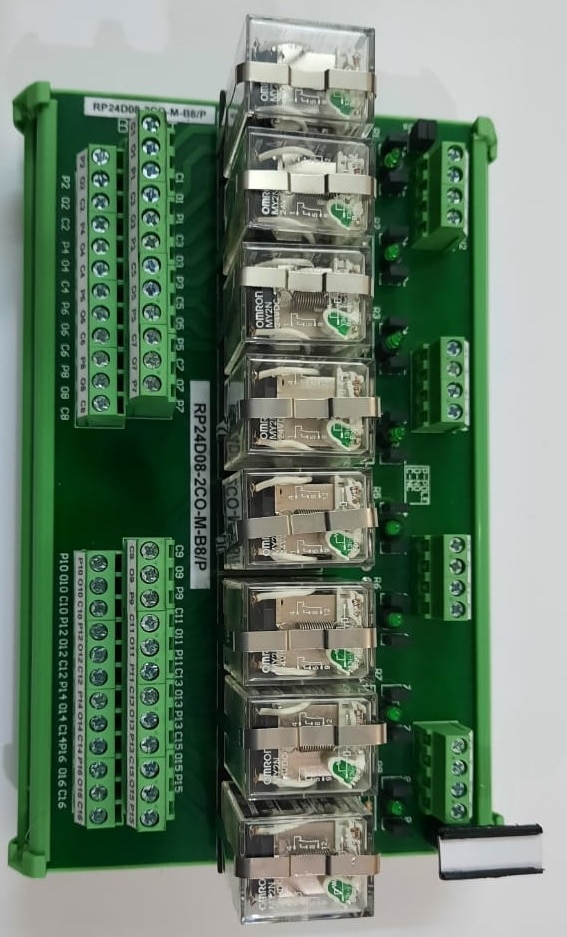

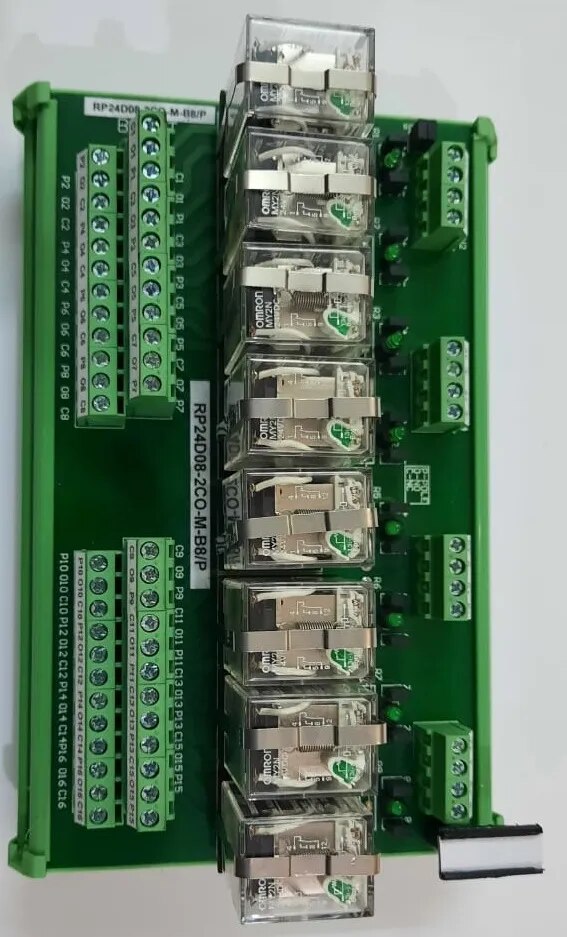

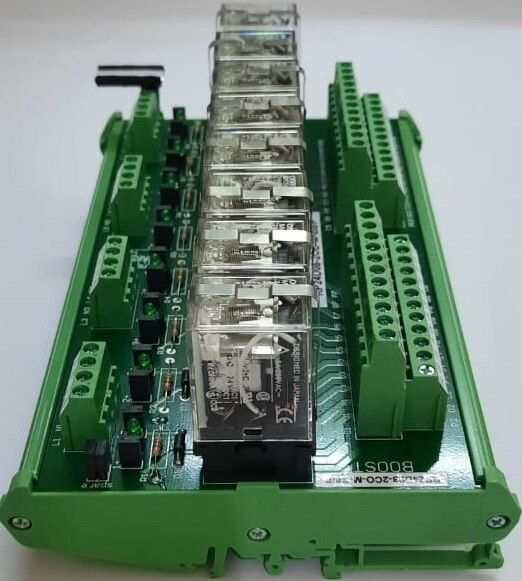

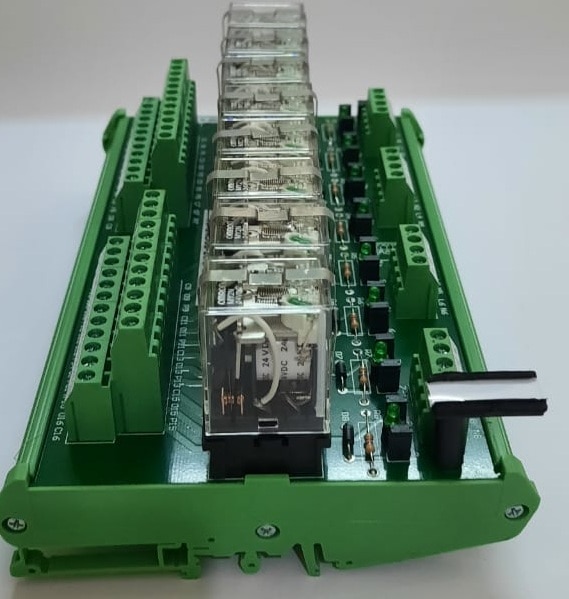

Relay Interfacing Module RP24D08-2CO-M-B8/P.(MY2)
In stock
Description
Coil Resistance : 662 Ohms.
Coil Voltage : 24 V DC.
Rating of Contacts : 5 Amp at 24 V DC & 230 V AC for Resistive load.
Relative Humidity : 5 to 85% RH.
Relay ON Indication : Green color LED.
Relay Protection Method : Freewheeling Diode
Designation :Designation plate screwed to the PCB for labeling purpose.
Specifications
| Relay Type | MY2, Electro-mechanical |
|---|---|
| Shape | Rectangular |
| Model Name/Number | RP24D08-2CO-M-B8/P.(MY2) |
| Country of Origin | Made in India |
| Usage/Application | Industrial |
| Channels | 08 |
