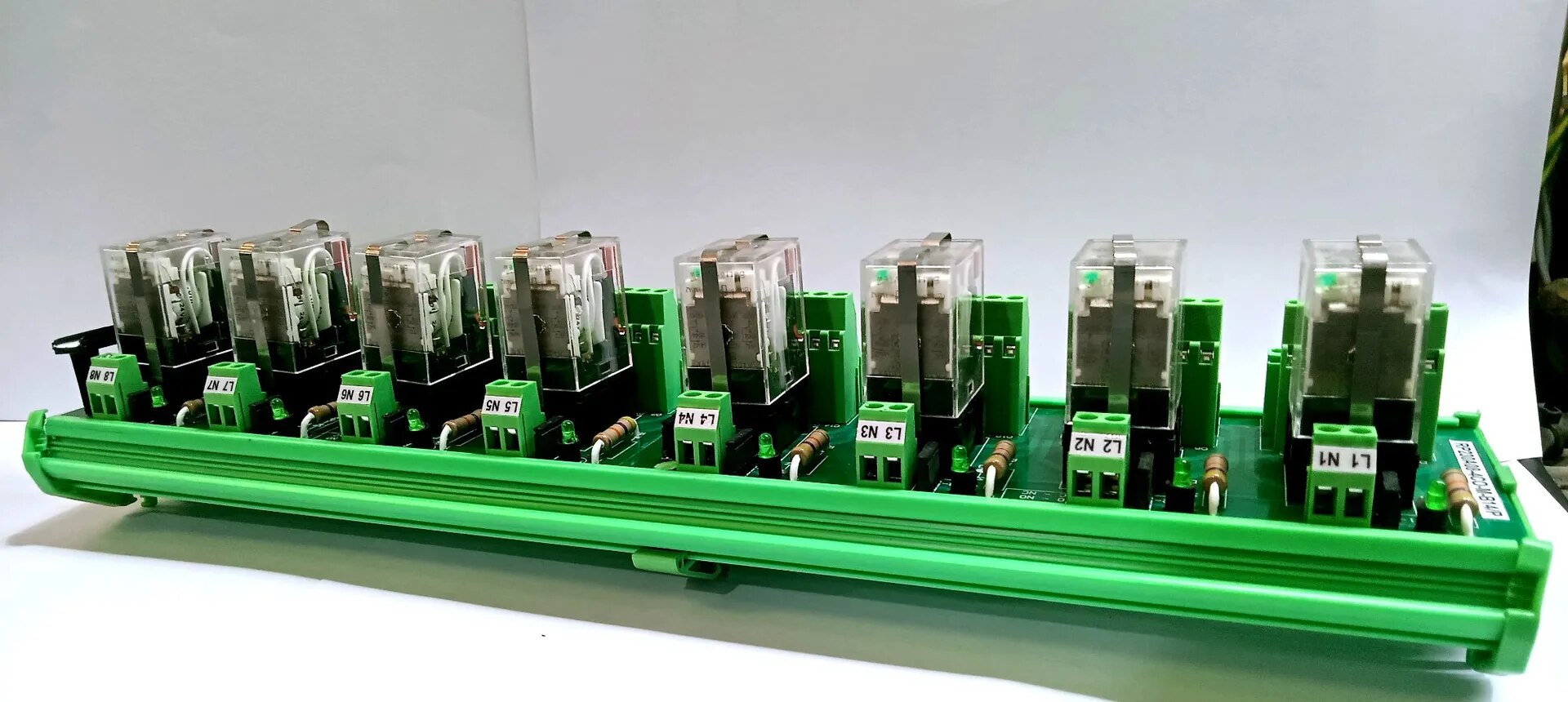

Relay Interfacing Module RP230A08-4CO-M-B14/P
Description
Channels - 08
Brand - BOOST
Material PCB - FR4, Glass Epoxy
Usage/Application - Industrial
Relay Type - MY4, Electro-mechanical.
Size - 360 mm X 90 mm X 83 mm
Model Name/Number - RP230A08-4CO-M-B14/P
Shape - Rectangular
Terminals - Screw Type
Conductor size - 0.25 to 2.5 sq. mm flexible
PCB Dimension - 358 mm X 72 mm
Contact Type - 4 Change Over
Relay ON Indication - Green color LED
Input Current/ Channel - 347 mA @ 230 V AC
Relay Make / Manufacturer - OMRON
Operating Temperature - 0 to 50 degree Celsius
Designation - Designation plate screwed to the PCB for labeling purpose
Rating of Contacts - 3 Amp at 24 V DC & 220 V AC for Resistive loads
Coil Resistance - 662 Ohms +-10%
Storage Temperature - -10 to 60 degree Celsius
Relative Humidity - 5 to 85% RH.
Country of Origin - Made in India
Minimum Order Quantity - 01 Number
Specifications
| Channel | 08 |
|---|
