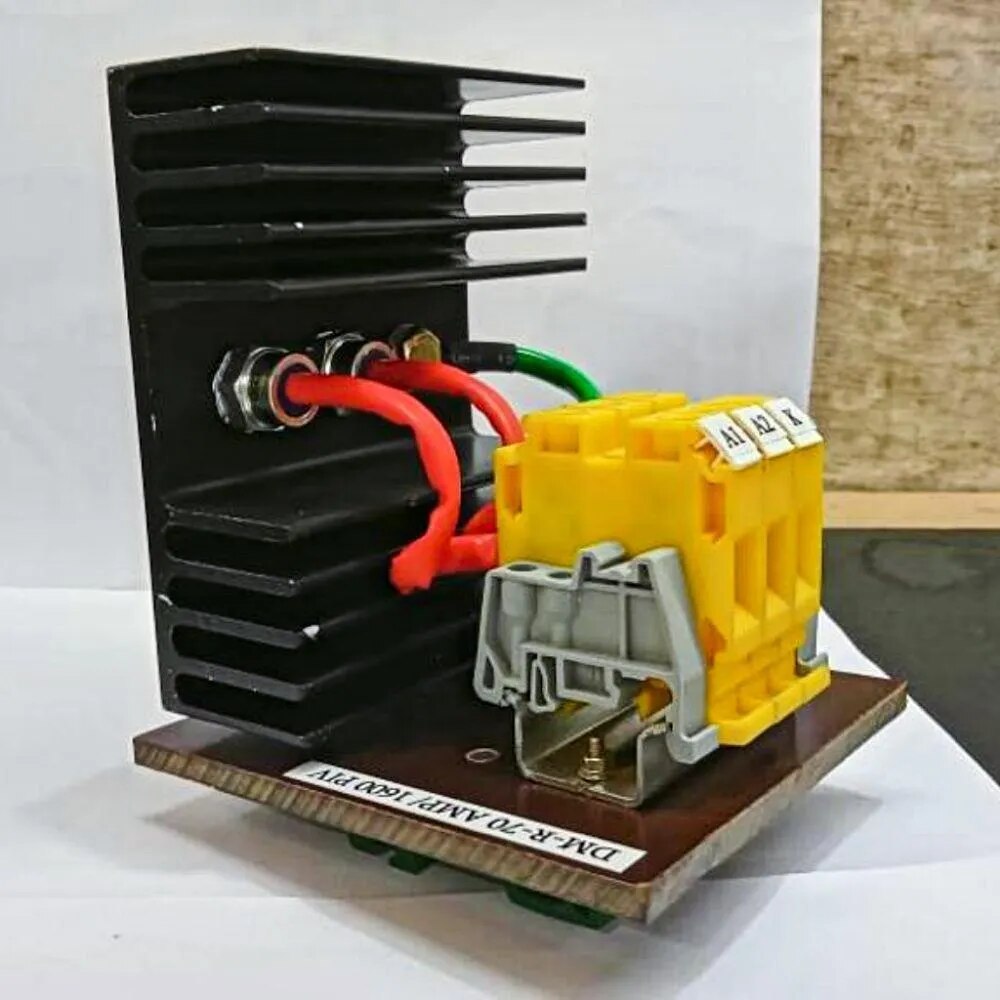

Diode Module DM-R-70A-16
In stock
Description
Two Input One Output Diode Module
Din Rail Mounting
“OR” ing Module
Operating Temperature : 0 to 50 degree Celsius
Storage Temperature : -10 to 60 degree Celsius
Relative Humidity : 5 to 85% RH
Designation : Designation plate screwed to the Backelite for labeling purpose
No of Channel : 1 Channel (2 input, 1 output diode module)
Diode Type : Stud mounting (cathode to stud)
No. of Diode : 2
PIV : 1600 Volt
Conductor Size : Screw terminal 4 mm² to 25 mm²
Mounting Type : Din rail Mountable
Size : 110 mm X 150 mm X 140 mm
Testing
Visual Inspection : 100 %.
Dimensional Check : 100 %.
Diode Polarity Test : 100 %
Continuity Test : 100 %.
Specifications
| One Output Diode Module | Two Input |
|---|
