Name: Relay Board RP24D02-1CO-OF-M-B5/P
Availability: instock

Diode Module DM-F-70A-1600

Relay Interfacing Module

Relay Board RP24D02-1CO-OF-M-B5/P

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum.

Relay Interfacing Module

Relay Module RP24D08-2CO-OEN/P

Din Rail Mounting Pluggable Relay 1,00,00,000 Mechanical operations minimum. 1,00,000 Electrical operations minimum. Operating Temperature :- 0 to 50 degree Celsius. Storage Temperature : -10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH Relay ON Indication : Green color LED. Relay Protection Method: Freewheeling Diode. Designation : Designation plate screwed to the PCB for labeling purpose.

Cable Assembly

Cable Assembly CA-D50-50D-1.52 MTR

Length1.52 MTR Packaging TypeBox CableSheilded Cross section0.25 sq. mm ColorGrey JacketPVC Type of Connector D type Dust Cover MaterialPVC with Chrome Plating Country of Origin Made in India

Current	70 Ampere
No. of Diode	1
PIV	1600 Volt
Conductor Size	Screw terminal 4 mm² to 25 mm²
Mounting Type	Din rail Mountable
Mechanical Dimensions	110 mm X 150 mm X 140 mm

Relay Board RP24D02-1CO-OF-M-B5/P

Relay Module RP24D08-2CO-OEN/P

Cable Assembly CA-D50-50D-1.52 MTR

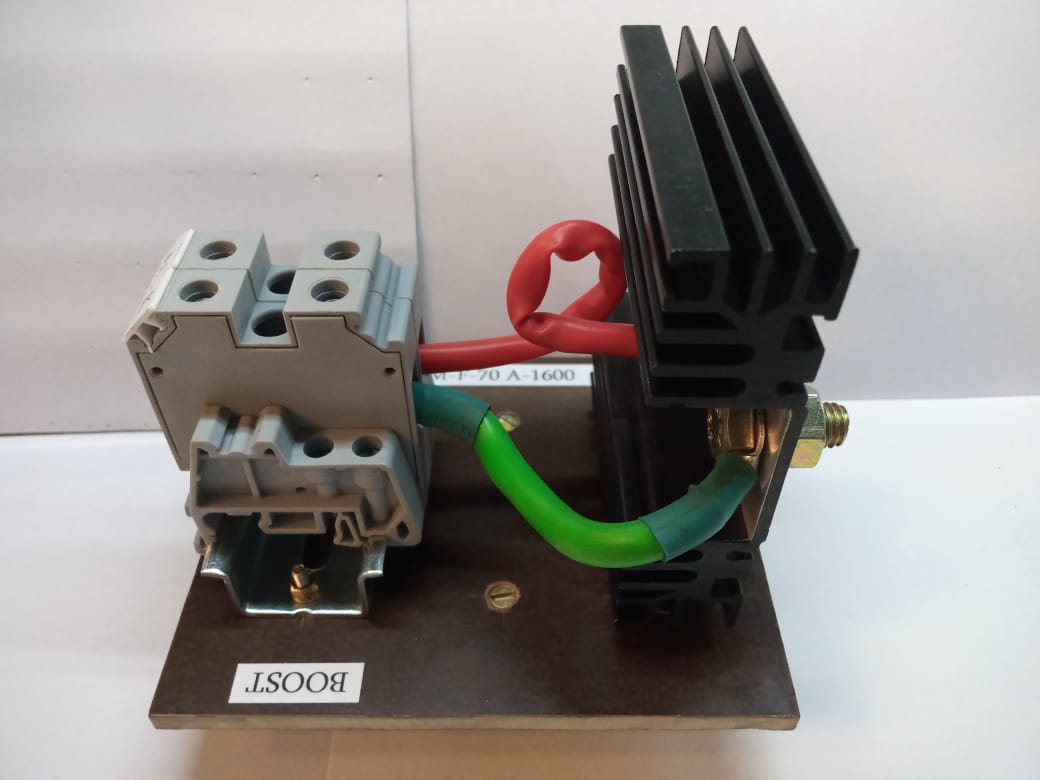

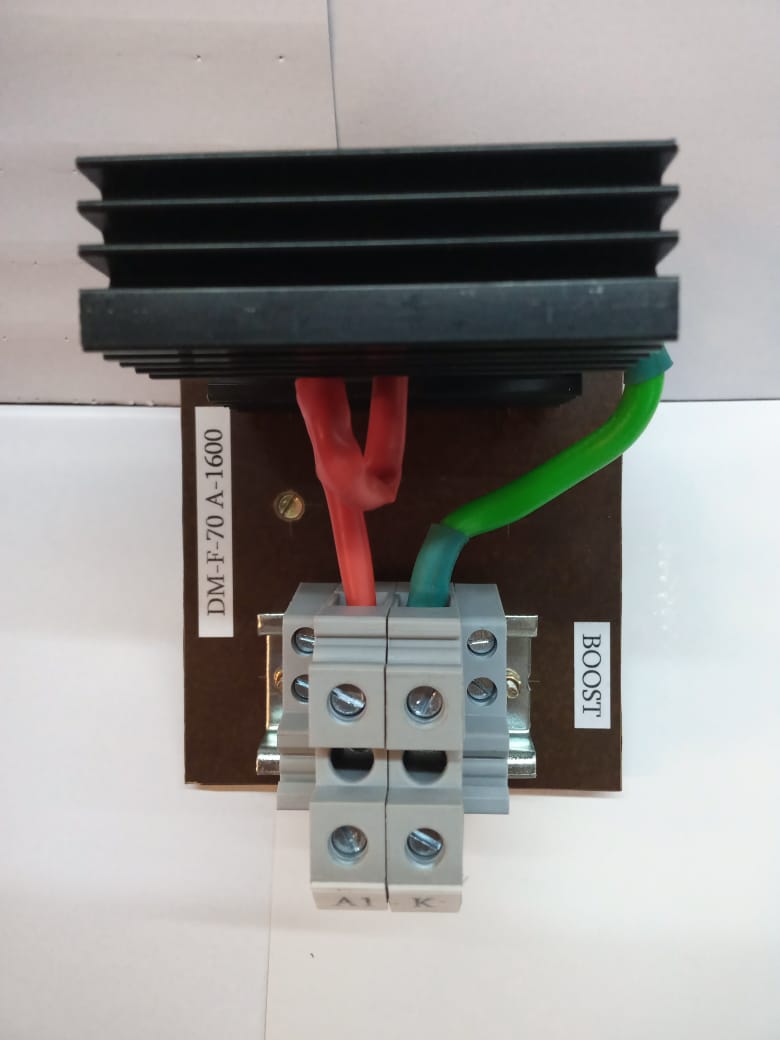

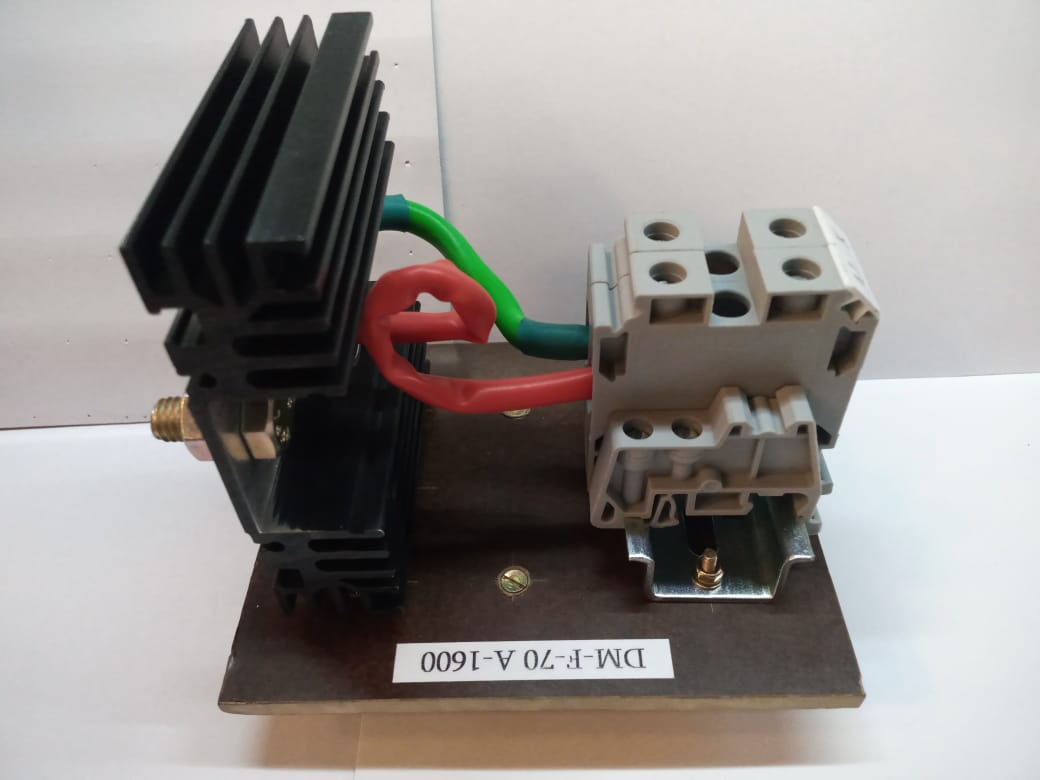

Diode Module DM-F-70A-1600

Diode Module by Boost
