Two Input One Output Diode Module
Din Rail Mounting, Redundant Module
“OR”ing Module
No of Channel: 1 Channel ( 2 input , 1 output diode module )
Diode Type: Stud Mounting.
No. of Diode: Two
Input current per Channel: 10 Amp
PIV: 2000 Volt
Terminal Connection: Screw terminal, 0.25²mm to 2.5²mm conductor

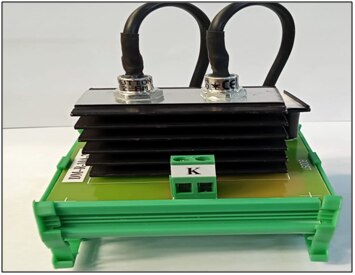

Terminal Markings: Output ends are brought to the top row of PCB Mounted terminals marked as K.

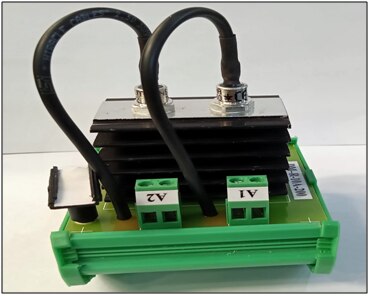

: Input ends are brought to the top row of PCB Mounted terminals marked as A1, A2.
Din Rail Mounting
Pluggable Relay
1,00,00,000 Mechanical operations minimum.
1,00,000 Electrical operations minimum.
Operating Temperature :- 0 to 50 degree Celsius.
Storage Temperature : -10 to 60 degree Celsius.
Relative Humidity : 5 to 85% RH
Relay ON Indication : Green color LED.
Relay Protection Method: Freewheeling Diode.
Designation : Designation plate screwed to the PCB for labeling purpose.
