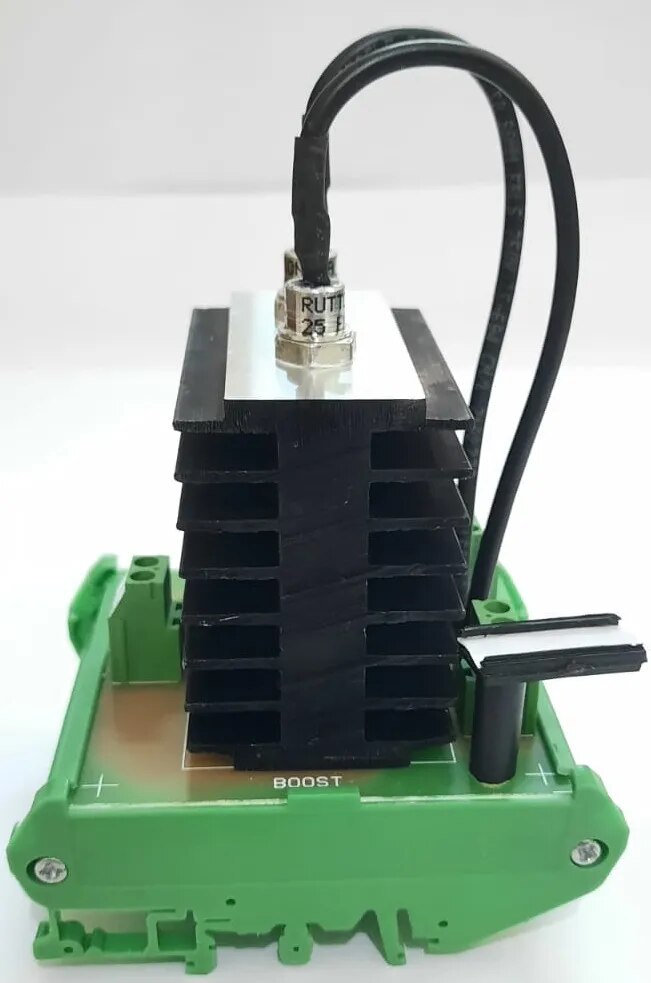

Diode Module DM-R-20A-16

Diode Module by Boost Electronics

Diode Module DM-R-20A-16

Contact Us

Phone Number

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

No of Relay Channel: 1 Channel ( 2 input , 1 output diode module ) Diode Type: Stud Mounting. No. of Diode: Two Coil Voltage: 230 V AC. Input current per Channel: 20 Amp PIV: 1600 Volt Terminal Connection: Screw terminal, 0.25²mm to 2.5²mm conductor Terminal Markings: Output ends are brought to the top row of PCB Mounted terminals marked as K. : Input ends are brought to the top row of PCB Mounted terminals marked as A1, A2.

Specifications

Item No DM-R-20A-16
Model No. DM-R-20A-1600PIV
