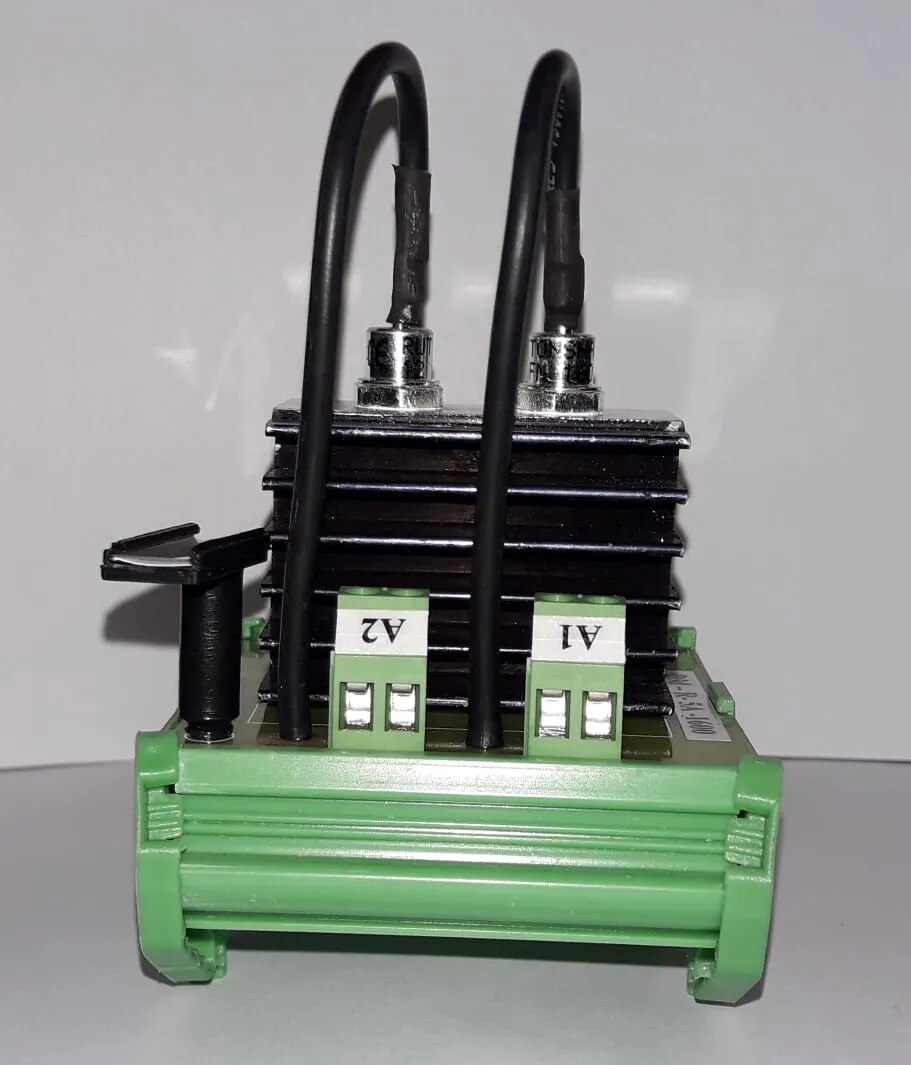

Diode Module DM-R-5A-1600PIV

Diode Module by Boost Electronics

Diode Module DM-R-5A-1600PIV

Contact Us

Phone Number

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

No of Channel: 1 Channel (2 input, 1 output diode module) Diode Type: Stud Mounting. No. of Diode: Two Input current per Channel: 5 Amp PIV: 1600 Volt Terminal Connection: Screw terminal, 0.25²mm to 2.5²mm conductor Terminal Markings: Output ends are brought to the top row of PCB Mounted terminals marked as K. : Input ends are brought to the top row of PCB Mounted terminals marked as A1, A2. Brand - Boost Usage/Application - Industrial Part Number- DM-R-5A-16 Size - 70 mm X 90 mm X 115 mm PCB Material - FR4, Glass Epoxy Country of Origin - Made in India Minimum Order Quantity - 1

Specifications

2 input 1 output diode module
PIV 1600 Volt
