relay interfacing module

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4660 Ohms +/- 10%. Coil Voltage : 100V AC Relay Socket : NA Input Current/ Channel : 24 mA per channel PCB Dimension : 28 mm X 84 mm. Mechanical Dimensions : 28 mm X 84 mm X 60 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer : OMRON Relay Type : G2R-2, Electro-mechanical Contact Type : 2 Change Over

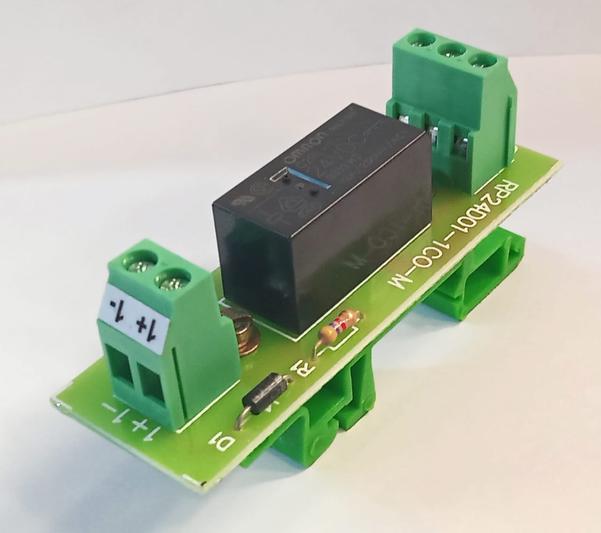

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 1,00,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 8 A at 30V DC and 250V AC for resistive load. Coil Resistance : 1,440 Ohms +/- 10%. Coil Voltage : 24 V DC Relay Socket : NA Input Current/ Channel : 17 mA per channel PCB Dimension : 28 mm X 84 mm. Mechanical Dimensions : 28 mm X 84 mm X 60 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer : OMRON Relay Type : G2RL-2, Electro-mechanical Contact Type : 2 Change Over

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 2 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 1,440 Ohms +/- 10%. Coil Voltage : 24 V DC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 17 mA per channel PCB Dimension : 52 mm X 72 mm. Mechanical Dimensions : 55 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer : OMRON Relay Type : G2RL-1, Electro-mechanical Contact Type : 1 Change Over

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum. Rating of Contacts - 10 A at 30V DC and 250V AC for resisitive load. Coil Resistance - 1440 Ohms + 10%. Coil Voltage - 24 V DC Relay Socket - NA Input Current/ Channel - 17 mA per channel Mechanical Dimensions - 24 mm X 72 mm X 60 mm Terminals - Screw type Conductor size - 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer - OMRON Contact Type - 1 Change Over

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum. Rating of Contacts - 10 A at 30V DC and 250V AC for resisitive load. Coil Resistance - 1440 Ohms + 10%. Coil Voltage - 24 V DC Relay Socket - 5 A, 250 V AC Input Current/ Channel - 17 mA per channel Mechanical Dimensions - 83 mm X 90 mm X 60 mm Terminals - Screw type Conductor size - 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer - OMRON Contact Type - 1 Change Over

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 5A at 30V DC and 250V AC for resistive load. Coil Resistance : 20.20 K Ohms + 10%. Coil Voltage : 230 V AC Input Current/ Channel : 12 mA per channel Mechanical Dimensions : 33 mm X 78 mm X 66 mm

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 10A at 30V DC and 250V AC for resistive load. Coil Resistance : 26,850 Ohms + 10%. Coil Voltage : 230 V AC Input Current/ Channel : 9 mA per channel Mechanical Dimensions : 24 mm X 78 mm X 53 mm

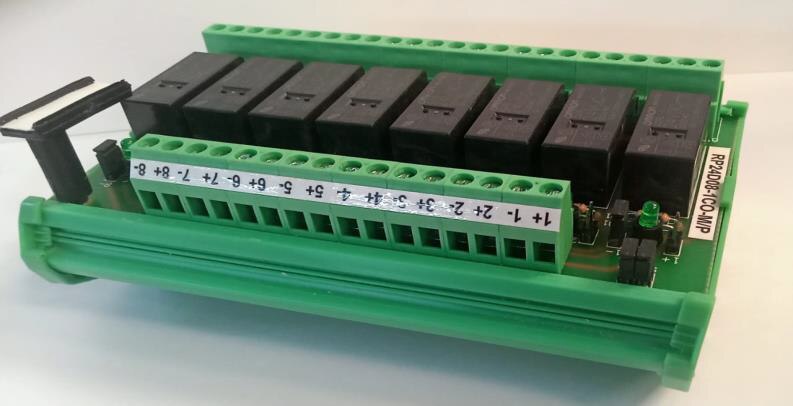

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 5A at 30V DC and 250V AC for resistive load. Coil Resistance : 4600 Ohms + 10%. Coil Voltage : 110 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 24 mA per channel

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4600 Ohms + 10%. Coil Voltage : 110 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 24 mA per channel

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum.

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for Labeling purpose No of Relay Channel : 02 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 20.2 KOhms + 10%. Coil Voltage : 230 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 11 mA per channel PCB Dimension : 51 mm X 72 mm. Mechanical Dimensions : 54 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer : OMRON Relay Type : G2R-1, Electro-mechanical Contact Type : 02 Change Over

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose
