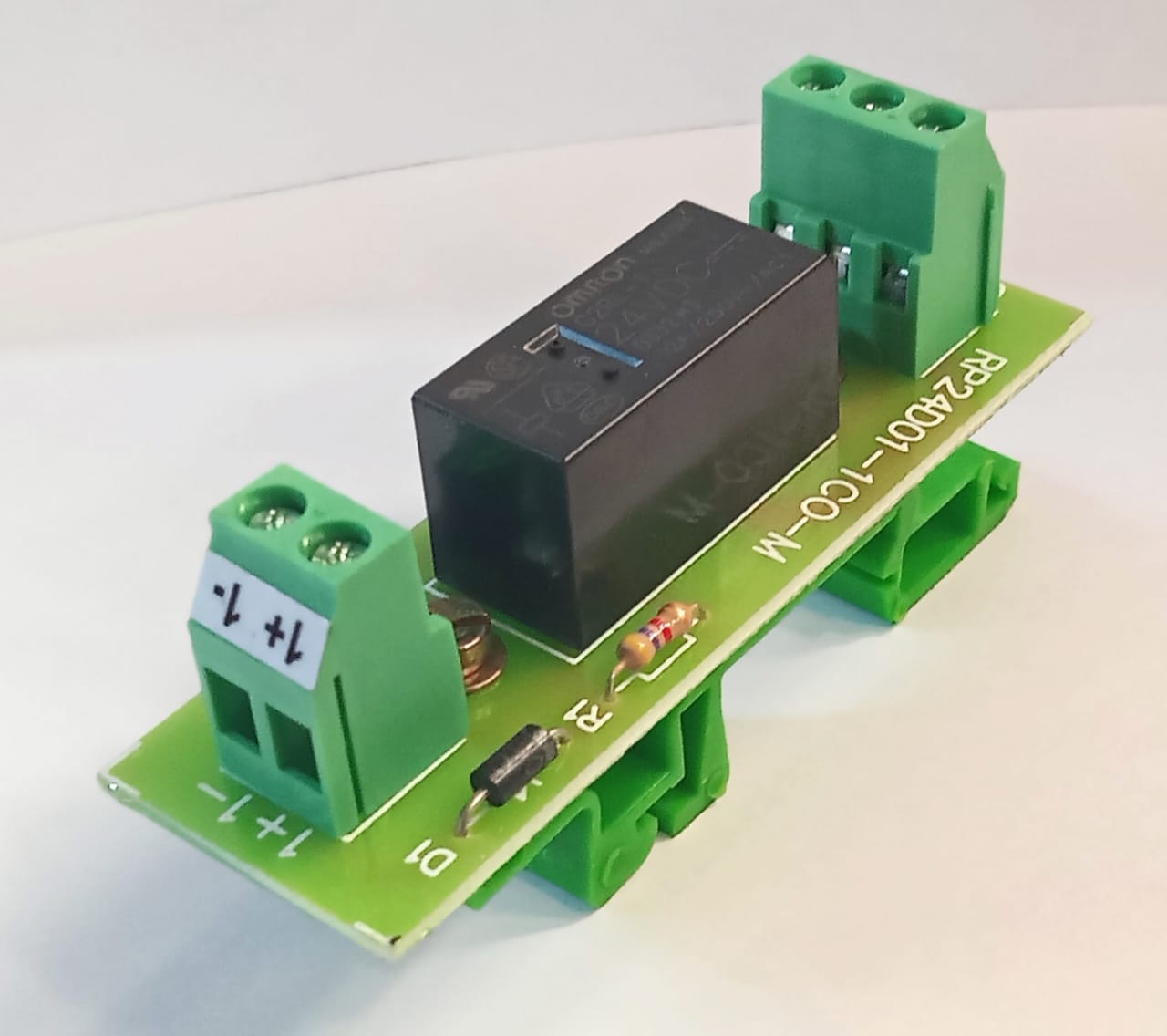

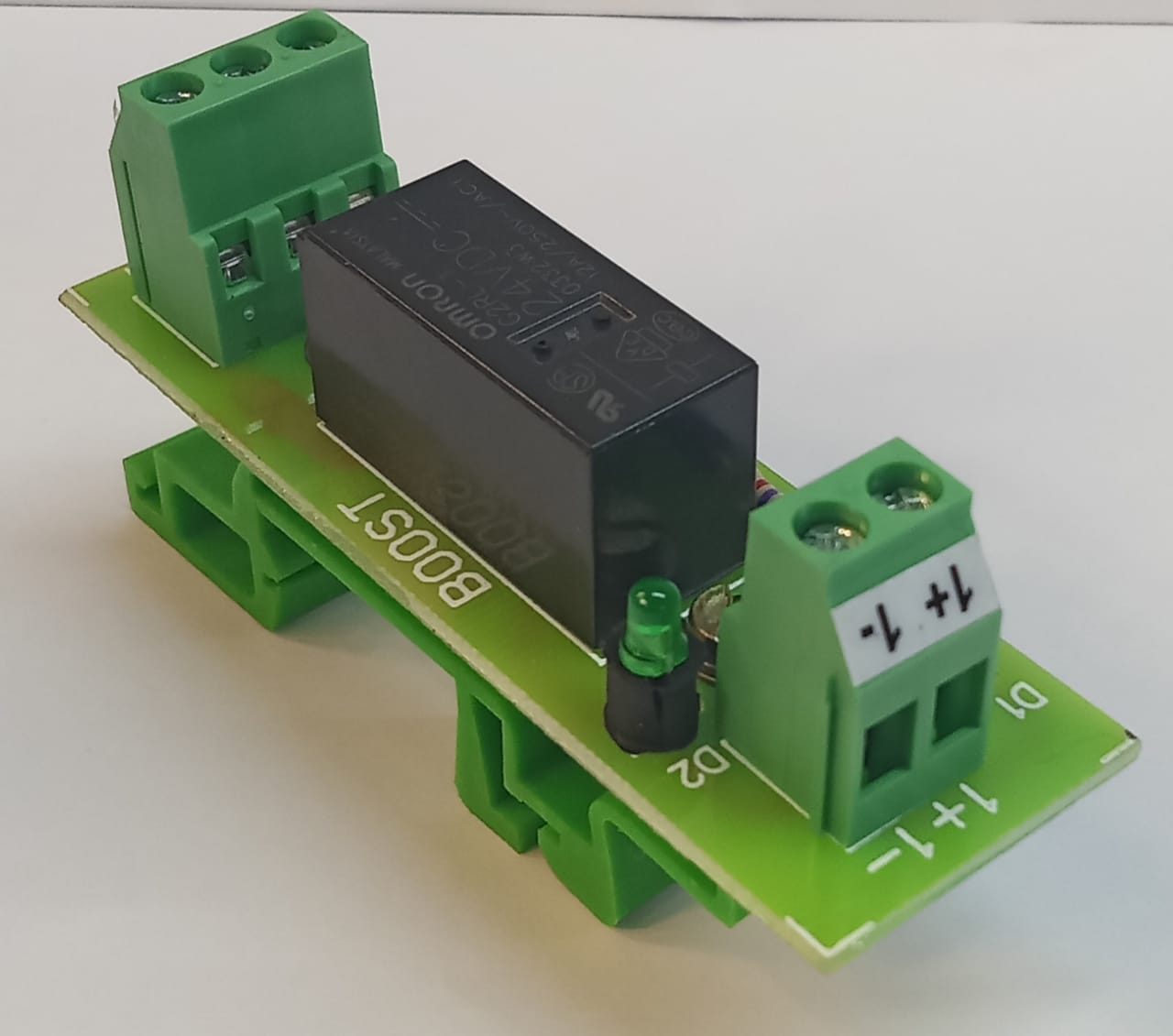

Relay Interfacing Module RP24D01-1CO-M
In stock
Description
Din Rail Mounting
Solderable Relay
20,000,000 Mechanical operations minimum.
30,000 Electrical operations minimum.
Rating of Contacts - 10 A at 30V DC and 250V AC for resisitive load.
Coil Resistance - 1440 Ohms + 10%.
Coil Voltage - 24 V DC
Relay Socket - NA
Input Current/ Channel - 17 mA per channel
Mechanical Dimensions - 24 mm X 72 mm X 60 mm
Terminals - Screw type
Conductor size - 0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer - OMRON
Contact Type - 1 Change Over
