Name: Relay Interfacing Module RP110A08-1CO-M
Brand: Boost Electronics
Availability: InStock

Chat with us

Relay Interfacing Module by Boost Electronics

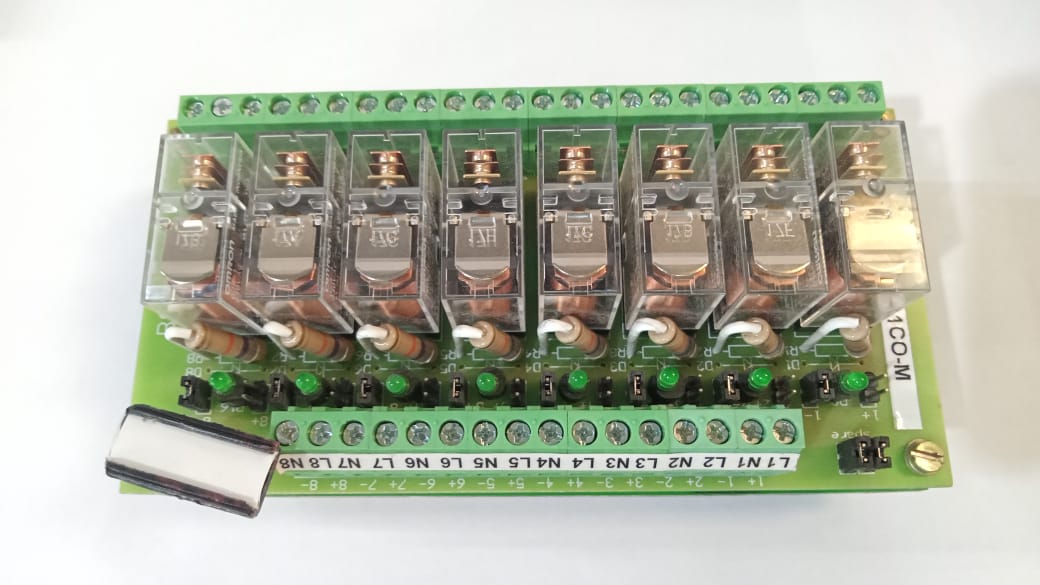

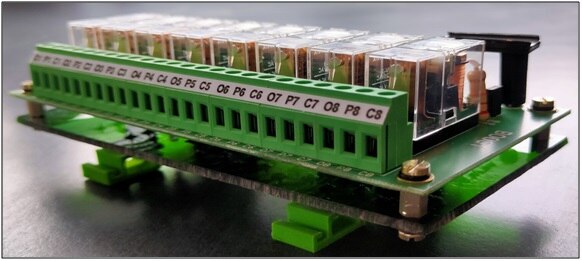

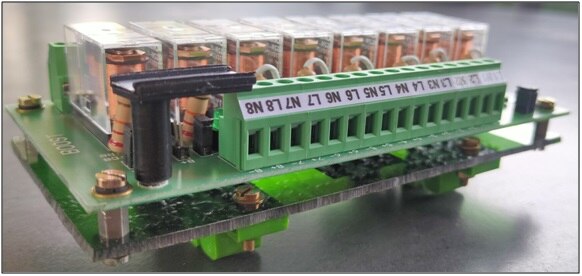

Relay Interfacing Module RP110A08-1CO-M

Phone Number

08048036394

Please keep 0 before dialling the number.

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum.

Contact Type	1 Change Over
Contact Type	1 Change Over
Contact Type	1 Change Over
Relay Type	G2R-1, Electro-mechanical
Relay Make / Manufacturer	OMRON
Conductor size	0.25 -2.5 sq.mm flexible
Terminals	Screw type
Mechanical Dimensions	144 mm X 72 mm X 58 mm
Input Current/ Channel	24 mA per channel
Relay Type	G2R-1, Electro-mechanical
Mechanical Dimensions	144 mm X 72 mm X 58 mm
Terminals	Screw type
Conductor size	0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer	OMRON
Relay Type	G2R-1, Electro-mechanical
Contact Type	1 Change Over
Coil Resistance	4600 Ohms + 10%.
Coil Voltage	110 V AC
Relay Socket	5 A, 250 V AC
Input Current/ Channel	24 mA per channel
Mechanical Dimensions	144 mm X 72 mm X 58 mm
Terminals	Screw type
Conductor size	0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer	OMRON
Contact Type	1 Change Over
Contact Type	1 Change Over
Contact Type	1 Change Over
Relay Type	G2R-1, Electro-mechanical
Relay Make / Manufacturer	OMRON
Conductor size	0.25 -2.5 sq.mm flexible
Terminals	Screw type
Mechanical Dimensions	144 mm X 72 mm X 58 mm
Contact Type	1 Change Over
Contact Type	1 Change Over
Relay Make / Manufacturer	OMRON
Conductor size	0.25 -2.5 sq.mm flexible
Terminals	Screw type
Mechanical Dimensions	144 mm X 72 mm X 58 mm
Input Current/ Channel	24 mA per channel
Relay Socket	5 A, 250 V AC
Coil Voltage	110 V AC
Coil Resistance	4600 Ohms + 10%.
