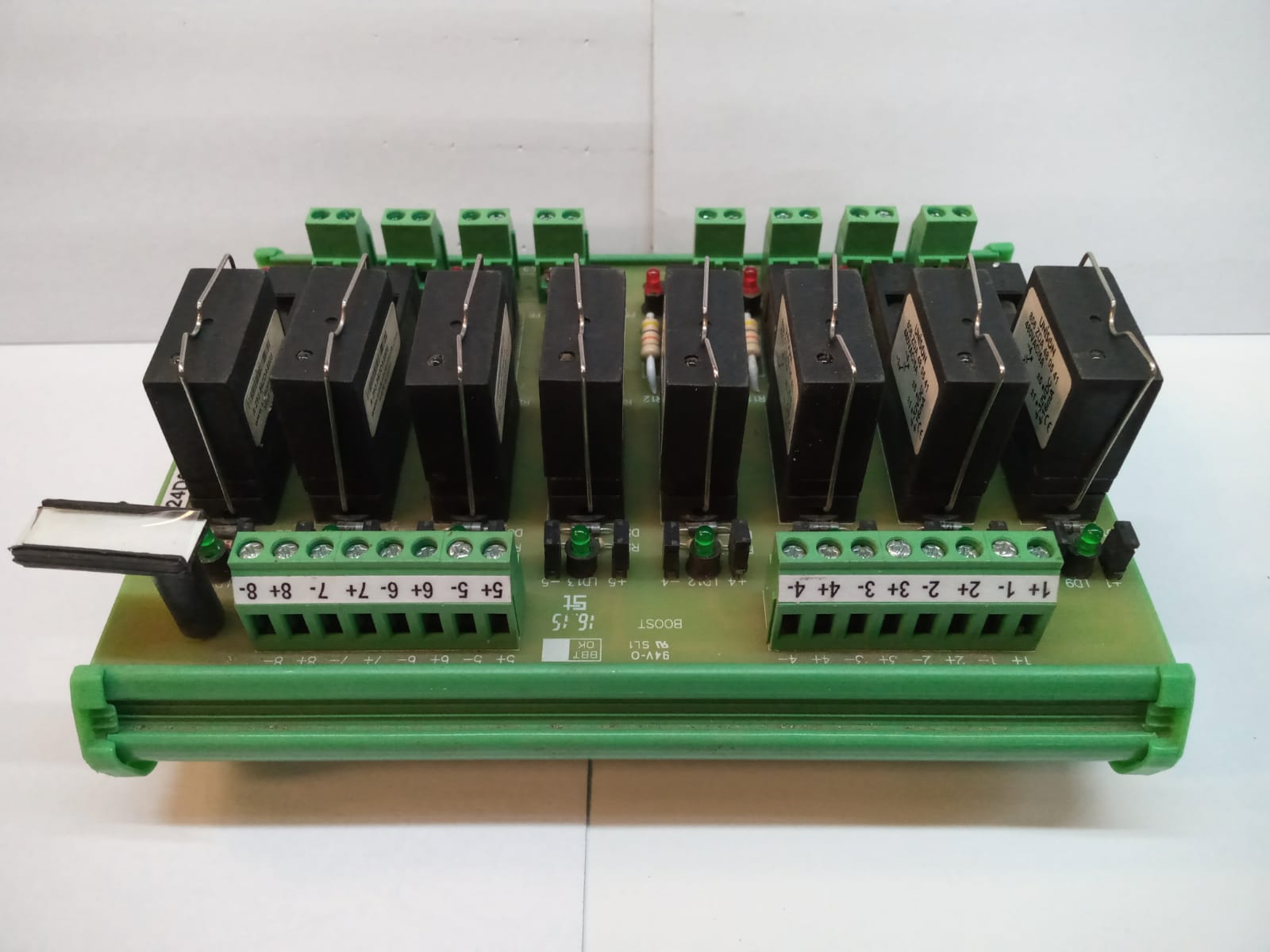

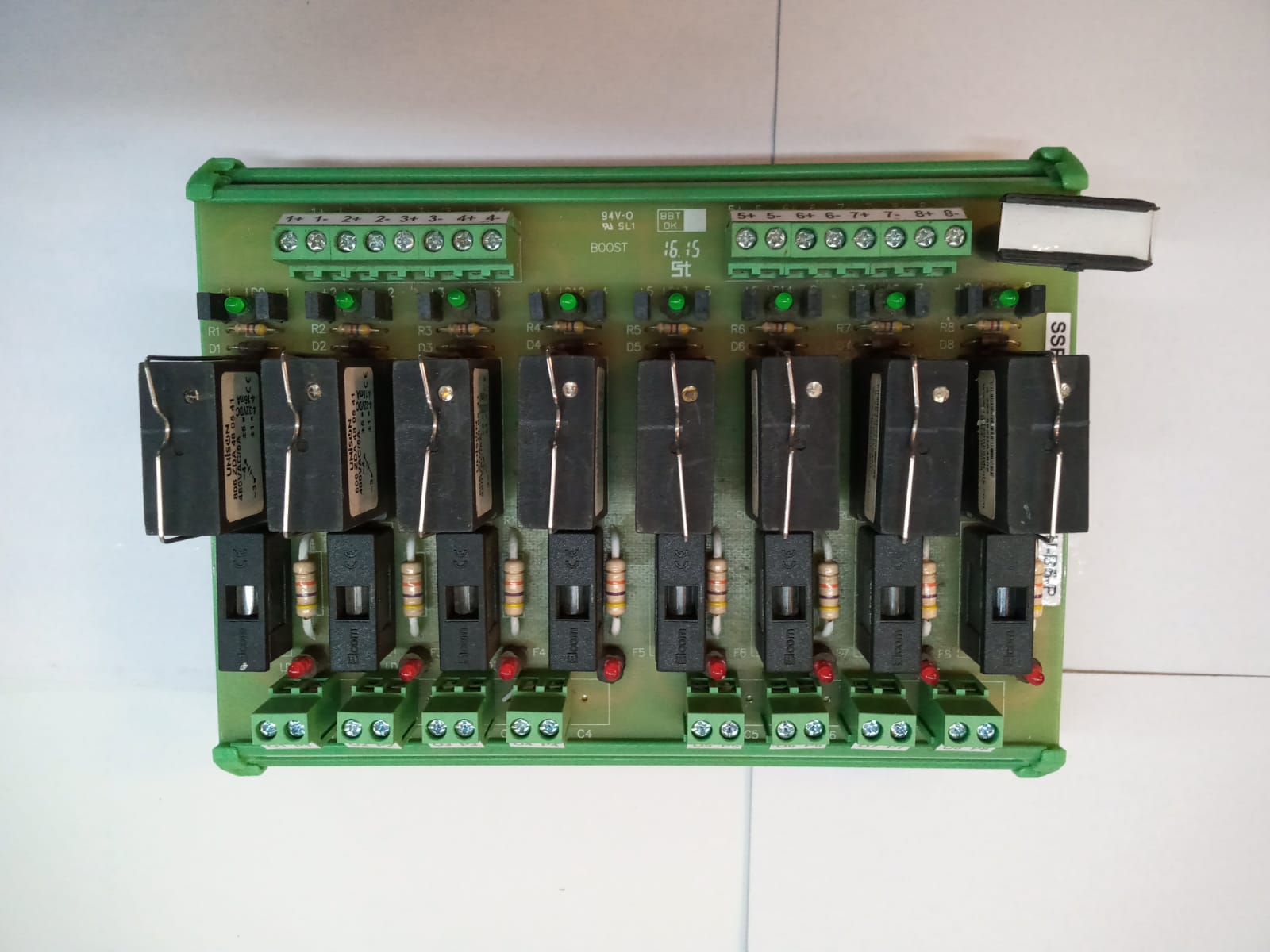

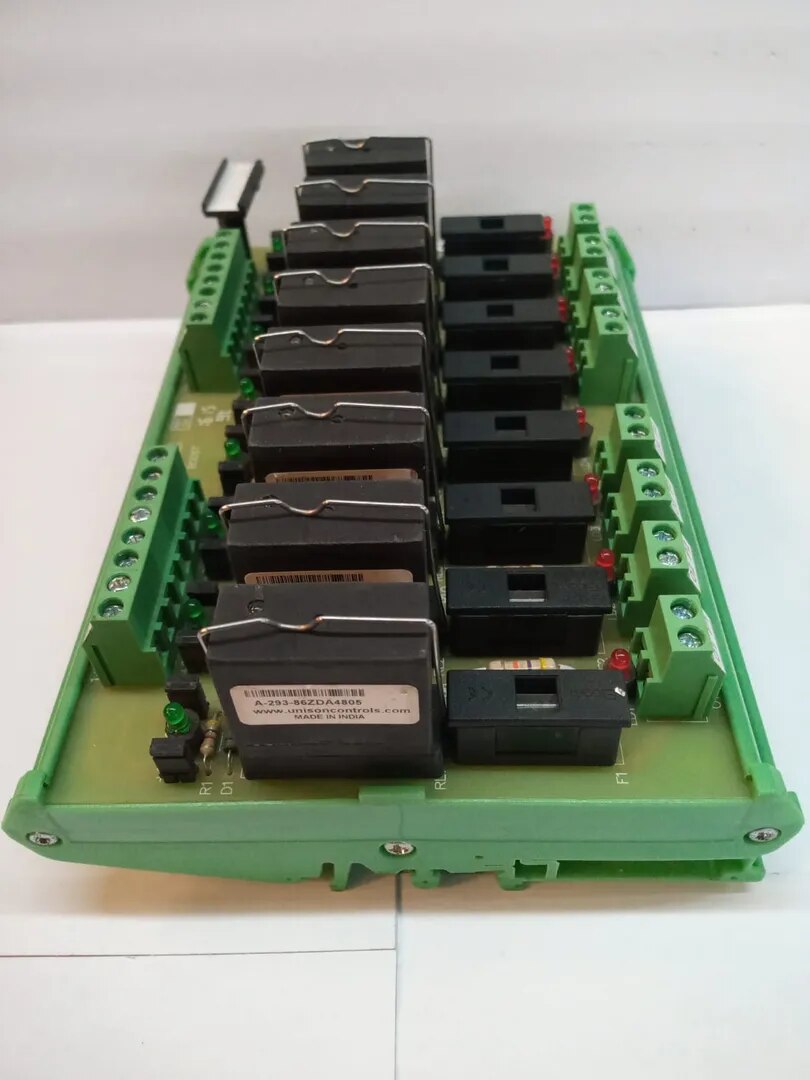

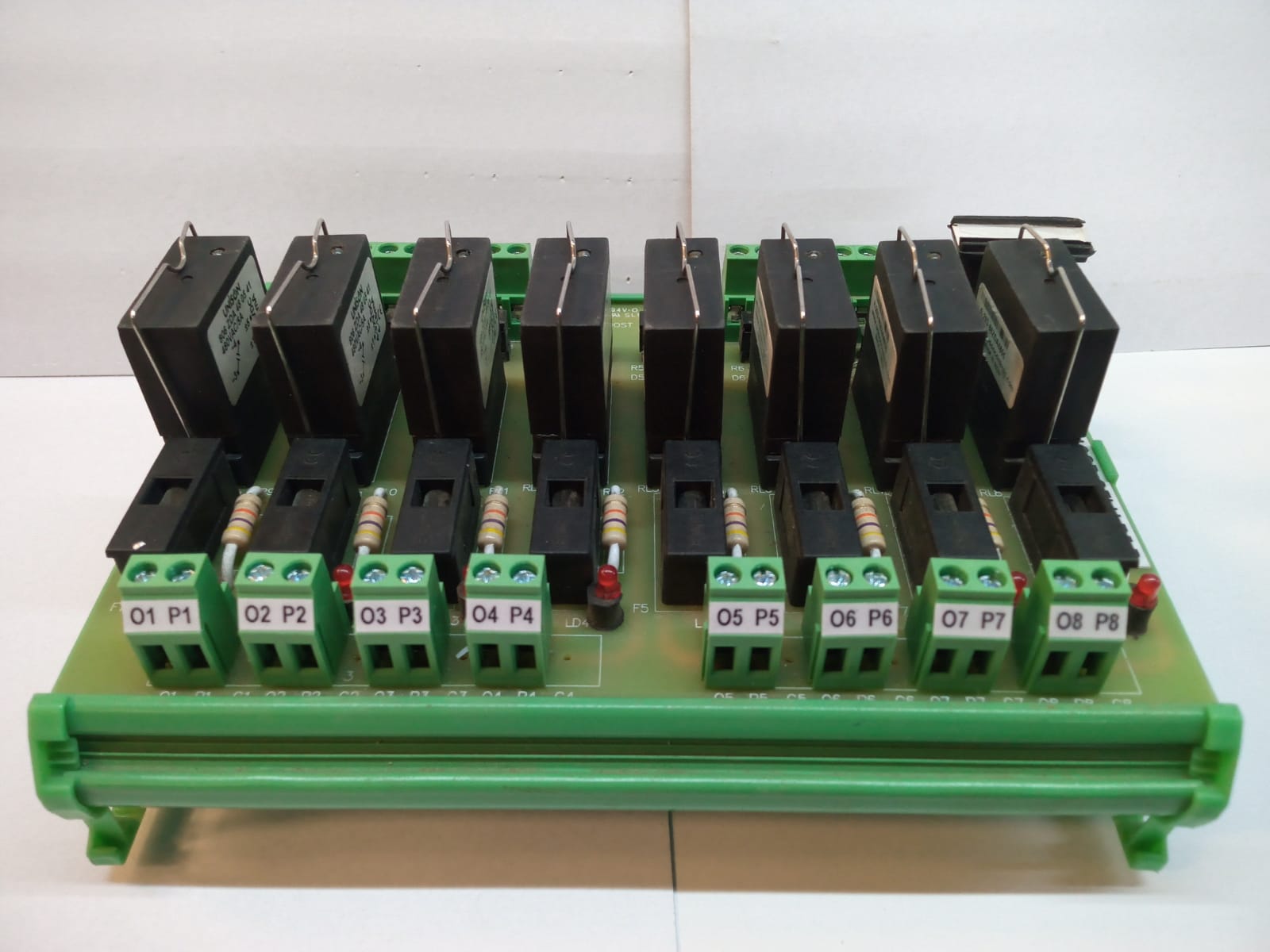

Solid State Relay Module SSRP24DO8-1NOA-OFI-U-B5/P
In stock
Description
Din Rail Mounting
Pluggable Relay
Operating Temperature: 0 to 50 degree Celsius
Storage Temperature: -10 to 60 degree Celsius
Relative Humidity: 5 to 85% RH
Relay ON Indication: Green Color LED
Relay Protection Method: Inbuilt
Designation: Designation plate screwed to the PCB for labeling purpose
Fuse Link: A glass fuse link provided at pole of each Relay
Fuse Blow Indication: Each Fuse in path of pole is provided with red LED indicates Fuse Blown Indication.
Specifications
| No of Relay Channel | 8 |
|---|---|
| Contact Type | 1 NO |
| Relay Socket | 5 Amp |
| Output | 5 Amp at 24-480 VAC |
| Input Voltage | 4-32 VDC |
