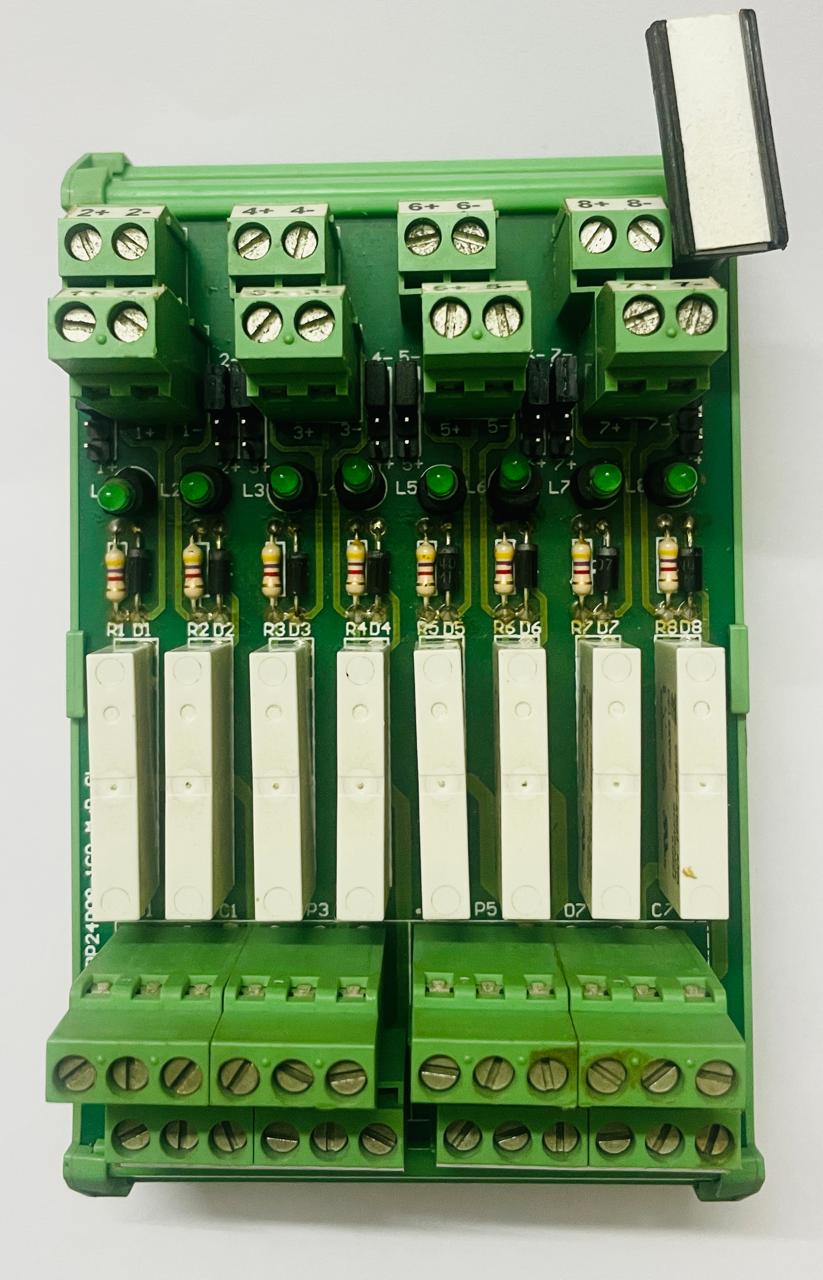

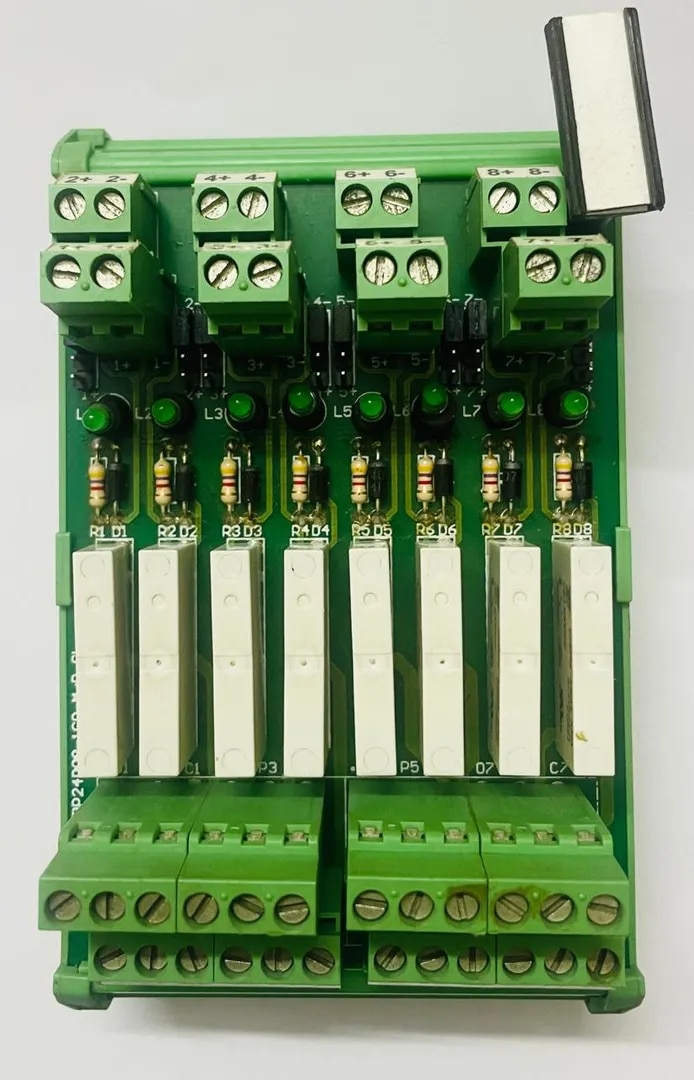

Name: 8 Channel Slim Relay Module
Brand: Boost
Availability: InStock

8 Channel Slim Relay Module

Relay Interfacing Module

Relay Board RP24D02-1CO-OF-M-B5/P

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum.

Relay Interfacing Module

Relay Module RP24D08-2CO-OEN/P

Din Rail Mounting Pluggable Relay 1,00,00,000 Mechanical operations minimum. 1,00,000 Electrical operations minimum. Operating Temperature :- 0 to 50 degree Celsius. Storage Temperature : -10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH Relay ON Indication : Green color LED. Relay Protection Method: Freewheeling Diode. Designation : Designation plate screwed to the PCB for labeling purpose.

Cable Assembly

Cable Assembly CA-D50-50D-1.52 MTR

Length1.52 MTR Packaging TypeBox CableSheilded Cross section0.25 sq. mm ColorGrey JacketPVC Type of Connector D type Dust Cover MaterialPVC with Chrome Plating Country of Origin Made in India

Contact Type	1CO
Relays (Standard/Approvals)	EU ROHS/ ELV, RoHS Certified
Relay Make / Manufacturer	SCHRACK
Conductor size	0.25 -2.5 sq.mm flexible
Terminals	Screw type
Mechanical Dimensions	78 mm X 126 mm X 68 mm
PCB Dimension	75 mm X 108 mm
Input Current/ Channel	7 mA per channel
Relay Socket	6 A, 250 V AC
Coil Voltage	24 V DC +/- 10%.
Coil Resistance	3,390 Ohms +/- 10%.
Coil Voltage	24 V DC +/- 10%.
Relay Socket	6 A, 250 V AC
Input Current/ Channel	7 mA per channel
