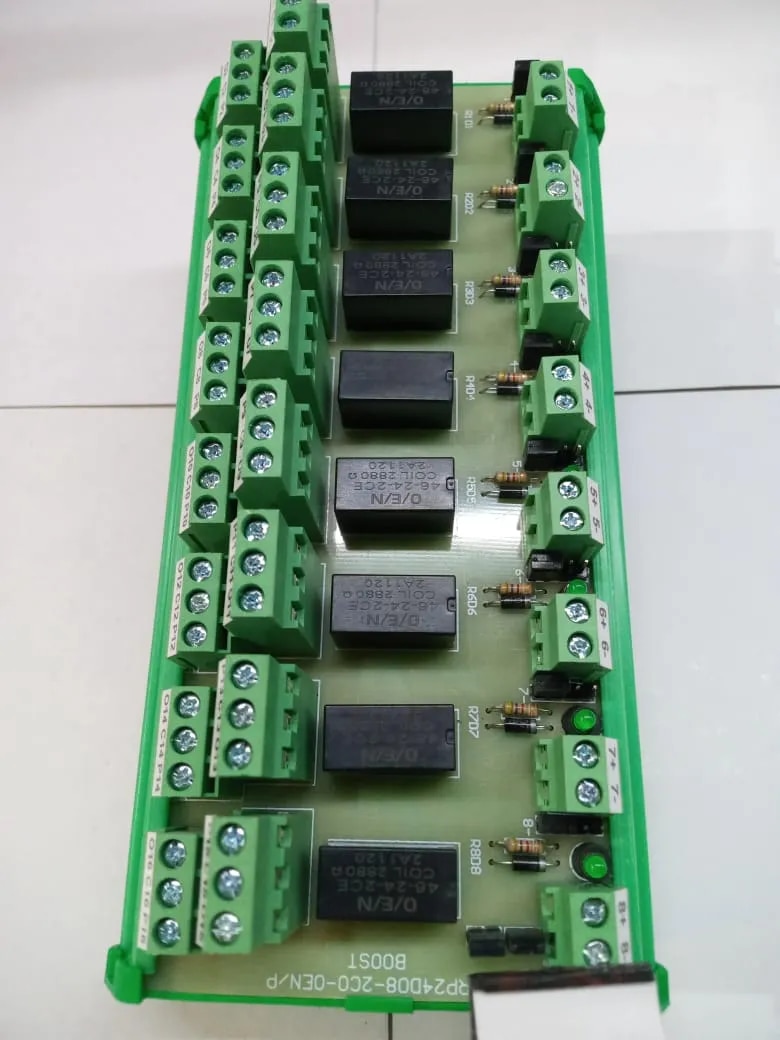

Relay Module RP24D08-2CO-OEN/P
In stock
Description
Din Rail Mounting
Pluggable Relay
1,00,00,000 Mechanical operations minimum.
1,00,000 Electrical operations minimum.
Operating Temperature :- 0 to 50 degree Celsius.
Storage Temperature : -10 to 60 degree Celsius.
Relative Humidity : 5 to 85% RH
Relay ON Indication : Green color LED.
Relay Protection Method: Freewheeling Diode.
Designation : Designation plate screwed to the PCB for labeling purpose.
Specifications
| No of Relay Channel | 08 |
|---|---|
| Rating of Contacts | 2 Amp at 30 V DC & 125 V AC |
| Coil Resistance | 2,880 Ohms +/-10% |
| Coil Voltage | 24 V DC |
| Input Current/ Channel | 8 mA @ 24 V DC |
