Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 20.2KOhms +/- 10%. Coil Voltage : 230V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 11mA per channel PCB Dimension : 120mm X 72 mm. Mechanical Dimensions : 125 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 NO

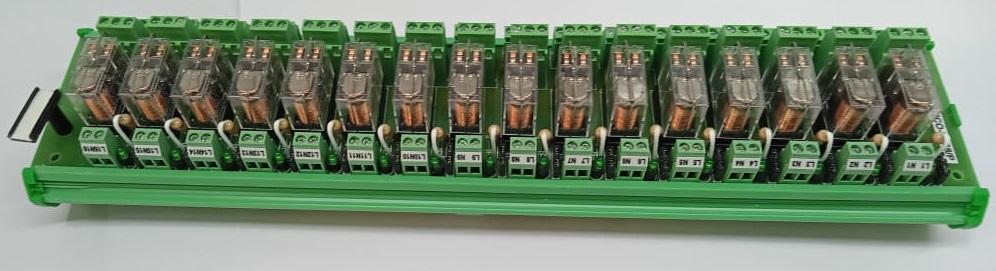

16 Channel relay Module, Coil : 230V AC, 1 NO Din Rail Mounting Pluggable Relay 18,000 Mechanical operations minimum. 1,800 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 26,850 Ohms +/- 10%. Coil Voltage : 230 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 9 mA per channel PCB Dimension : 330 mm X 108 mm. Mechanical Dimensions : 334 mm X 128 mm X 60 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 NO Packaging Details - In corrugated box with bubble sheet.

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 20,200 Ohms +/- 10%. Coil Voltage : 230 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 11 mA per channel PCB Dimension : 375 mm X 72 mm. Mechanical Dimensions : 379 mm X 90 mm X 70 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-2, Electro-mechanical Contact Type: 2 Change Over Packaging Details - In corrugated box with bubble sheet.

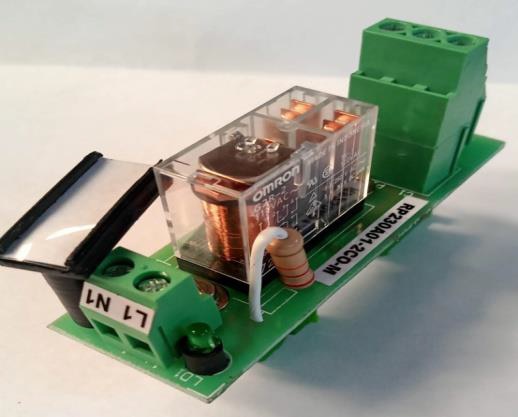

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 1,00,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 20.2 K Ohms +/- 10%. Coil Voltage : 230 V AC Input Current/ Channel : 12 mA per channel PCB Dimension : 26 mm X 72 mm. Mechanical Dimensions : 30 mm X 90 mm X 70 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-2, Electro-mechanical Packaging Details - In corrugated box with bubble sheet.

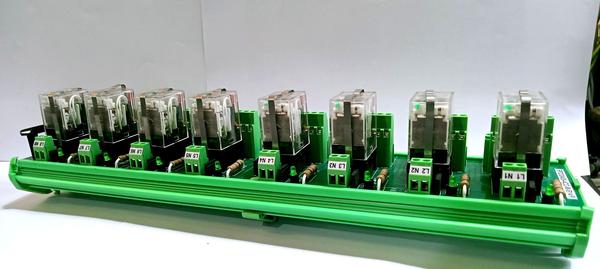

Channels - 08 Brand - BOOST Material PCB - FR4, Glass Epoxy Usage/Application - Industrial Relay Type - MY4, Electro-mechanical. Size - 360 mm X 90 mm X 83 mm Model Name/Number - RP230A08-4CO-M-B14/P Shape - Rectangular Terminals - Screw Type Conductor size - 0.25 to 2.5 sq. mm flexible PCB Dimension - 358 mm X 72 mm Contact Type - 4 Change Over Relay ON Indication - Green color LED Input Current/ Channel - 347 mA @ 230 V AC Relay Make / Manufacturer - OMRON Operating Temperature - 0 to 50 degree Celsius Designation - Designation plate screwed to the PCB for labeling purpose Rating of Contacts - 3 Amp at 24 V DC & 220 V AC for Resistive loads Coil Resistance - 662 Ohms +-10% Storage Temperature - -10 to 60 degree Celsius Relative Humidity - 5 to 85% RH. Country of Origin - Made in India Minimum Order Quantity - 01 Number

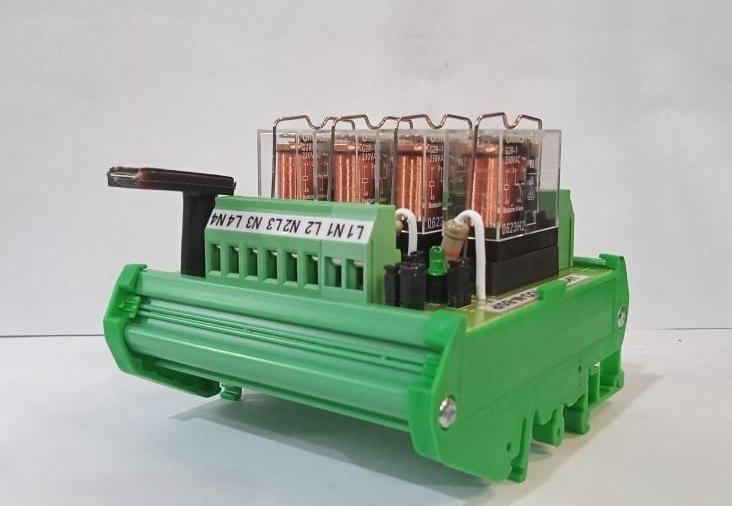

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 4 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 26,850 Ohms +/- 10%. Coil Voltage : 230 V DC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 9 mA per channel PCB Dimension : 80 mm X 72 mm. Mechanical Dimensions : 83 mm X 90 mm X 69 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 Change Over Packaging Details - In corrugated box with bubble sheet.

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 2 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 1,440 Ohms +/- 10%. Coil Voltage : 24 V DC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 10 mA per channel PCB Dimension : 52 mm X 72 mm. Mechanical Dimensions : 55 mm X 90 mm X 70 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 Change Over Packaging Details - In corrugated box with bubble sheet.

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 5A at 30V DC and 250V AC for resistive load. Coil Resistance : 20,200 Ohms +/- 10%. Coil Voltage : 230 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 11 mA per channel PCB Dimension : 375 mm X 72 mm. Mechanical Dimensions : 379 mm X 90 mm X 70mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer : OMRON Relay Type : G2R-2, Electro-mechanical Contact Type : 2 Change Over

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 5A at 30V DC and 250V AC for resistive load. Coil Resistance : 20.20 K Ohms + 10%. Coil Voltage : 230 V AC Input Current/ Channel : 12 mA per channel Mechanical Dimensions : 33 mm X 78 mm X 66 mm
