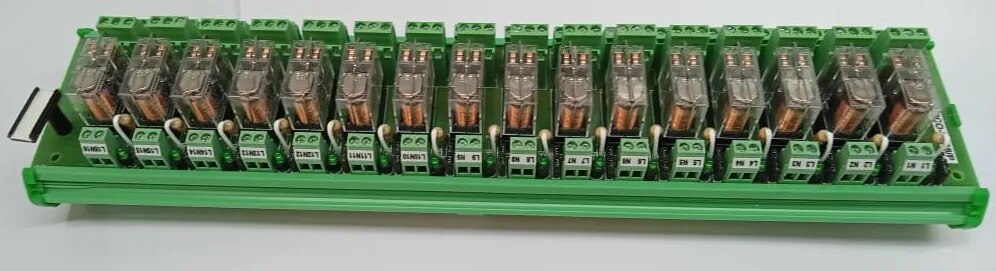

Relay Interfacing Module RP230A16-2CO-M-B8/P

Din Rail Mounting

Solderable Relay

20,000,000 Mechanical operations minimum.

30,000 Electrical operations minimum.

Operating Temperature : 0 to 50 degree Celsius

Storage Temperature : -10 to 60 degree Celsius

Relative Humidity : 5 to 85% RH

Relay ON Indication : Green Color LED

Relay Protection Method : Freewheeling Diode

Designation : Designation plate screwed to the PCB for labeling purpose

No of Relay Channel : 16 Channel

Rating of Contacts : 5A at 30V DC and 250V AC for resistive load.

Coil Resistance : 20,200 Ohms +/- 10%.

Coil Voltage : 230 V AC

Relay Socket : 5 A, 250 V AC

Input Current/ Channel : 11 mA per channel

PCB Dimension : 375 mm X 72 mm.

Mechanical Dimensions : 379 mm X 90 mm X 70mm

Terminals : Screw type

Conductor size : 0.25 -2.5 sq.mm flexible

Relay Make / Manufacturer : OMRON

Relay Type : G2R-2, Electro-mechanical

Contact Type : 2 Change Over
