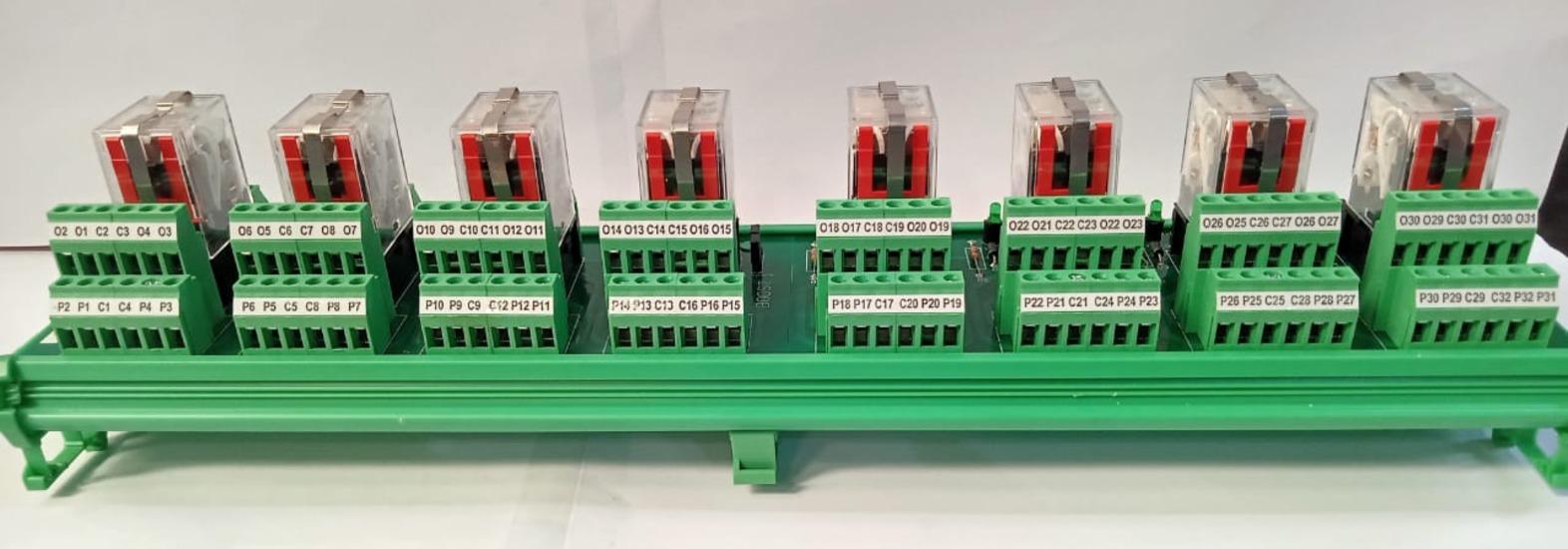

Din Rail Mounting Pluggable Relay 50,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 3 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4430 Ohms +/- 10%. Coil Voltage : 110V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 25 mA per channel PCB Dimension : 354 mm X 72 mm. Mechanical Dimensions : 358 mm X 90 mm X 81 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: MY4, Electro-mechanical

Din Rail Mounting Pluggable Relay 50,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 4 Channel Rating of Contacts : 3 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4430 Ohms +/- 10%. Coil Voltage : 110V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 25 mA per channel PCB Dimension : 180 mm X 72 mm. Mechanical Dimensions : 184 mm X 90 mm X 81 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: MY4, Electro-mechanical

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 20,200 Ohms +/- 10%. Coil Voltage : 230 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 11 mA per channel PCB Dimension : 375 mm X 72 mm. Mechanical Dimensions : 379 mm X 90 mm X 70 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-2, Electro-mechanical Contact Type: 2 Change Over Packaging Details - In corrugated box with bubble sheet.

Din Rail Mounting Pluggable Relay 100,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Channels : 08 Brand : BOOST Material PCB : FR4, Glass Epoxy Usage/Application : Industrial Relay Type : MY4, Electro-mechanical. Coil Voltage : 24 V DC Ambient Operating Temperature : 0 to 50 degree Celsius. Relay Current : 36 mA @ 24 V DC / Channel Size : 360 mm X 90 mm X 83 mm Model Name/Number : RP24D08-4CO-M-B14/P Frequency : 50 Hz Input Current : 36 mA @ 24 V DC per channel Shape : Rectangular Number Of Channel : 08 Packaging Type : corrugated box Relay : MY4, Electro-mechanical, OMRON Switching Frequency : 50 Hz Temperature : 0 to 50 degree Celsius Country of Origin : Made in India Minimum Order Quantity : 1 Number

Din Rail Mounting Solderable Relay 100,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Usage/Application - For Control Panel Use Brand - Boost Number Of Poles - 4 Pole Coil Voltage - 24 V DC Channels - 01 Relay Type - MY4, Electro-mechanical, OMRON Size - 54 mm X 90 mm X 80 mm Shape - Rectagular Item No - RP24D01-4CO-M-B14/P Country of Origin - Made in India Minimum Order Quantity - 1 Number

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 5A at 30V DC and 250V AC for resistive load. Coil Resistance : 20,200 Ohms +/- 10%. Coil Voltage : 230 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 11 mA per channel PCB Dimension : 375 mm X 72 mm. Mechanical Dimensions : 379 mm X 90 mm X 70mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer : OMRON Relay Type : G2R-2, Electro-mechanical Contact Type : 2 Change Over

Din Rail Mounting Pluggable Relay 100,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius. Storage Temperature: -10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH. Relay ON Indication : Green color LED. Designation: Designation plate screwed to the PCB for Labeling purpose.

Din Rail Mounting Pluggable Relay 100,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Relays (Standard/Approvals) : CSA Certified : UL Recognized. : EN, TUV Certified. Terminals (Standard/Approvals) : EN, TUV Certified : UL Canadian Approval. : RoHS COC. : CE Approval by UL1. : NO CE Third Party Witness Testing.

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum.
