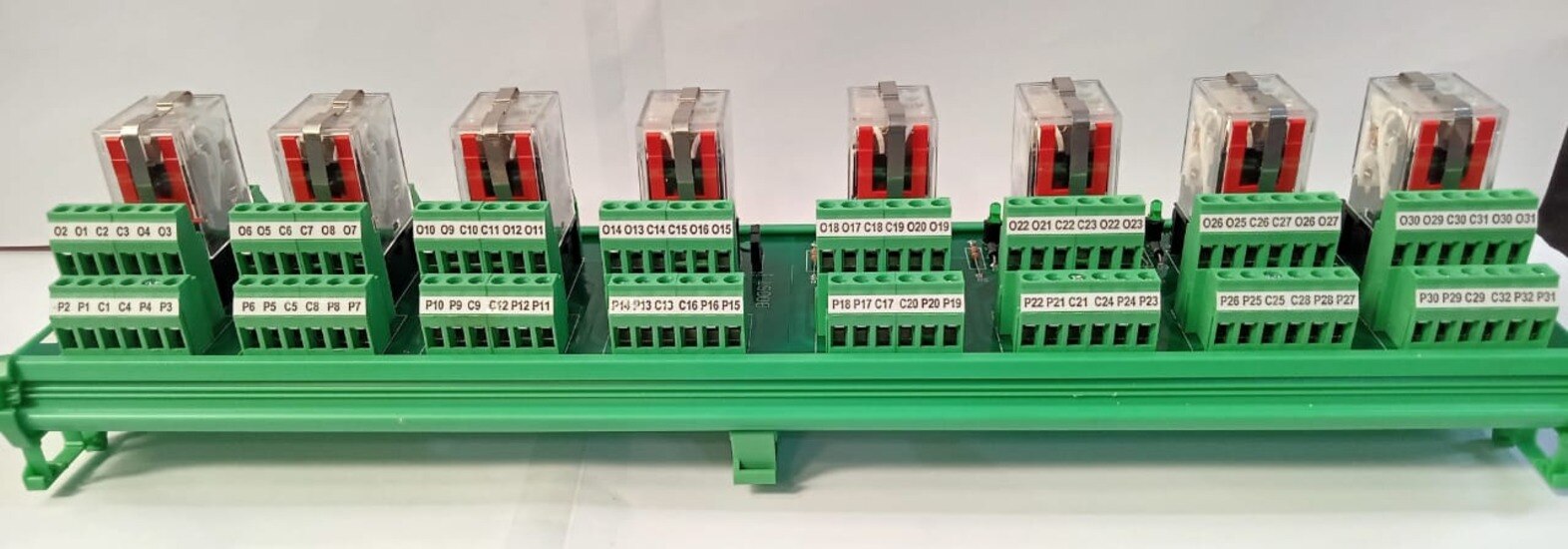

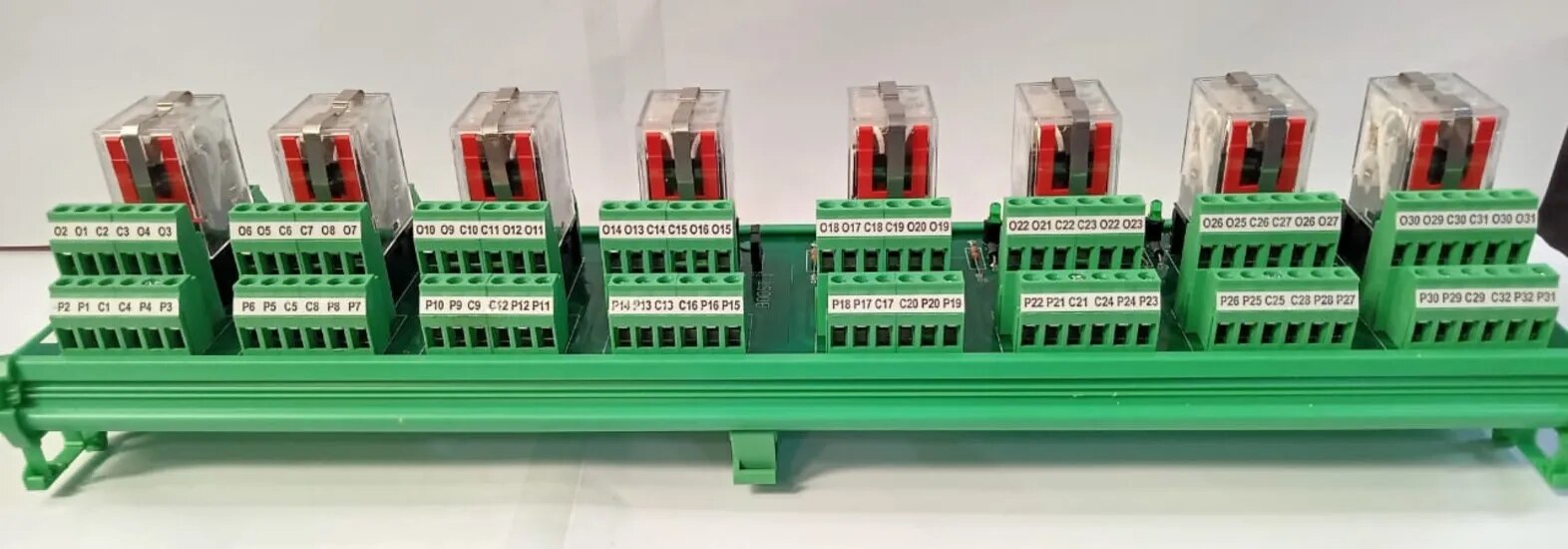

Relay Interfacing Module RP230A08-4CO-M-B14/P

Relay Interfacing Module by Boost Electronics

Relay Interfacing Module RP230A08-4CO-M-B14/P

Contact Us

Phone Number

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

Specifications

No of Relay Channel 08 Channels
Rating of Contacts 3 Amp at 24 V DC & 220 V AC for Resistive loads
Coil Resistance 662 Ohms ±10%
Contact Type 4 Change Over
Coil Voltage 230 V AC
Relay Socket 5 Amp, 250 V AC
Input Current/ Channel 347 mA @ 230 V AC
Size 360 mm X 90 mm X 83 mm
Terminals Screw type
Conductor size 0.25 to 2.5 sq. mm flexible
Relay Make / Manufacturer OMRON
Relay Type MY4, Electro-mechanical
Contact Type 4 Change Over
