Din Rail Mounting Pluggable Relay 50,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 3 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4430 Ohms +/- 10%. Coil Voltage : 110V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 25 mA per channel PCB Dimension : 354 mm X 72 mm. Mechanical Dimensions : 358 mm X 90 mm X 81 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: MY4, Electro-mechanical

Din Rail Mounting Pluggable Relay 50,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 4 Channel Rating of Contacts : 3 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4430 Ohms +/- 10%. Coil Voltage : 110V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 25 mA per channel PCB Dimension : 180 mm X 72 mm. Mechanical Dimensions : 184 mm X 90 mm X 81 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: MY4, Electro-mechanical

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4600 Ohms +/- 10%. Coil Voltage : 110V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 24 mA per channel PCB Dimension : 120mm X 72 mm. Mechanical Dimensions : 125 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical

16 Channel relay Module, Coil : 110 V AC, 1 NO Din Rail Mounting Pluggable Relay 18,000 Mechanical operations minimum. 1,800 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4600 Ohms +/- 10%. Coil Voltage : 110 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 24 mA per channel PCB Dimension : 330 mm X 108 mm. Mechanical Dimensions : 334 mm X 128 mm X 60 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 NO Packaging Details - In corrugated box with bubble sheet.

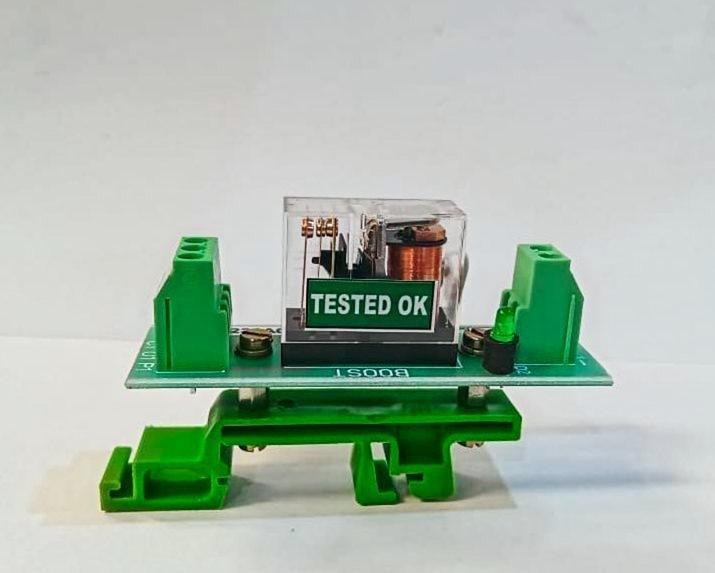

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4600 Ohms +/- 10%. Coil Voltage : 110 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 24 mA per channel PCB Dimension : 24 mm X 78 mm. Mechanical Dimensions : 24 mm X 78 mm X 53 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer : OMRON Relay Type : G2R-1, Electro-mechanical Contact Type : 1 Change Over

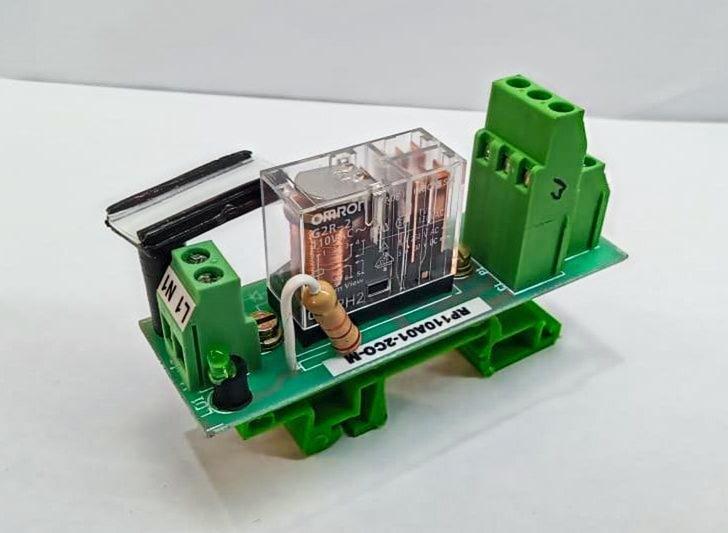

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 1 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4660 Ohms +/- 10%. Coil Voltage : 100V AC Relay Socket : NA Input Current/ Channel : 24 mA per channel PCB Dimension : 28 mm X 84 mm. Mechanical Dimensions : 28 mm X 84 mm X 60 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer : OMRON Relay Type : G2R-2, Electro-mechanical Contact Type : 2 Change Over

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 5A at 30V DC and 250V AC for resistive load. Coil Resistance : 4600 Ohms + 10%. Coil Voltage : 110 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 24 mA per channel

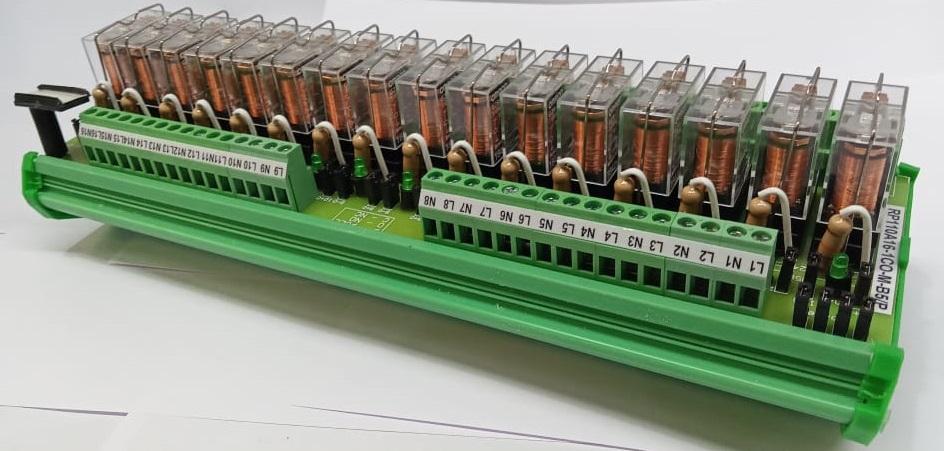

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4600 Ohms + 10%. Coil Voltage : 110 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 24 mA per channel

Din Rail Mounting Pluggable Relay 1,00,00,000 Mechanical operations minimum. 1,00,000 Electrical operations minimum. Operating Temperature :- 0 to 50 degree Celsius. Storage Temperature : -10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH Relay ON Indication : Green color LED. Relay Protection Method: Freewheeling Diode. Designation : Designation plate screwed to the PCB for labeling purpose.
