Relay Interfacing Module by Boost Electronics

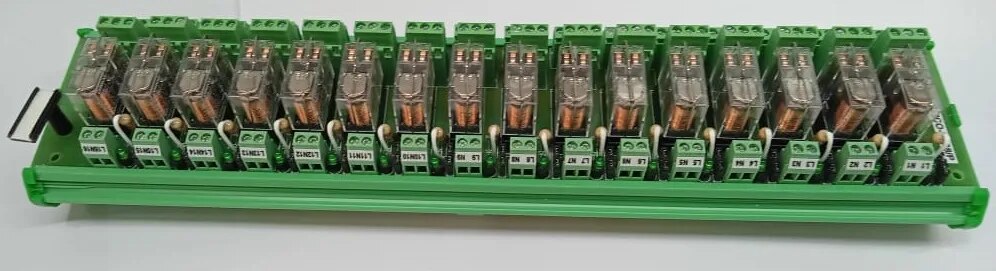

Relay Interfacing Module RP110A16-2CO-M-B5/P

Phone Number

08048036394

Please keep 0 before dialling the number.

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 5A at 30V DC and 250V AC for resistive load. Coil Resistance : 4600 Ohms + 10%. Coil Voltage : 110 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 24 mA per channel

No of Relay Channel	16
Contact Type	02 Change Over
Contact Type	02 Change Over
Contact Type	02 Change Over
Contact Type	02 Change Over
Relay Type	G2R-2, Electro-mechanical
Relay Make / Manufacturer	OMRON
Conductor size	0.25 -2.5 sq.mm flexible
Contact Type	02 Change Over
Contact Type	02 Change Over
Contact Type	02 Change Over
Rating of Contacts	5 A at 30V DC and 250V AC for resistive load
Coil Resistance	4600 Ohms + 10%.
Coil Voltage	110 V AC
Relay Socket	5 A, 250 V AC
Input Current/ Channel	24 mA per channel
Mechanical Dimensions	379 mm X 90 mm X 70 mm
Terminals	Screw type
Contact Type	02 Change Over
Contact Type	02 Change Over
Contact Type	02 Change Over
Contact Type	02 Change Over
Contact Type	02 Change Over
Terminals	Screw type
Mechanical Dimensions	379 mm X 90 mm X 70 mm
Input Current/ Channel	24 mA per channel
Relay Socket	5 A, 250 V AC
Coil Voltage	110 V AC
Coil Resistance	4600 Ohms + 10%.
Rating of Contacts	5 A at 30V DC and 250V AC for resistive load
