Relay Module RP24D08-2CO-OEN/P in Relay Interfacing Module by Boost, 08

Chat with us

Relay Interfacing Module by Boost

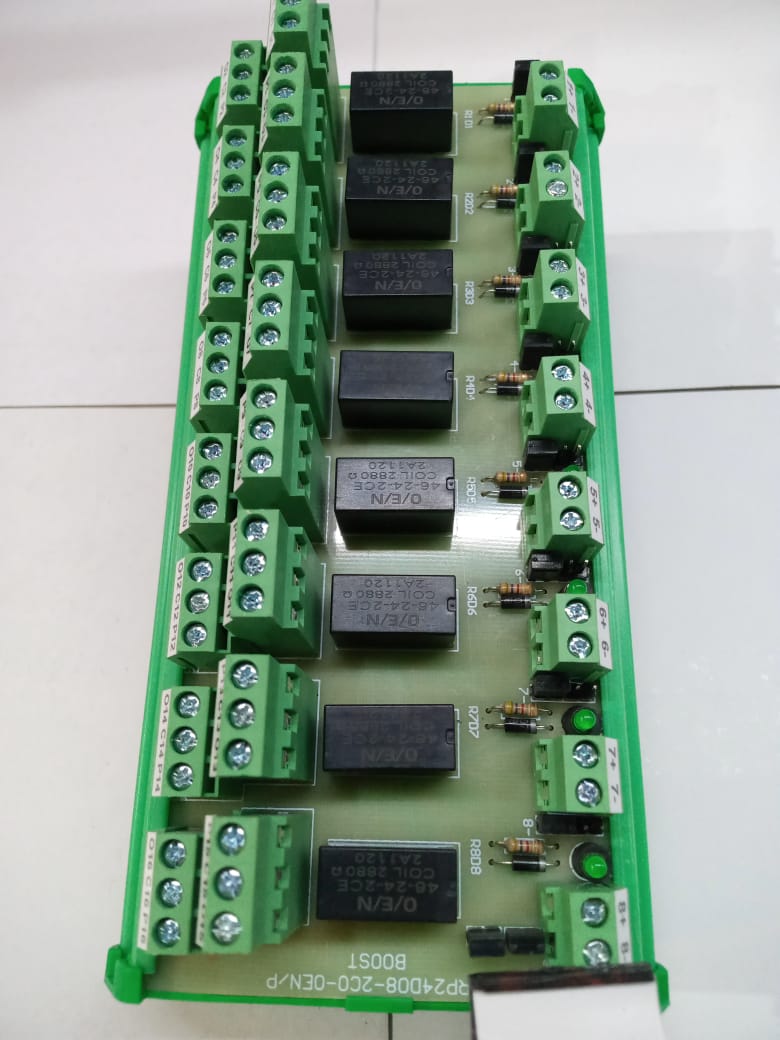

Relay Module RP24D08-2CO-OEN/P

Phone Number

08048036394

Please keep 0 before dialling the number.

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

Din Rail Mounting Pluggable Relay 1,00,00,000 Mechanical operations minimum. 1,00,000 Electrical operations minimum. Operating Temperature :- 0 to 50 degree Celsius. Storage Temperature : -10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH Relay ON Indication : Green color LED. Relay Protection Method: Freewheeling Diode. Designation : Designation plate screwed to the PCB for labeling purpose.

Specifications

No of Relay Channel	08
Input Current/ Channel	8 mA @ 24 V DC
Coil Voltage	24 V DC
Coil Resistance	2,880 Ohms +/-10%
Rating of Contacts	2 Amp at 30 V DC & 125 V AC
