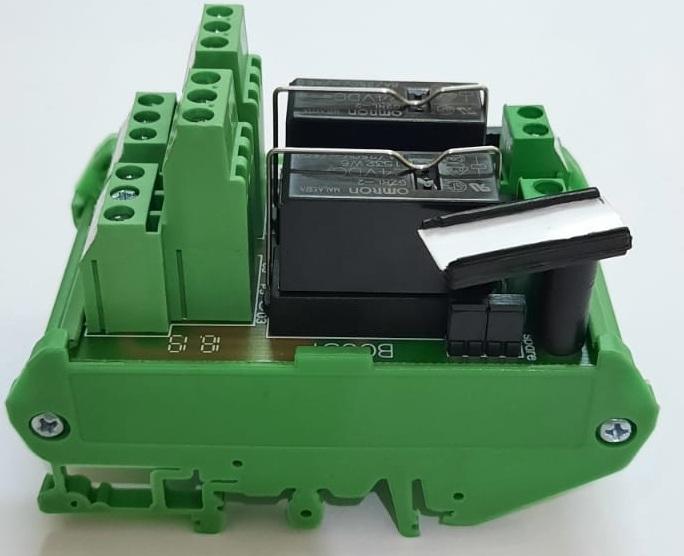

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for Labeling purpose No of Relay Channel : 02 Channel Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load. Coil Resistance : 20.2 KOhms + 10%. Coil Voltage : 230 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 11 mA per channel PCB Dimension : 51 mm X 72 mm. Mechanical Dimensions : 54 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer : OMRON Relay Type : G2R-1, Electro-mechanical Contact Type : 02 Change Over

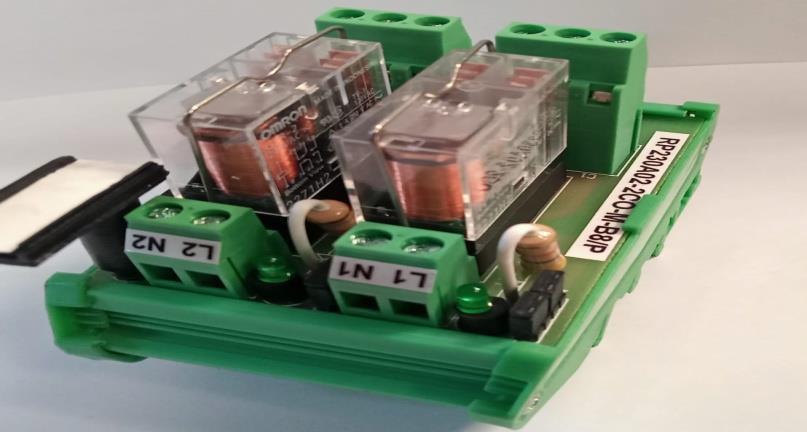

Product Name:- Relay Module Type No:- RP24D02-2CO-M-B8-P No. of Relay:- 02 Coil Voltage:- 24 Volt DC Contact Configuration:- 02 C/O Relay module with socket.

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum.

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 2 Channel Rating of Contacts : 8A at 30V DC and 250V AC for resistive load. Coil Resistance : 1,440 Ohms +/- 10%. Coil Voltage : 24 V DC Input Current/ Channel : 17 mA per channel PCB Dimension : 52 mm X 72 mm. Mechanical Dimensions : 55 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2RL-2, Electro-mechanical Contact Type: 2 Change Over Packaging Details - In corrugated box with bubble sheet.

Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 2 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 1,440 Ohms +/- 10%. Coil Voltage : 24 V DC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 10 mA per channel PCB Dimension : 52 mm X 72 mm. Mechanical Dimensions : 55 mm X 90 mm X 70 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 Change Over Packaging Details - In corrugated box with bubble sheet.

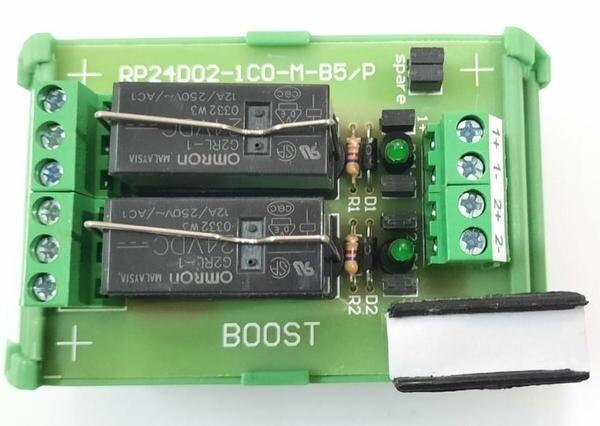

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 2 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 1,440 Ohms +/- 10%. Coil Voltage : 24 V DC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 17 mA per channel PCB Dimension : 52 mm X 72 mm. Mechanical Dimensions : 55 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer : OMRON Relay Type : G2RL-1, Electro-mechanical Contact Type : 1 Change Over

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum.

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum.

Product Name: Relay Module Operating Temperature : 0 to 50 degree Celsius. Storage Temperature : 10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH. Relay ON Indication : Green color LED. Relay Protection Method : Freewheeling Diode Designation :Designation plate screwed to the PCB for labeling purpose. Rating of Contacts : 5 Amp at 24 V DC & 230 V AC for Resistive load. Coil Resistance : 662 Ohms. Conductor size : 0.25 to 2.5 sq.mm flexible. Relay Make / Manufacturer : OMRON
