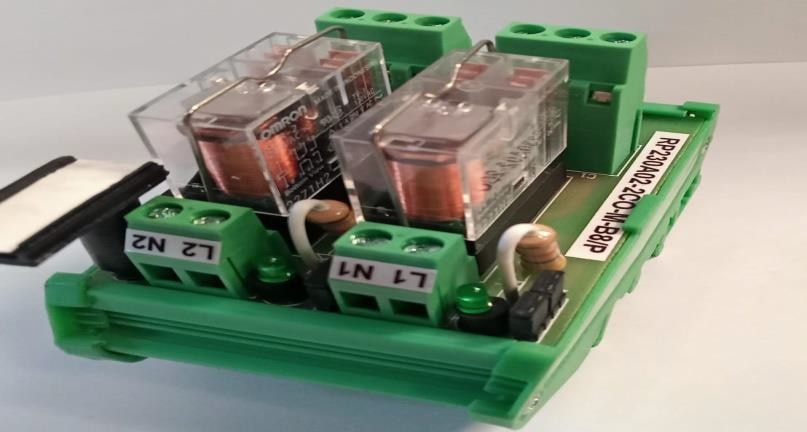

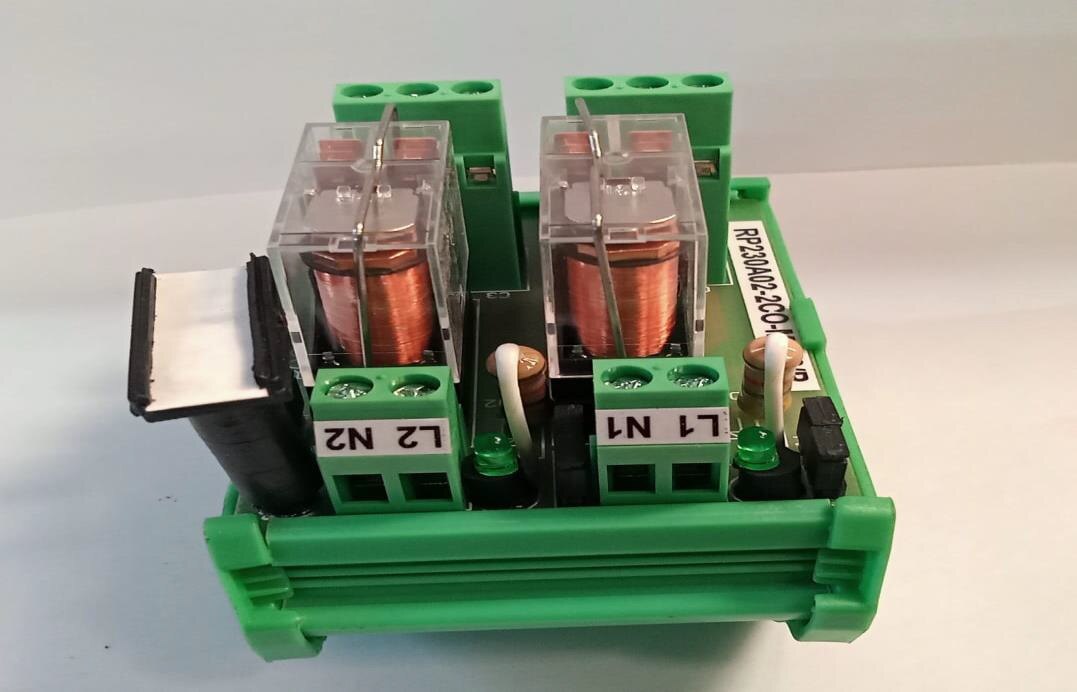

Relay Interfacing Module RP230A02-2CO-M-B8/P

Din Rail Mounting

Pluggable Relay

10,000,000 Mechanical operations minimum.

100,000 Electrical operations minimum.

Operating Temperature : 0 to 50 degree Celsius

Storage Temperature : -10 to 60 degree Celsius

Relative Humidity : 5 to 85% RH

Relay ON Indication : Green Color LED

Relay Protection Method : NA

Designation : Designation plate screwed to the PCB for

Labeling purpose

No of Relay Channel : 02 Channel

Rating of Contacts : 5 A at 30V DC and 250V AC for resistive load.

Coil Resistance : 20.2 KOhms + 10%.

Coil Voltage : 230 V AC

Relay Socket : 5 A, 250 V AC

Input Current/ Channel : 11 mA per channel

PCB Dimension : 51 mm X 72 mm.

Mechanical Dimensions : 54 mm X 90 mm X 66 mm

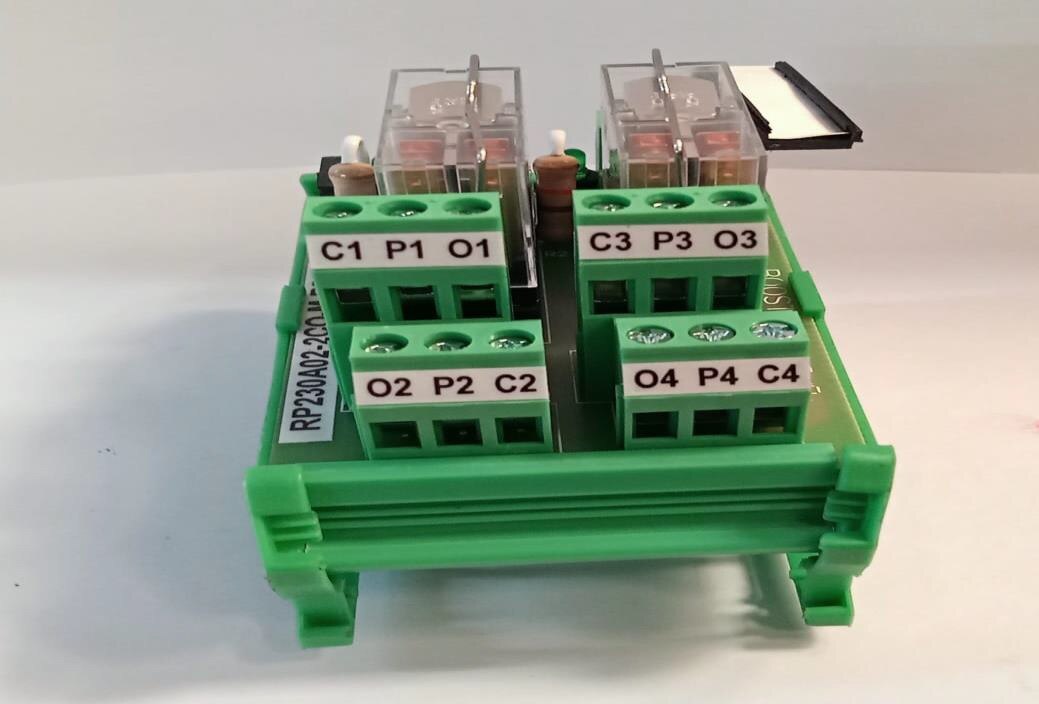

Terminals : Screw type

Conductor size : 0.25 -2.5 sq.mm flexible

Relay Make / Manufacturer : OMRON

Relay Type : G2R-1, Electro-mechanical

Contact Type : 02 Change Over
