Name: Relay Interfacing Module RP24D02-2CO-M-B8/P
Brand: Boost Electronics
Availability: InStock

Chat with us

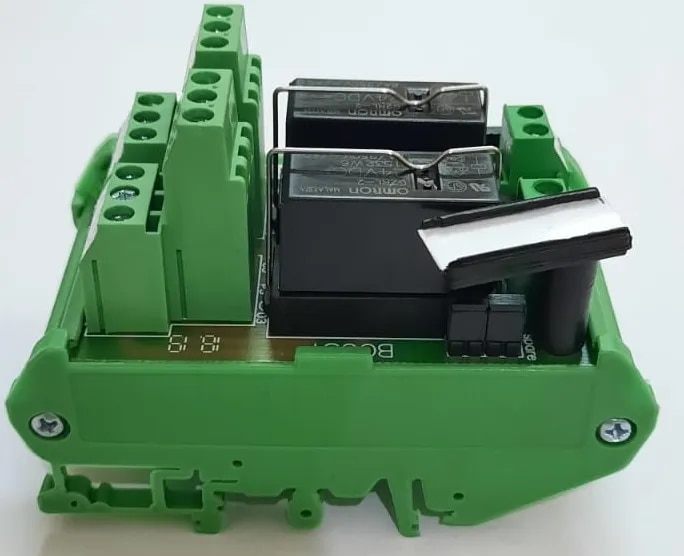

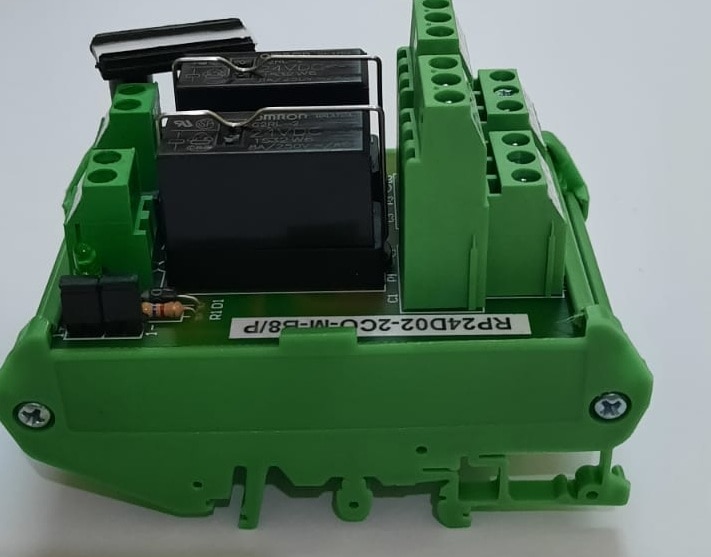

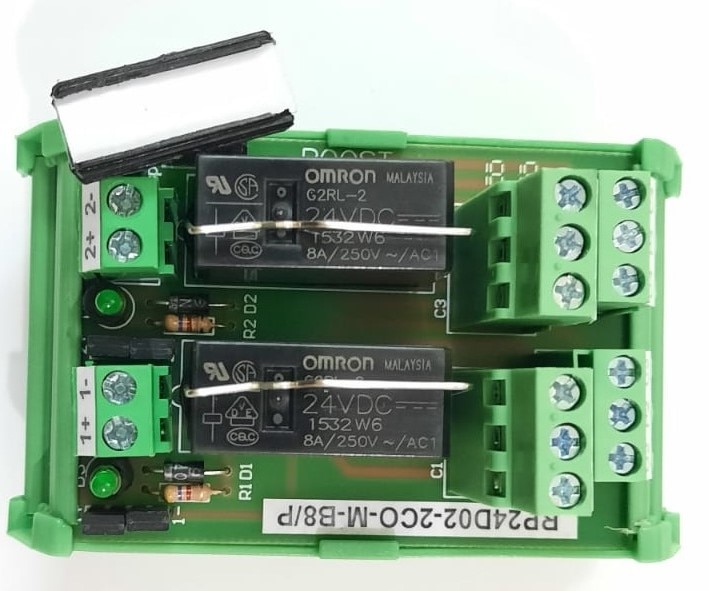

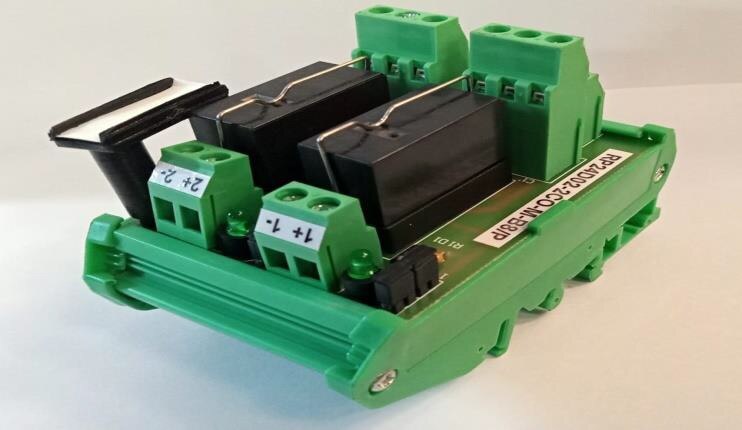

Relay Interfacing Module by Boost Electronics

Relay Interfacing Module RP24D02-2CO-M-B8/P

Phone Number

08048036394

Please keep 0 before dialling the number.

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum.

Specifications

No of Relay Channel	02
Coil Resistance	1,440 Ohms + 10%.
Contact Type	2 Change Over
Coil Voltage	24 V DC
Relay Socket	5 A, 250 V AC
Input Current/ Channel	17 mA per channel
Rating of Contacts	8 A at 30V DC and 250V AC for resistive load
Mechanical Dimensions	55 mm X 90 mm X 66 mm
Terminals	Screw type
Conductor size	0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer	OMRON
Relay Type	G2R-2, Electro-mechanical
Contact Type	2 Change Over
