relay interfacing module

Product Name: Relay Module Product Code: RP24D04-2CO- M-B8/P No of Relay Channel : 04 Channel Rating of Contacts : 8 Amp at 30 V DC & 250 V AC for Resistive load Coil Resistance : 2,304 Ohms +/-10% Coil Voltage : 24 V DC Relay socket : 5 A, 250 V AC Relay Make / Manufacturer : OMRON. Relay Type : Electro-mechanical, G2RL-2 Contact Type : 2 Change Over. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : 10 to 60 degree Celsius Relative Humidity : 5 to 95% RH Relay ON Indication : Green Color Led Relay Protection Method : Freewheeling Diode

Product Name: Relay Module Product No: RP230A08-1CO-M-B5-P No of Relay Channel : 08 Channel. Rating of Contacts : 5 Amp at 30 V DC & 250 V AC for Resistive load. Coil Resistance : 20.20 K Ohms +/-10%.Coil Voltage : 230 V AC. Relay Socket : 5 A, 250 V AC. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : 10 to 60 degree Celsius Relative Humidity : 5 to 95% RH Relay ON Indication : Green Color LedRelay Protection Method : Freewheeling DiodeDesignation : Designation plate screwed to the PCB for labelingpurpose

Operating Temperature : 0 to 50 degree Celsius Storage Temperature : 10 to 60 degree Celsius Relative Humidity : 5 to 95% RH Relay ON Indication : Green Color Led Relay Protection Method : Freewheeling DiodeDesignation : Designation plate screwed to the PCB for labeling purpose Rating of Contacts : 10 Amp at 30 V DC & 250 V AC for Resistive load. Relay Socket :Rating- 5 A, 250 V AC. Terminals : Screw type.Contact Type : 1 Change Over. Relay Make / Manufacturer : OMRON

Input Current/ Channel : 12 mA @ 24 V DC. Terminals : Screw type. Conductor size : 0.25 -2.5 sq.mm flexible. Relay Make / Manufacturer : OMRON. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : 10 to 60 degree Celsius Relative Humidity : 5 to 95% RH Relay ON Indication : Green Color Led Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose

Coil Resistance : 662 Ohms. Coil Voltage : 24 V DC. Rating of Contacts : 5 Amp at 24 V DC & 230 V AC for Resistive load. Relative Humidity : 5 to 85% RH. Relay ON Indication : Green color LED. Relay Protection Method : Freewheeling Diode Designation :Designation plate screwed to the PCB for labeling purpose.

Product Name:- Relay Module Type No:- RP24DO1-2CO-M-B8-P No. of Relay:- 01 Coil Voltage:- 24 Volt DC Contact Configuration:- 02 C/O Relay module with socket.

Product Name:- Relay Module Type No:- RP24D08-1CO-M-B5-P No. of Relay:- 08 Coil Voltage:- 24 Volt DC Contact Configuration:- 01 C/O Relay module with socket.

Product Name:- Relay Module Type No:- RP24DO1-2CO-M-B8-P No. of Relay:- 01 Coil Voltage:- 24 Volt DC Contact Configuration:- 02 C/O Relay module with socket.

Product Name:- Relay Module Type No:- RP230A04-2CO-M-B8-P No. of Relay:- 04 Coil Voltage:- 230 Volt AC Contact Configuration:- 02 C/O Relay module with socket.

Product Name:- Relay Module Type No:- RP24D02-2CO-M-B8-P No. of Relay:- 02 Coil Voltage:- 24 Volt DC Contact Configuration:- 02 C/O Relay module with socket.

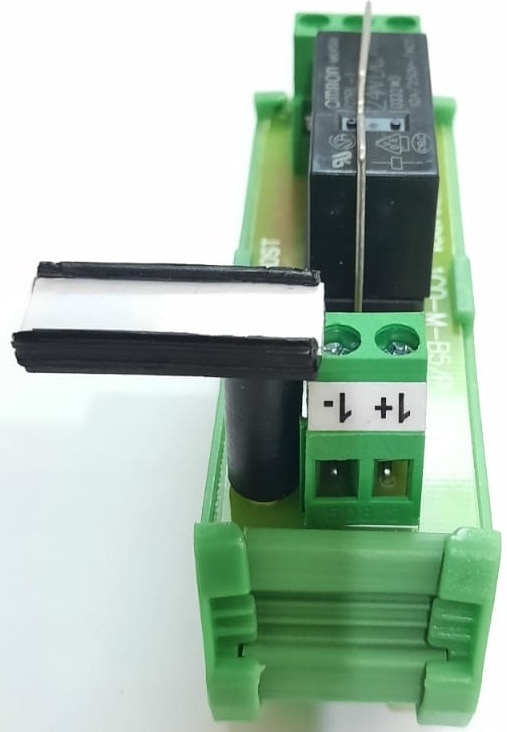

Product Name:- Relay Module Type No:- RP110A01-1CO-M-B5-P No. of Relay:- 01 Coil Voltage:- 110 Volt AC Contact Configuration:- 01 C/O Relay module with socket.

Product Name:- Relay Module Type No:- RP24D04-1CO-M-B5-P No. of Relay:- 04 Coil Voltage:- 24 Volt DC Contact Configuration:- 01 C/O Relay module with socket.
