FIM With 25 Pin D Type Connector

Field Interfacing Module by Boost

FIM With 25 Pin D Type Connector

Contact Us

Phone Number

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

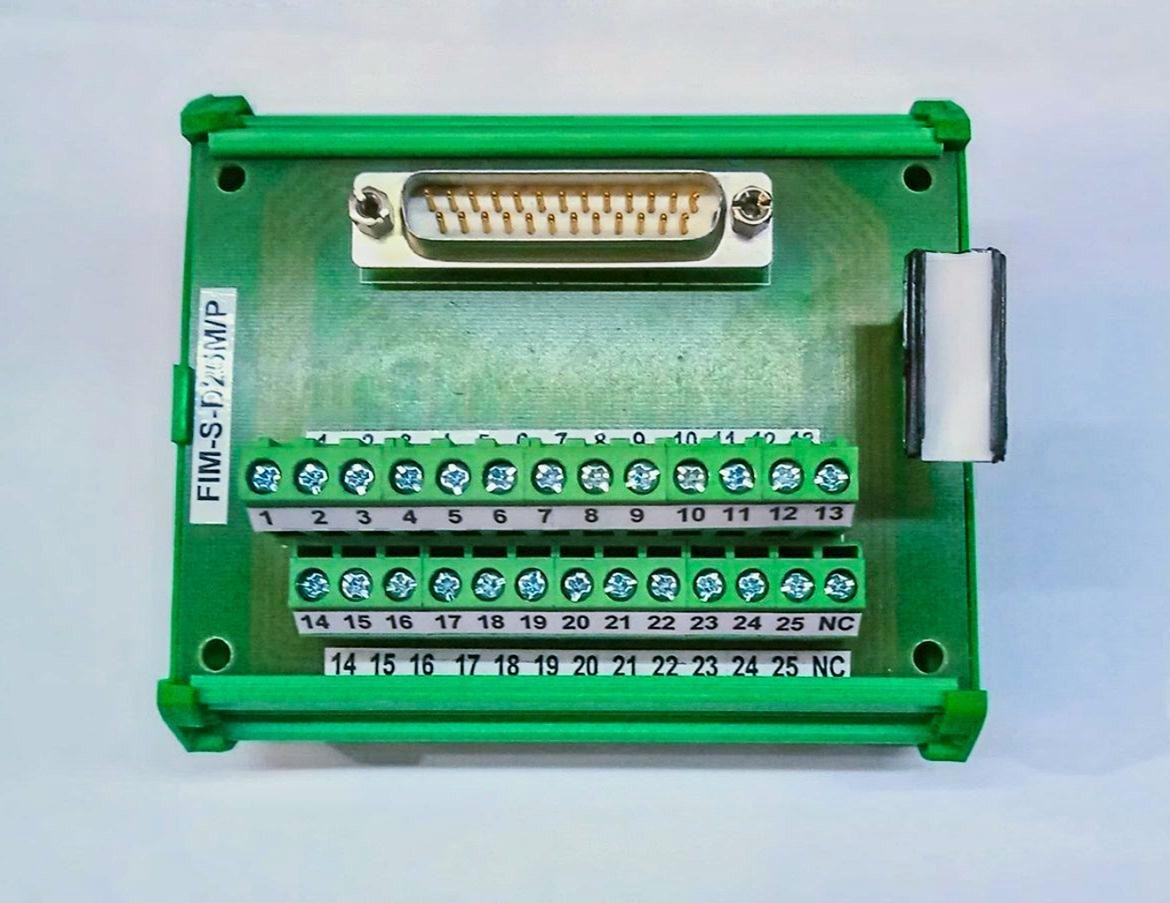

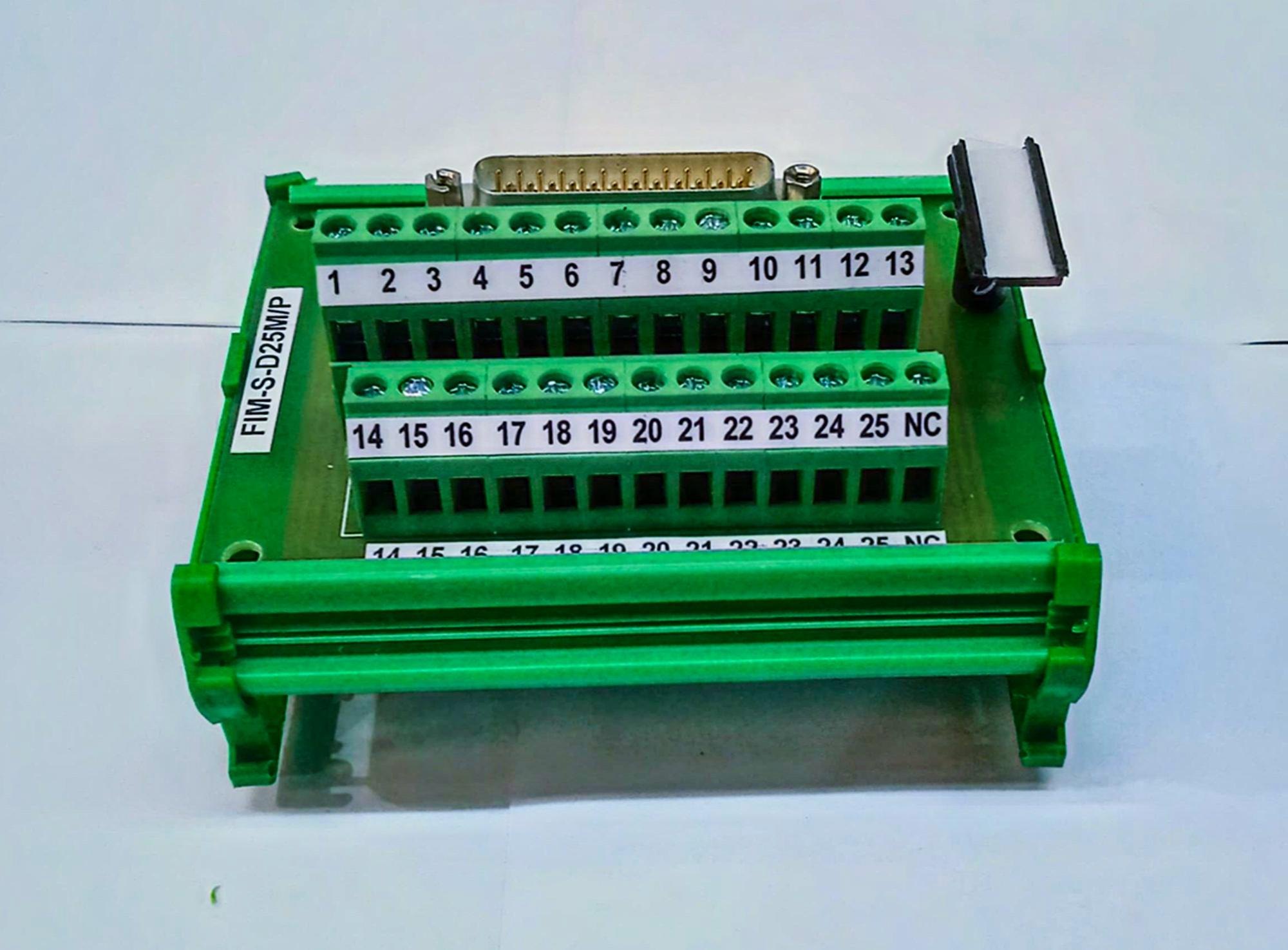

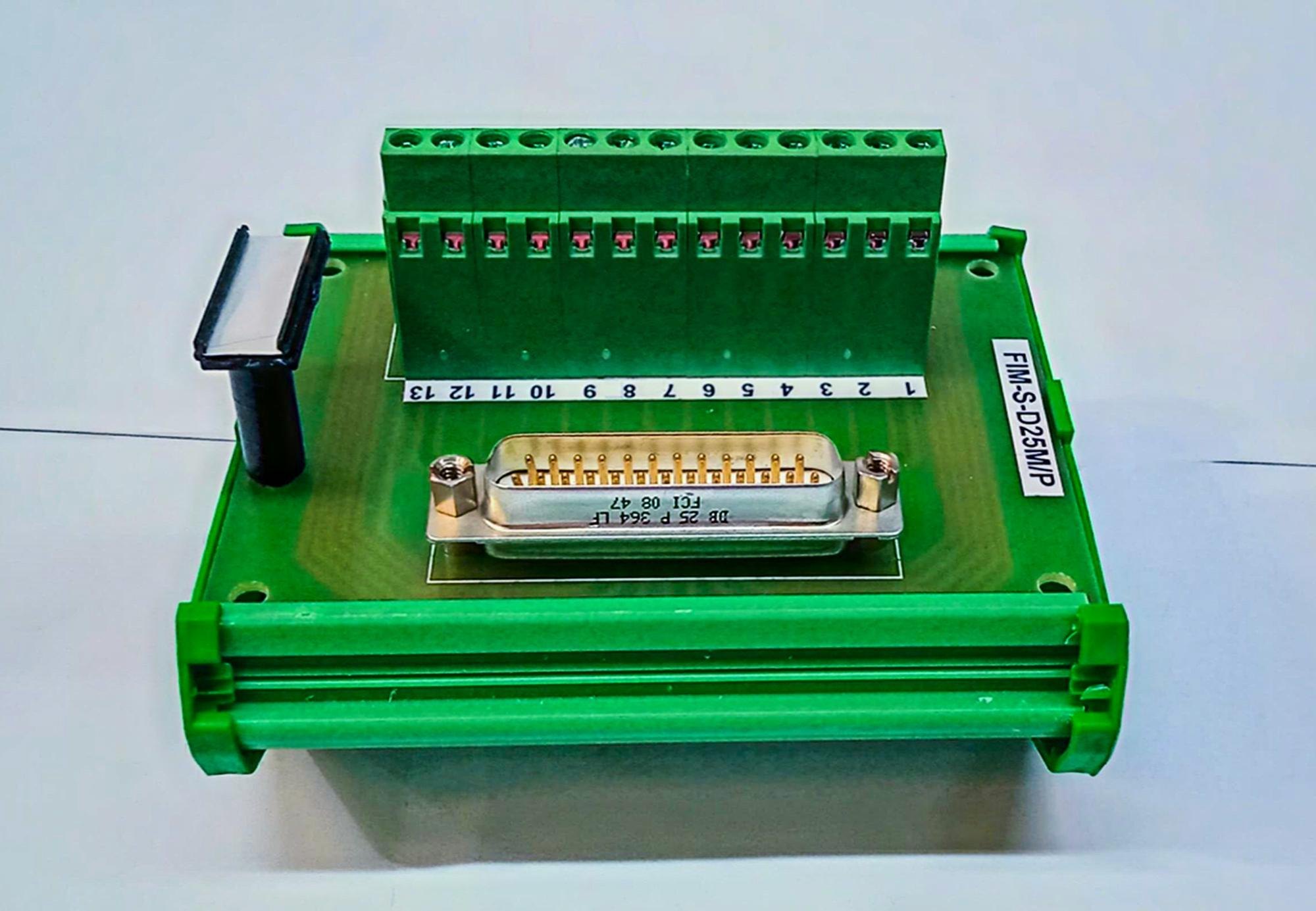

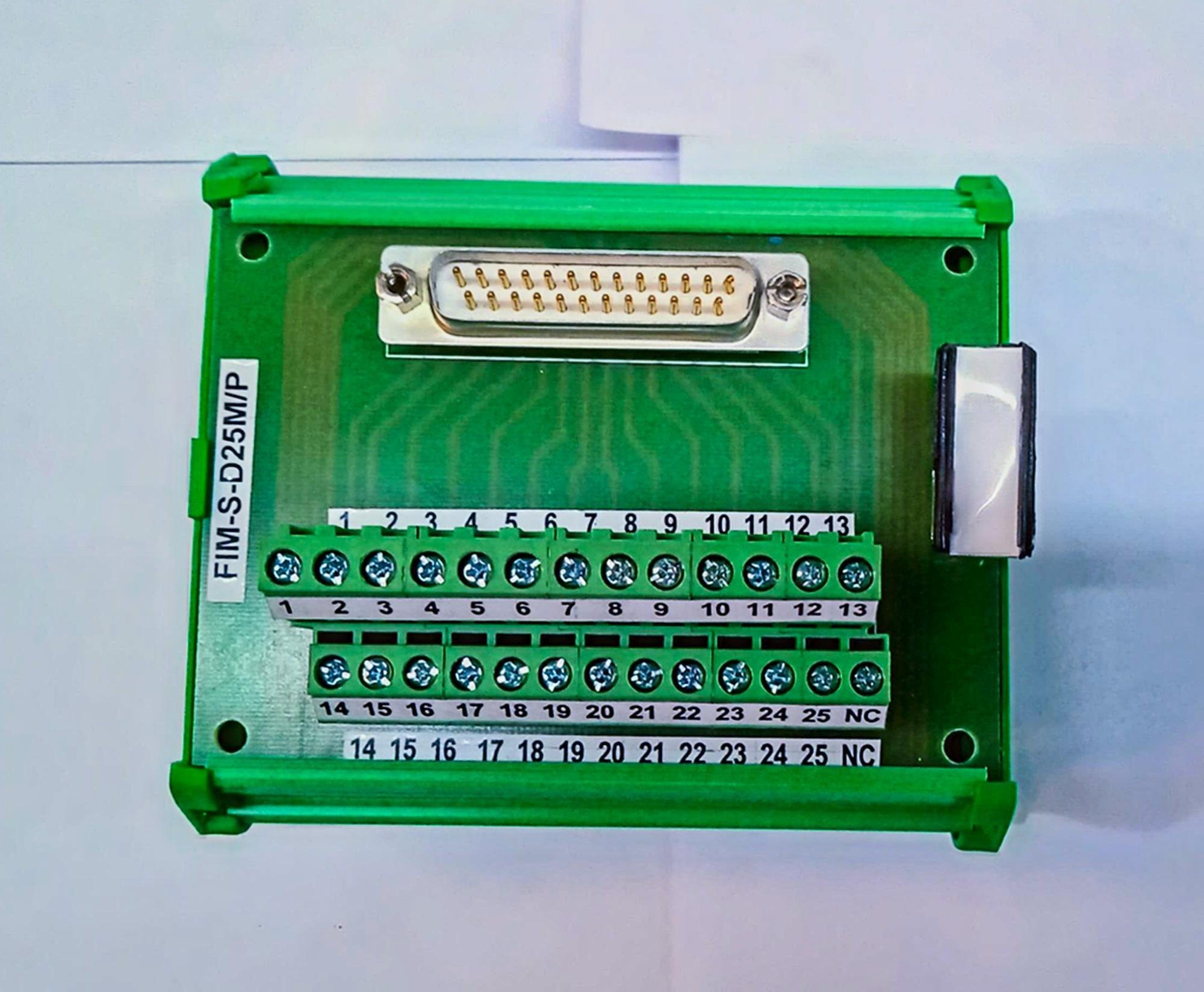

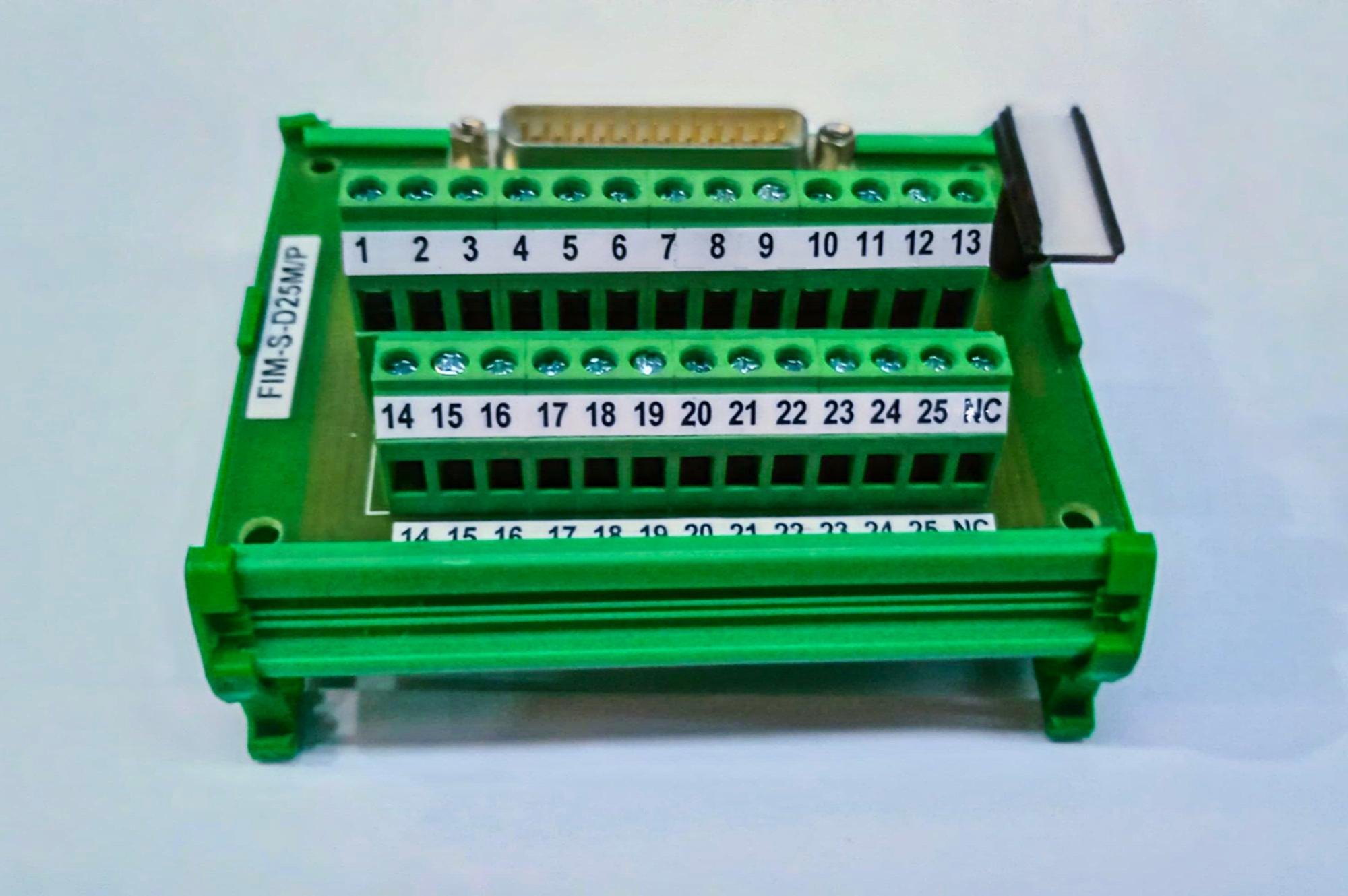

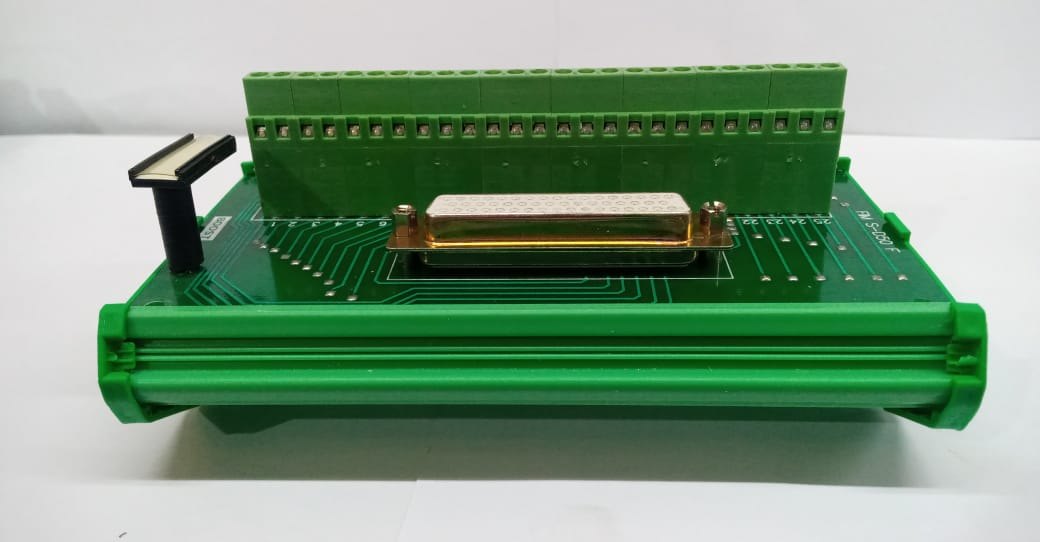

Construction: PCB assembly suitable for DIN Rail mounting comprising of: 1. Interface To Field Side Through: 25 no’s of screw terminals with terminal markers 1 to 25. 2. Interface To Cable Side Through: 1 no. of 25 pin male D connector, Type – 25 Pin Straight Connector: OEN 3. Designation plate screwed to the PCB for labeling purpose.

Specifications

Type of Connector D
No of Pins 25
Size 102 mm X 90 mm X 66 mm
PCB Dimension 100 mm x 72 mm
