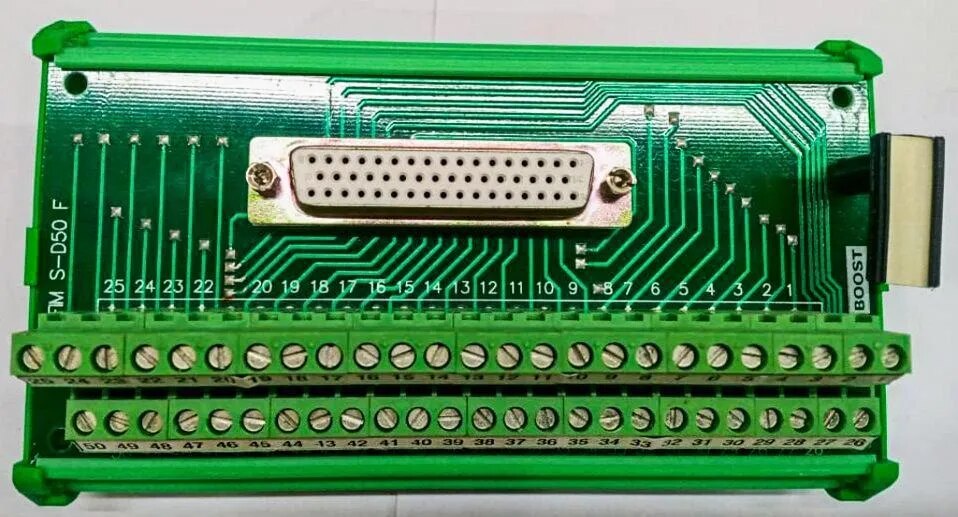

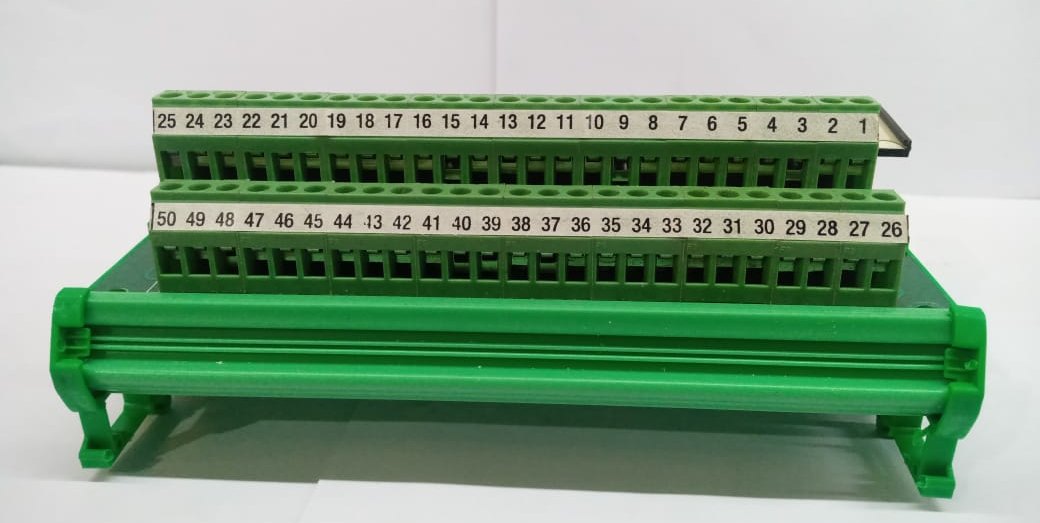

FIM With 50 Pin D Type Connector

Field Interfacing Module by Boost

FIM With 50 Pin D Type Connector

Contact Us

Phone Number

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address

Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India, Nashik

Description

Construction: PCB assembly suitable for DIN Rail mounting comprising of: 1. Interface To Field Side Through: 50 no’s of screw terminals with terminal markers 1 to 50. 2. Interface To Cable Side Through: 1 no. of 50 pin male D connector Type – 50 Pin Straight Connector: OEN 3. Designation plate screwed to the PCB for labeling purpose.

Specifications

Connector Type D
No Of Pins 50
Ordering Type No FIM-S-D50-M/P

Keywords

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
Relay Interfacing Module

Relay Board RP24D02-1CO-OF-M-B5/P

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum.

6814772a5d263414004dd4a4 Card 2

product image
Relay Interfacing Module

Relay Module RP24D08-2CO-OEN/P

Din Rail Mounting Pluggable Relay 1,00,00,000 Mechanical operations minimum. 1,00,000 Electrical operations minimum. Operating Temperature :- 0 to 50 degree Celsius. Storage Temperature : -10 to 60 degree Celsius. Relative Humidity : 5 to 85% RH Relay ON Indication : Green color LED. Relay Protection Method: Freewheeling Diode. Designation : Designation plate screwed to the PCB for labeling purpose.

6814772a5d263414004dd4a4 Card 2

product image
Cable Assembly

Cable Assembly CA-D50-50D-1.52 MTR

Length1.52 MTR Packaging TypeBox CableSheilded Cross section0.25 sq. mm ColorGrey JacketPVC Type of Connector D type Dust Cover MaterialPVC with Chrome Plating Country of Origin Made in India
