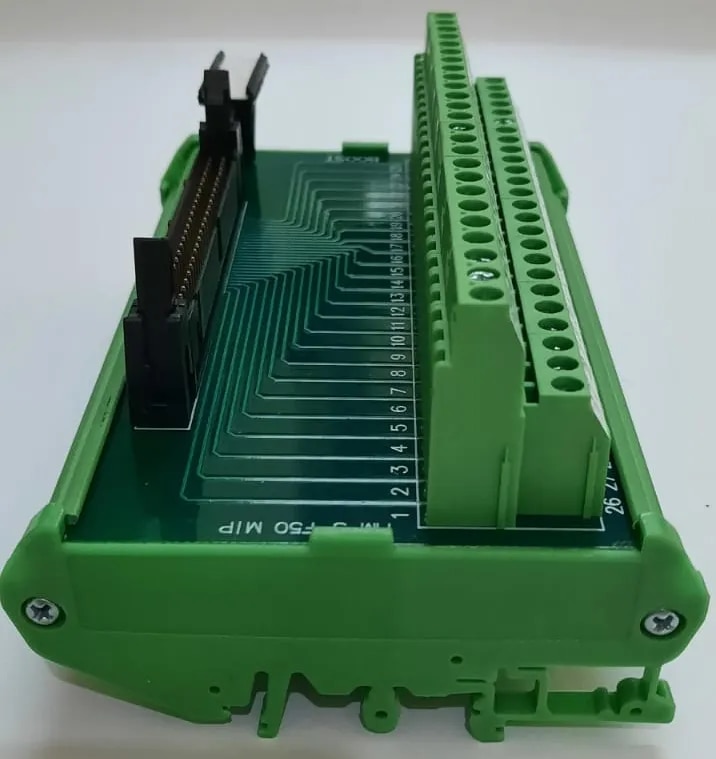

FIM-S-F50-M-P Field Interfacing Module

Field Interfacing Module

Terminal Connection

Field side terminal connection: Screw terminal, 0.25²mm to 2.5²mm conductor

System side terminal connection:50 pin male FRC connector

Terminal Markings:The terminals shall be marked from 1 to 50 as per the Electrical Layout Drawing

Designation: Designation plate screwed to the PCB for labeling

Terminals Approvals & Standard:UL US Approval.

:UL Canadian Approval.

:ROHS COC

:CE Approval by UL1.

:NO CE Third Party Witness Testing.

Ambient Operating Temperature: 0°c to +60°c.

Relative Humidity : Max 90%.
