'glass epoxy'

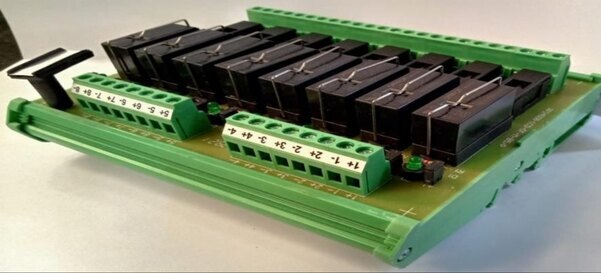

OperatingTemperature : 0 to 50 degree Celsius StorageTemperature: -10 to 60 degree Celsius Relative Humidity: 5 to 95% RH Relay ON Indication: Green Color Led Relay Protection Method: Freewheeling Diode Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Red LED indicates Fuse Blown condition Fuse Rating: 5Amp. Designation: Designation plate screwed to the PCB for Labeling purpose. Brand - BOOST Channels - 16 Usage/Application - Industrial Material PCB - FR4, Glass Epoxy Coil Voltage - 24 Volt DC Relay Type - Electro-mechanical, G2RL-1 Relay Current - 17 mA at 24 Volt DC Size - 334 mm X 128 mm X 60 mm Model Name/Number - RP24D16-1CO-OFI-M-B5-P Shape - Rectangular Country of Origin - Made in India Minimum Order Quantity - 1 Number

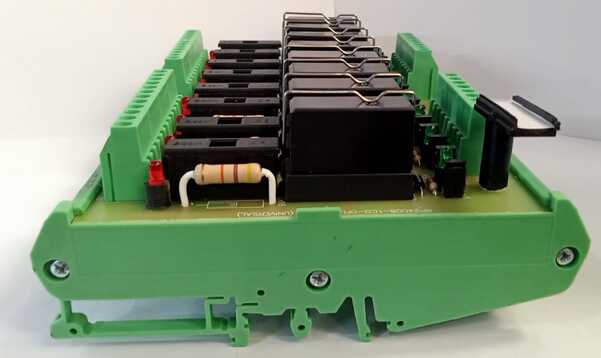

Din Rail Mounting Pluggable Relay 100,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Channels : 08 Brand : BOOST Material PCB : FR4, Glass Epoxy Usage/Application : Industrial Relay Type : MY4, Electro-mechanical. Coil Voltage : 24 V DC Ambient Operating Temperature : 0 to 50 degree Celsius. Relay Current : 36 mA @ 24 V DC / Channel Size : 360 mm X 90 mm X 83 mm Model Name/Number : RP24D08-4CO-M-B14/P Frequency : 50 Hz Input Current : 36 mA @ 24 V DC per channel Shape : Rectangular Number Of Channel : 08 Packaging Type : corrugated box Relay : MY4, Electro-mechanical, OMRON Switching Frequency : 50 Hz Temperature : 0 to 50 degree Celsius Country of Origin : Made in India Minimum Order Quantity : 1 Number

No of Channel: 1 Channel (2 input, 1 output diode module) Diode Type: Stud Mounting. No. of Diode: Two Input current per Channel: 5 Amp PIV: 1600 Volt Terminal Connection: Screw terminal, 0.25²mm to 2.5²mm conductor Terminal Markings: Output ends are brought to the top row of PCB Mounted terminals marked as K. : Input ends are brought to the top row of PCB Mounted terminals marked as A1, A2. Brand - Boost Usage/Application - Industrial Part Number- DM-R-5A-16 Size - 70 mm X 90 mm X 115 mm PCB Material - FR4, Glass Epoxy Country of Origin - Made in India Minimum Order Quantity - 1

Channels - 08 Brand - BOOST Material PCB - FR4, Glass Epoxy Usage/Application - Industrial Relay Type - MY4, Electro-mechanical. Size - 360 mm X 90 mm X 83 mm Model Name/Number - RP230A08-4CO-M-B14/P Shape - Rectangular Terminals - Screw Type Conductor size - 0.25 to 2.5 sq. mm flexible PCB Dimension - 358 mm X 72 mm Contact Type - 4 Change Over Relay ON Indication - Green color LED Input Current/ Channel - 347 mA @ 230 V AC Relay Make / Manufacturer - OMRON Operating Temperature - 0 to 50 degree Celsius Designation - Designation plate screwed to the PCB for labeling purpose Rating of Contacts - 3 Amp at 24 V DC & 220 V AC for Resistive loads Coil Resistance - 662 Ohms +-10% Storage Temperature - -10 to 60 degree Celsius Relative Humidity - 5 to 85% RH. Country of Origin - Made in India Minimum Order Quantity - 01 Number

Din Rail Mounting Pluggable Relay Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 85% RH Relay ON Indication: Green Color LED Relay Protection Method: Inbuilt Designation: Designation plate screwed to the PCB for labeling purpose Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Each Fuse in path of pole is provided with red LED indicates Fuse Blown Indication.

Din Rail Mounting Pluggable Relay Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 85% RH Relay ON Indication: Green Color LED Relay Protection Method: Inbuilt Designation: Designation plate screwed to the PCB for labeling purpose Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Each Fuse in path of pole is provided with red LED indicates Fuse Blown Indication.

Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 95% RH Relay ON Indication: Green Color Led Relay Protection Method: Freewheeling Diode Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Each Fuse in path of pole is provided with red LED indicates Fuse Blown Indication Fuse Rating: 5 Ampere Designation: Designation plate screwed to the PCB for labeling

Fiberglass reinforced panels, or FRP, are thin, flexible plastic panels made of strong polyester resin reinforced with fiberglass. They are used on walls and ceilings and can be installed directly over drywall, wood, concrete block, and many other solid surfaces. Material:- Fiber-reinforced plastic Usage/Application:- Commercial, Industrial Color:- As per Customer Requirement Size:- As per Customer Requirement Deal In:- New only

Operating Temperature : 0 to 50 degree Celsius Storage Temperature : 10 to 60 degree Celsius Relative Humidity : 5 to 95% RH Relay ON Indication : Green Color Led Relay Protection Method : Freewheeling Diode Fuse Link : A glass fuse link provided at pole of each Relay. Fuse Rating : 5 Ampere Designation : Designation plate screwed to the PCB for labeling purpose. Contact Type : 1 Change Over.
