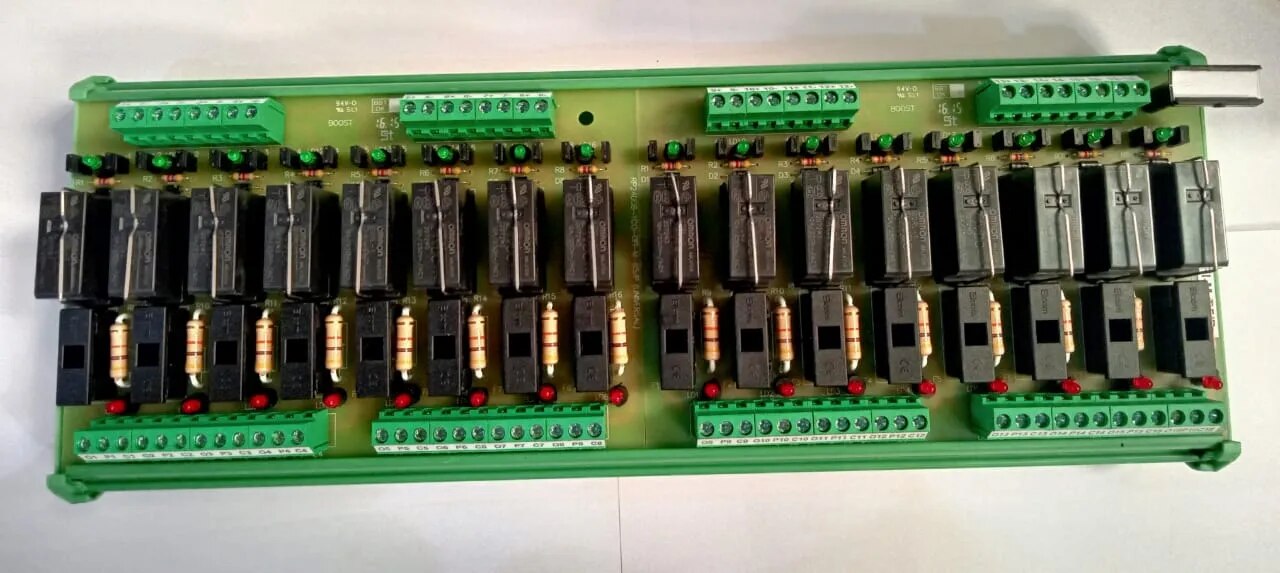

Relay Interfacing Module RP24D16-1CO-OFI-M-B5/P
In stock
Description
OperatingTemperature : 0 to 50 degree Celsius
StorageTemperature: -10 to 60 degree Celsius
Relative Humidity: 5 to 95% RH
Relay ON Indication: Green Color Led
Relay Protection Method: Freewheeling Diode
Fuse Link: A glass fuse link provided at pole of each Relay
Fuse Blow Indication: Red LED indicates Fuse Blown condition
Fuse Rating: 5Amp.
Designation: Designation plate screwed to the PCB for Labeling purpose.
Brand - BOOST
Channels - 16
Usage/Application - Industrial
Material PCB - FR4, Glass Epoxy
Coil Voltage - 24 Volt DC
Relay Type - Electro-mechanical, G2RL-1
Relay Current - 17 mA at 24 Volt DC
Size - 334 mm X 128 mm X 60 mm
Model Name/Number - RP24D16-1CO-OFI-M-B5-P
Shape - Rectangular
Country of Origin - Made in India
Minimum Order Quantity - 1 Number
Specifications
| No of channels | 16 |
|---|
