Length1.52 MTR Packaging TypeBox CableSheilded Cross section0.25 sq. mm ColorGrey JacketPVC Type of Connector D type Dust Cover MaterialPVC with Chrome Plating Country of Origin Made in India

Size- 2.5 Meter Color- Gray At First End- 15 D type female connector At Other End-9 D type male connector Type of cable- Sheilded No of core- 4 Cable Jacket- PVC Made- In India

System Cable Assembled Shielded Round Cable Connection 1 – 50 Pin D SUB Connector (1 X 40 Positions) Connection 2 – 40 Pin PLC Front Connector ( 1 X 40 Positions ) Cable Length – 2 Meter

System Cable Assembled Shielded Round Cable Connection 1 – 25 Pin D SUB Connector (1 X 20 Positions) Connection 2 – 20 Pin PLC Front Connector ( 1 X 20 Positions ) Cable Length – 2 Meter

System Cable Set Round Cable Connection 1 - Single Wires (40 Positions) (The wires are marked and fitted with ferrules) Connection 2 – 40 Pin PLC Front Connector ( 1 X 40 Positions ) Cable Length – 2 Meter

System Cable Set Round Cable Connection 1 - Single Wires (20 Positions) (The wires are marked and fitted with ferrules) Connection 2 – 20 Pin PLC Front Connector ( 1 X 20 Positions )

Construction: PCB assembly suitable for DIN Rail mounting comprising of: 1. Interface To Field Side Through: 25 no’s of screw terminals with terminal markers 1 to 25. 2. Interface To Cable Side Through: 1 no. of 25 pin male D connector, Type – 25 Pin Straight Connector: OEN 3. Designation plate screwed to the PCB for labeling purpose.

Construction: PCB assembly suitable for DIN Rail mounting comprising of: 1. Interface To Field Side Through: 50 no’s of screw terminals with terminal markers 1 to 50. 2. Interface To Cable Side Through: 1 no. of 50 pin male D connector Type – 50 Pin Straight Connector: OEN 3. Designation plate screwed to the PCB for labeling purpose.

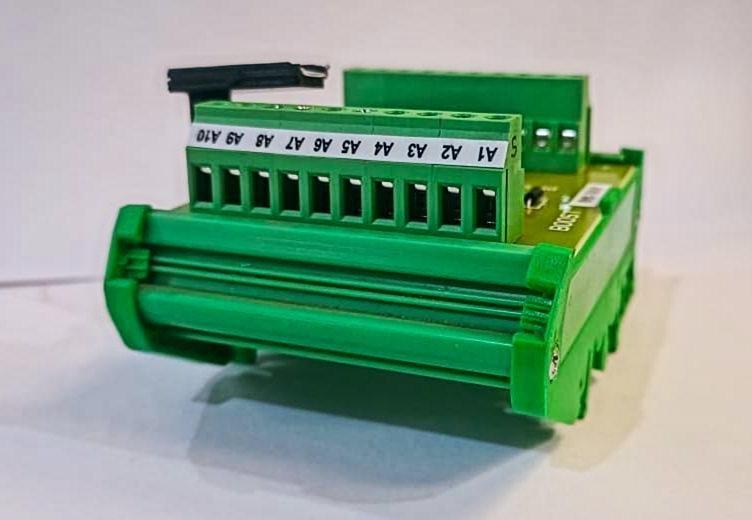

Item No:- DB-10-P Diode board with profile 1) TYPE OF DIODE : 1N 4007, Make- MIC or Equivalent. a) MAXIMUM CURRENT : 1.5 Ampere. b) PIV RATING : 1000V. 2) NO. OF CHANNEL : Ten. 3) TERMINATION’S : All terminals are screw type & suitable for 2.5 Sq. mm. cable wire. 4) PCB TRACKS : 70 Micron X 1.5mm. 5) CONNECTORS : Phoenix make PCB connector. Type: MKDS 3 or Equivalent. 6) MARKING : The Diode terminals are brought to the PCB mountable terminals marked serially As A1 to A10 & K1 to K10. 7) DESIGNATION : Designation plate screwed to the PCB for labeling purpose. 8) PACKING : Each diode board should be individually packed to avoid transit damages. 9) TESTING : Visual inspection test - 100 % Dimensional check - 100 % Terminal numbering - 100 %
