Diode Board DB-10-P

Item No:- DB-10-P

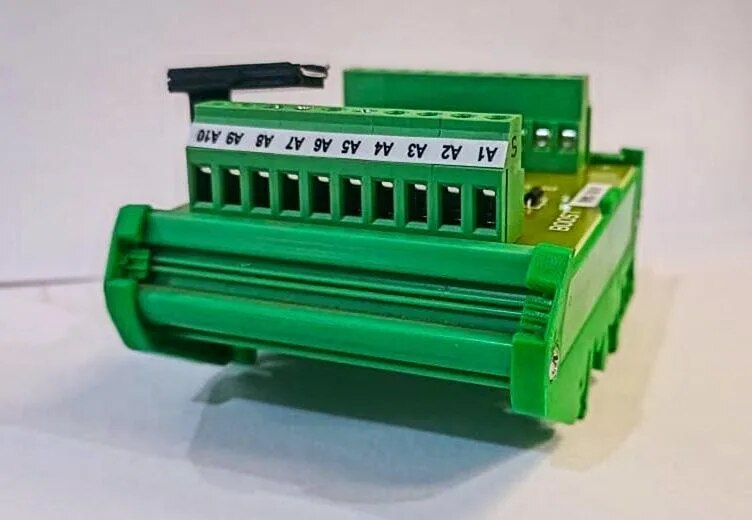

Diode board with profile

1) TYPE OF DIODE : 1N 4007,

Make- MIC or Equivalent.

a) MAXIMUM CURRENT : 1.5 Ampere.

b) PIV RATING : 1000V.

2) NO. OF CHANNEL : Ten.

3) TERMINATION’S : All terminals are screw type & suitable for 2.5 Sq. mm. cable wire.

4) PCB TRACKS : 70 Micron X 1.5mm.

5) CONNECTORS : Phoenix make PCB connector. Type: MKDS 3 or Equivalent.

6) MARKING : The Diode terminals are brought to the PCB mountable terminals marked serially As A1 to A10 & K1 to K10.

7) DESIGNATION : Designation plate screwed to the PCB for labeling purpose.

8) PACKING : Each diode board should be individually packed to avoid transit damages.

9) TESTING :

Visual inspection test - 100 %

Dimensional check - 100 %

Terminal numbering - 100 %
