Din Rail Mounting
Solderable Relay
18,000 Mechanical operations minimum.
1,800 Electrical operations minimum.
Operating Temperature : 0 to 50 degree Celsius
Storage Temperature : -10 to 60 degree Celsius
Relative Humidity : 5 to 85% RH
Relay ON Indication : Green Color LED
Relay Protection Method : Freewheeling Diode
Designation : Designation plate screwed to the PCB for labeling purpose
No of Relay Channel : 4 Channel
Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load.
Coil Resistance : 360 Ohms +/- 10%.
Coil Voltage : 12V DC
Relay Socket : 5 A, 250 V AC
Input Current/ Channel : 33 mA per channel
PCB Dimension : 80 mm X 72 mm.
Mechanical Dimensions : 83 mm X 90 mm X 66 mm
Terminals : Screw type
Conductor size : 0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer: OMRON
Relay Type: G2RL-1, Electro-mechanical
Contact Type: 1 Change Over
Packaging Details - In corrugated box with bubble sheet.
| Coil : 12V DC, 1 C/O Contact |

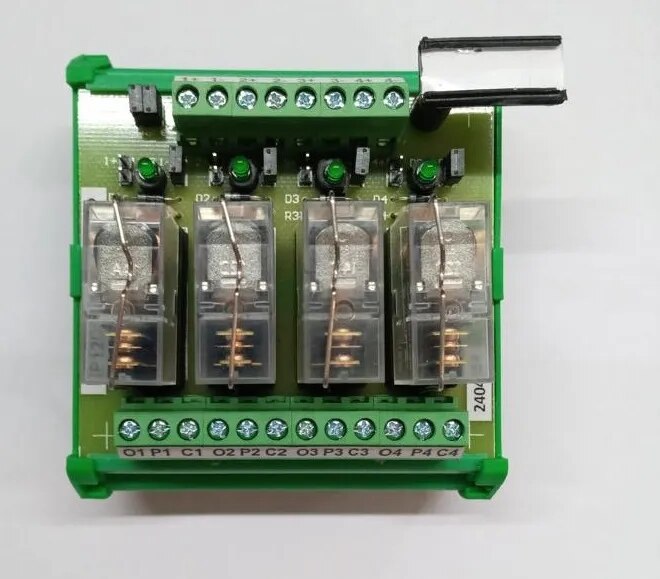

4 Channel relay Module |
