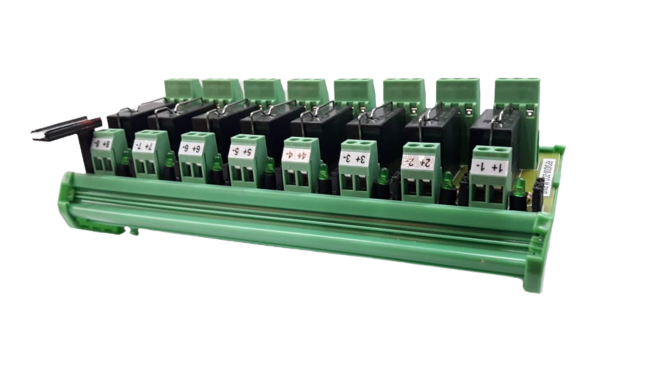

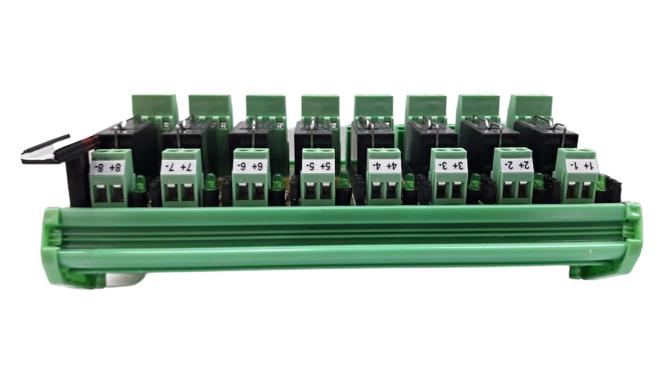

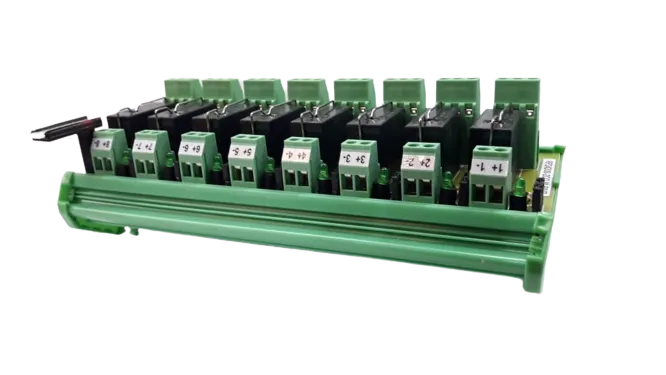

Relay Interfacing Module RP24D08-2CO-M-B8/P
In stock
Description
Din Rail Mounting
Plug-gable Relay
20,000,000 Mechanical operations minimum.
50,000 Electrical operations minimum.
Operating Temperature: 0 to 50 degree Celsius.
Storage Temperature: -10 to 60 degree Celsius.
Relative Humidity: 5 to 85% RH
Relay ON Indication: Green color LED.
Relay Protection Method: Freewheeling Diode.
Designation: Designation plate screwed to the PCB for Labeling purpose.
Specifications
| No of Relay Channel | 08 |
|---|---|
| Contact Type | 2 Change over |
| Contact Type | 2 Change over |
| Conductor size | 0.25 to 2.5 sq.mm flexible |
| Relay Type | G2RL-2, Electro-mechanical |
| Contact Type | 2 Change over |
| elay Make | OMRON |
| Contact Type | 2 Change over |
| Terminals | Screw type |
| Contact Type | 2 Change over |
| Contact Type | 2 Change over |
| Mechanical Dimensions | 182 mm X 90 mm X 68 mm |
| Rating of Contacts | 5 Amp at 30 V DC & 250 V AC for Resistive load. |
| Input Current/ Channel | 16 mA @ 24 V DC |
| elay Socket | Rating- 5 A, 250 V AC |
| Coil Voltage | 24 V DC |
| Coil Resistance | 1440 Ohms +/-10% |
