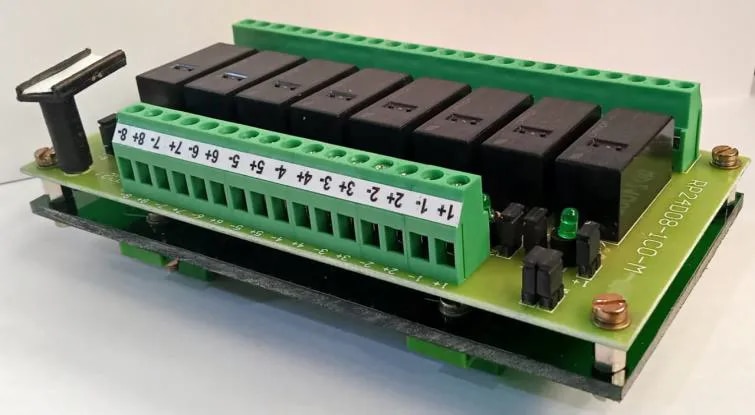

Relay Interfacing Module RP24D08-1CO-M
In stock
Description
Din Rail Mounting
Solderable Relay
20,000,000 Mechanical operations minimum.
30,000 Electrical operations minimum.
Operating Temperature: 0 to 50 degree Celsius
Storage Temperature: -10 to 60 degree Celsius
Relative Humidity: 5 to 85% RH
Relay ON Indication: Green Color LED
Relay Protection Method: Freewheeling Diode
Designation: Designation plate screwed to the PCB for labeling purpose.
Specifications
| No of Relay Channel | 8 Channels |
|---|---|
| Conductor size | 0.25 -2.5 sq.mm flexible |
| Relay Type | G2RL-1, Electro-mechanical |
| Mechanical Dimensions | 144 mm X 72 mm X 50 mm |
| Contact Type | 01 Change Over |
| Coil Voltage | 24 V DC |
| Relay Make / Manufacturer | OMRON |
| Terminals | Screw Type |
| Input Current/ Channel | 17 mA per channel |
| Coil Resistance | 1,440 Ohms + 10% |
